Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors.
  2. Install the switch bank into the IP by pushing in on the switch bank.

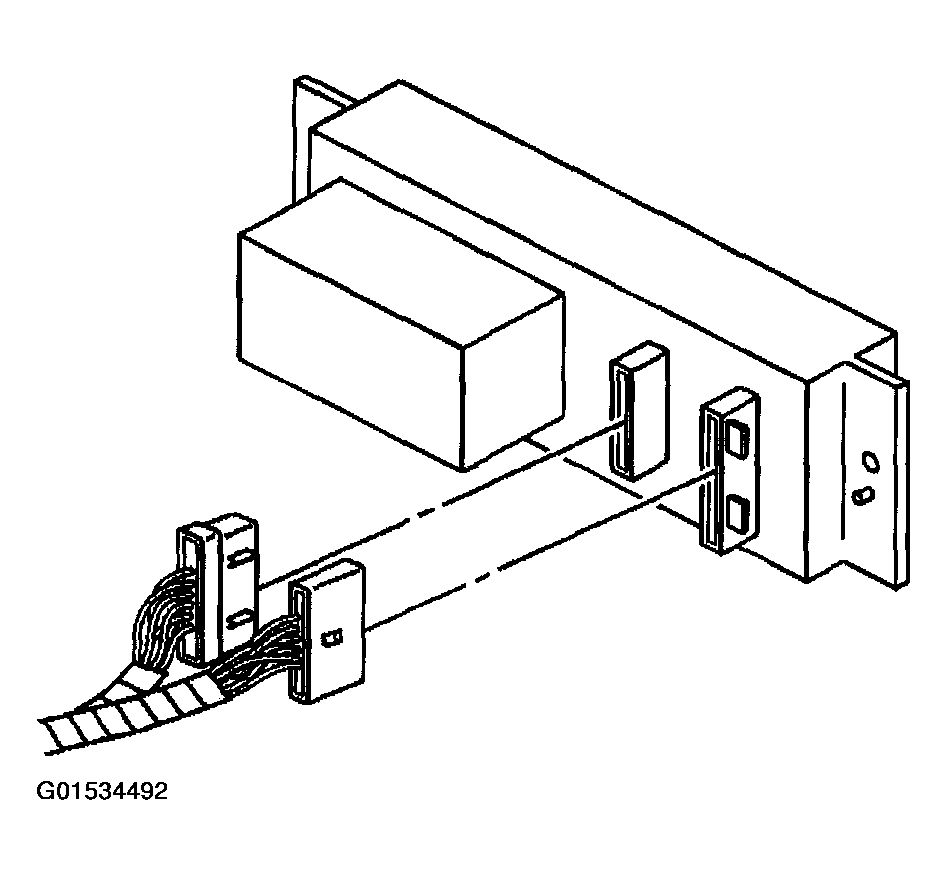

    Fig 1: Connecting Electrical Connectors
    G01534492Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the bolts/screws to secure the switch bank to the instrument panel.

    Tighten

    Tighten the bolts/screws to 2.5 N.m (22 lb in).

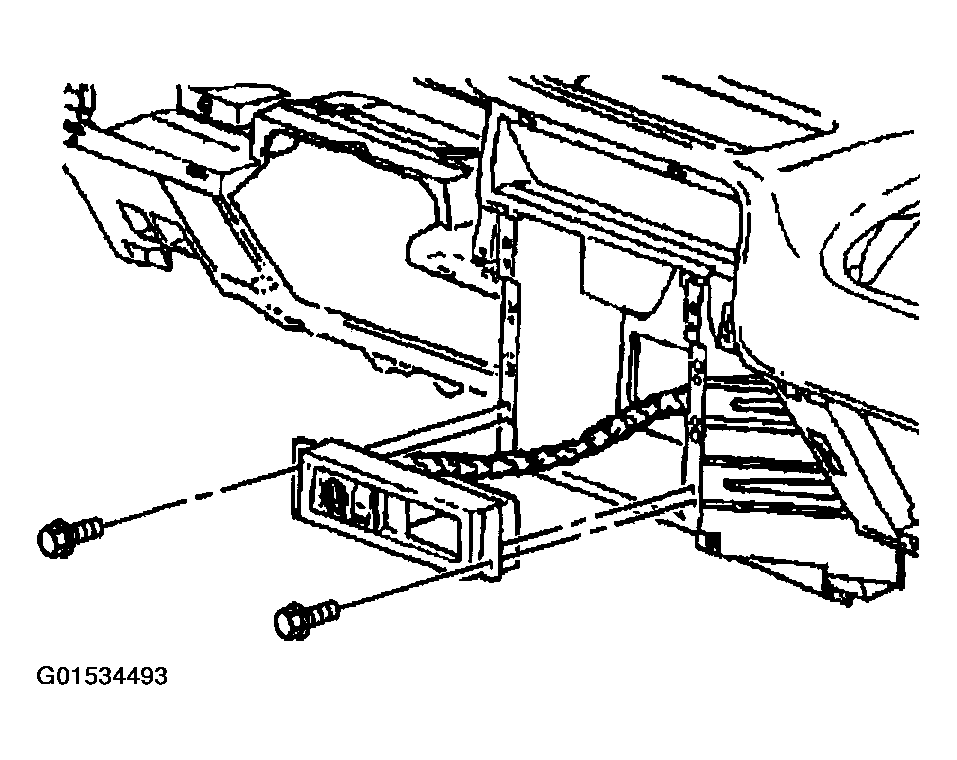

    Fig 2: Installing Switch Bank To Instrument Panel
    G01534493Courtesy of GENERAL MOTORS CORP.
  4. Install the IP accessory trim plate. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER  .
    Fig 3: Identifying Instrument Panel
    G01534494Courtesy of GENERAL MOTORS CORP.
