Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT  .
  2. Pull on the wiring harness (2) in order to release the retainers.
  3. Remove the wiring harness (2).

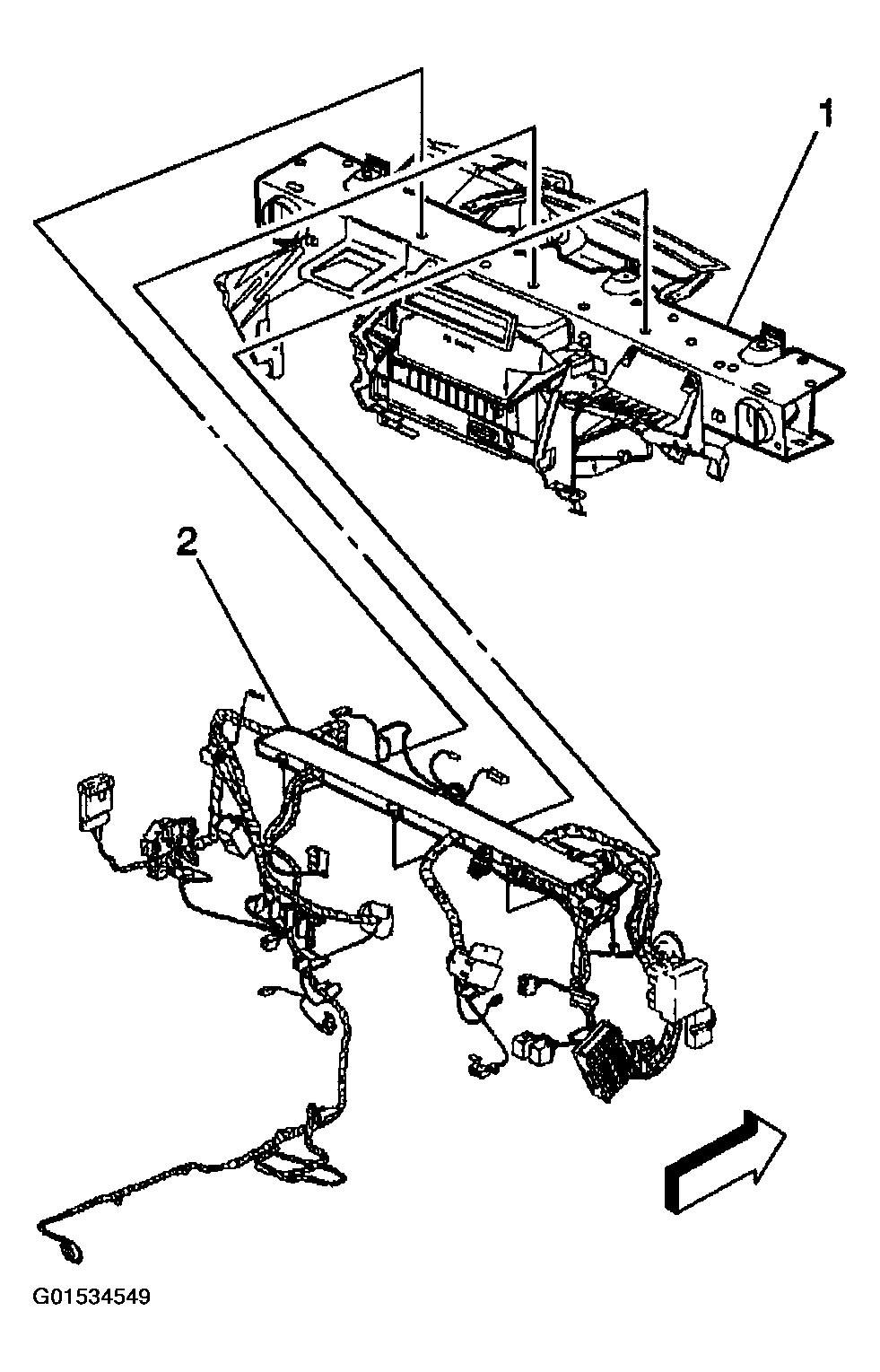

    Fig 1: Removing Instrument Panel Wiring Harness
    G01534549Courtesy of GENERAL MOTORS CORP.
