Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the wiring harness retainers.
  2. Push in on the wiring harness (2) until the harness is secure.

    Important:  Ensure that the electrical connectors are routed correctly through the instrument panel.

  3. Install the instrument panel. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT  .

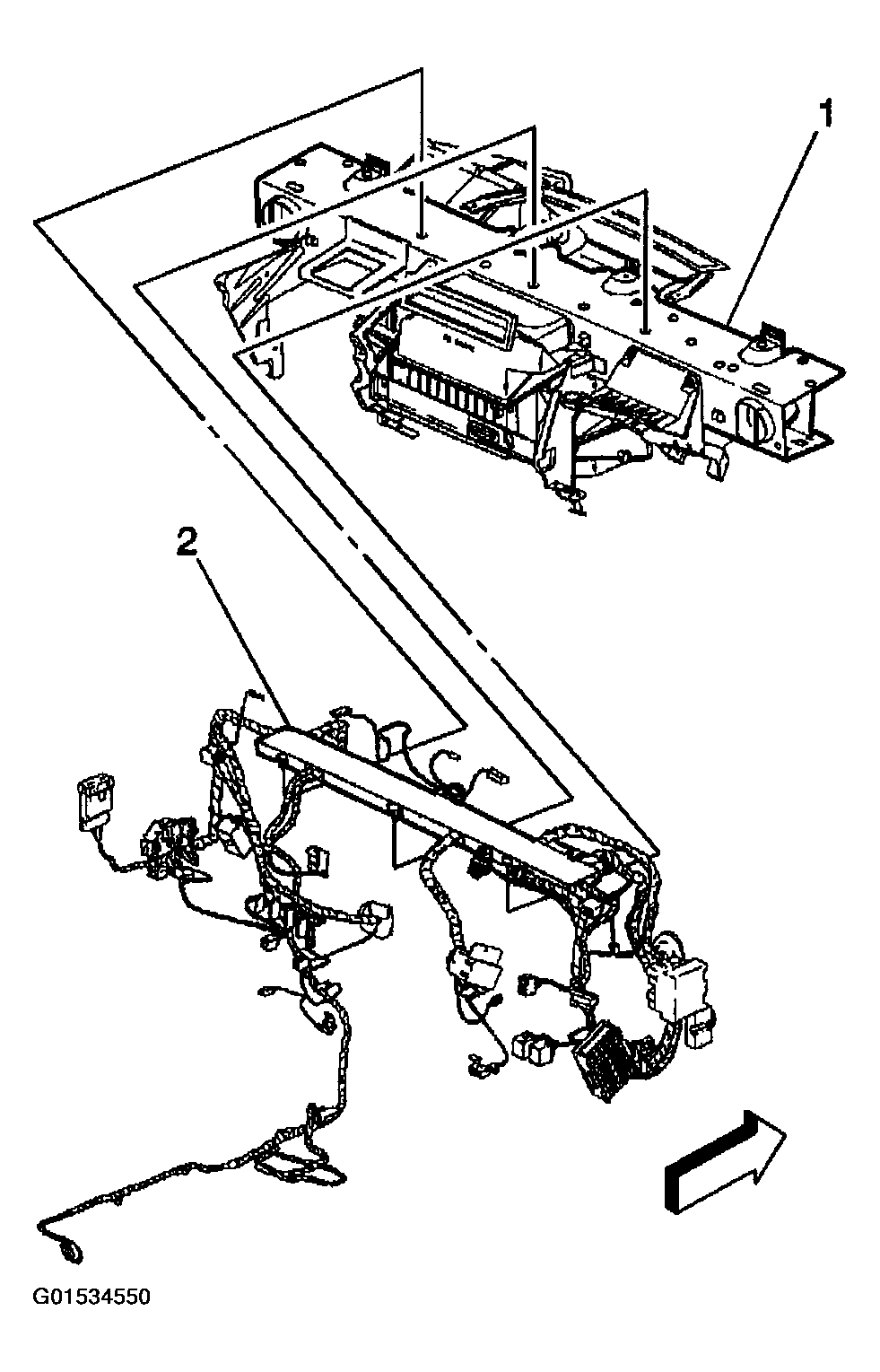

    Fig 1: Installing Instrument Panel Wiring Harness
    G01534550Courtesy of GENERAL MOTORS CORP.
