Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console. Refer to CONSOLE REPLACEMENT -- OVERHEAD (SINGLE) or CONSOLE REPLACEMENT -- OVERHEAD (DUAL) or CONSOLE REPLACEMENT -- OVERHEAD (CF5) in Interior Trim.
  2. Remove the driver information display to overhead console screws.
  3. Remove the driver information display from the overhead console.

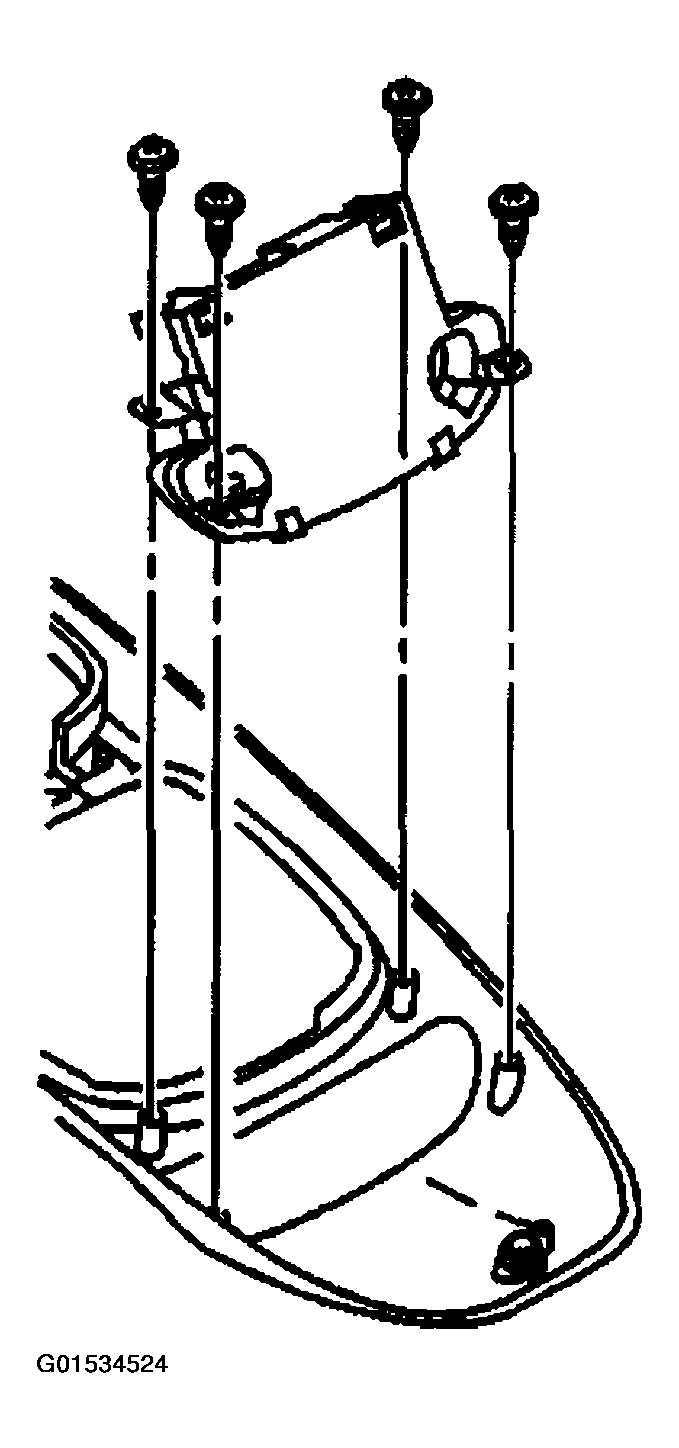

    Fig 1: Removing Driver Information Display From Overhead Console
    G01534524Courtesy of GENERAL MOTORS CORP.
