Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the driver information display to overhead console.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the driver information display to overhead console screws.

    Tighten

    Tighten the screws to 1 N.m (9 lb in).

  3. Install the overhead console. Refer to CONSOLE REPLACEMENT -- OVERHEAD (SINGLE) or CONSOLE REPLACEMENT -- OVERHEAD (DUAL) or CONSOLE REPLACEMENT -- OVERHEAD (CF5) in Interior Trim.
  4. Calibrate the compass. Refer to ELECTRONIC COMPASS CALIBRATION   .

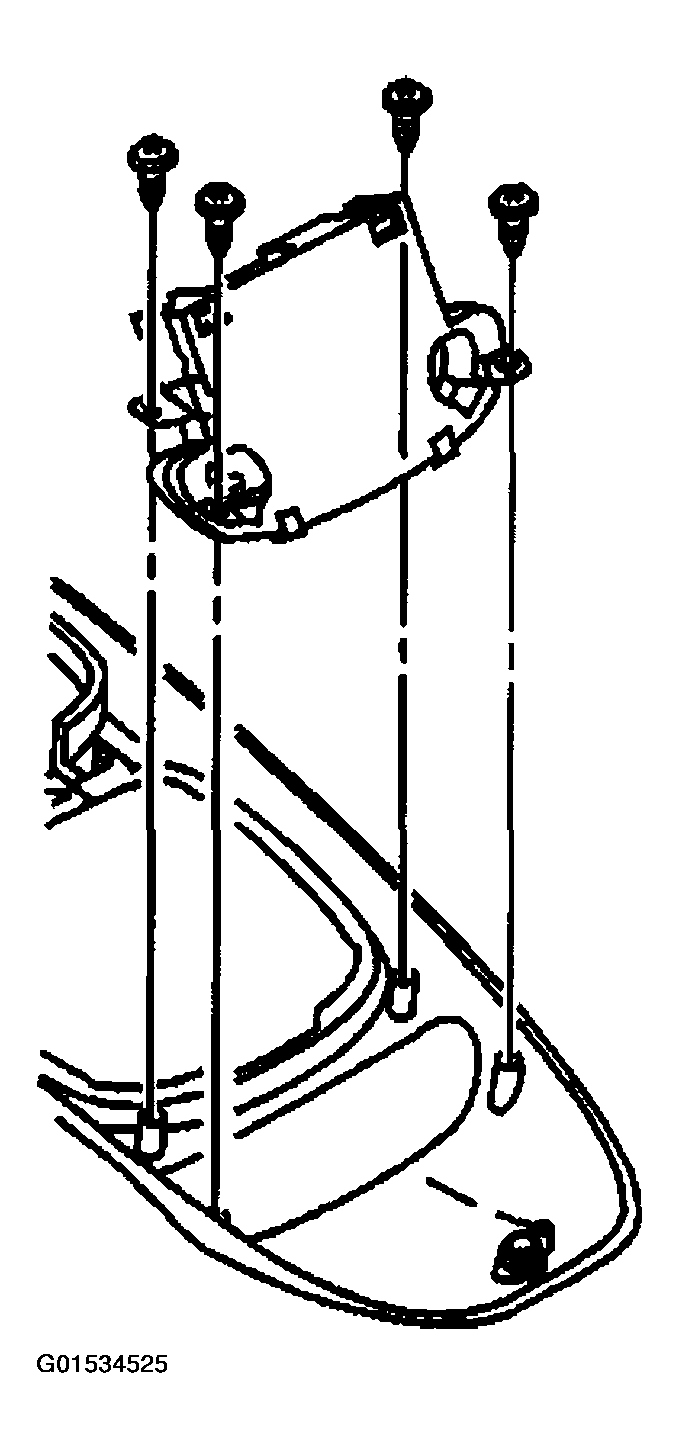

    Fig 1: Installing Driver Information Display To Overhead Console
    G01534525Courtesy of GENERAL MOTORS CORP.
