Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor console bezel. Refer to POWER ACCESSORY PORT REPLACE - FRONT FLOOR CONSOLE  .
  2. Remove the DVD Player. Refer to DVD PLAYER REPLACEMENT in Entertainment.
  3. Remove the mounting screws from the center console.

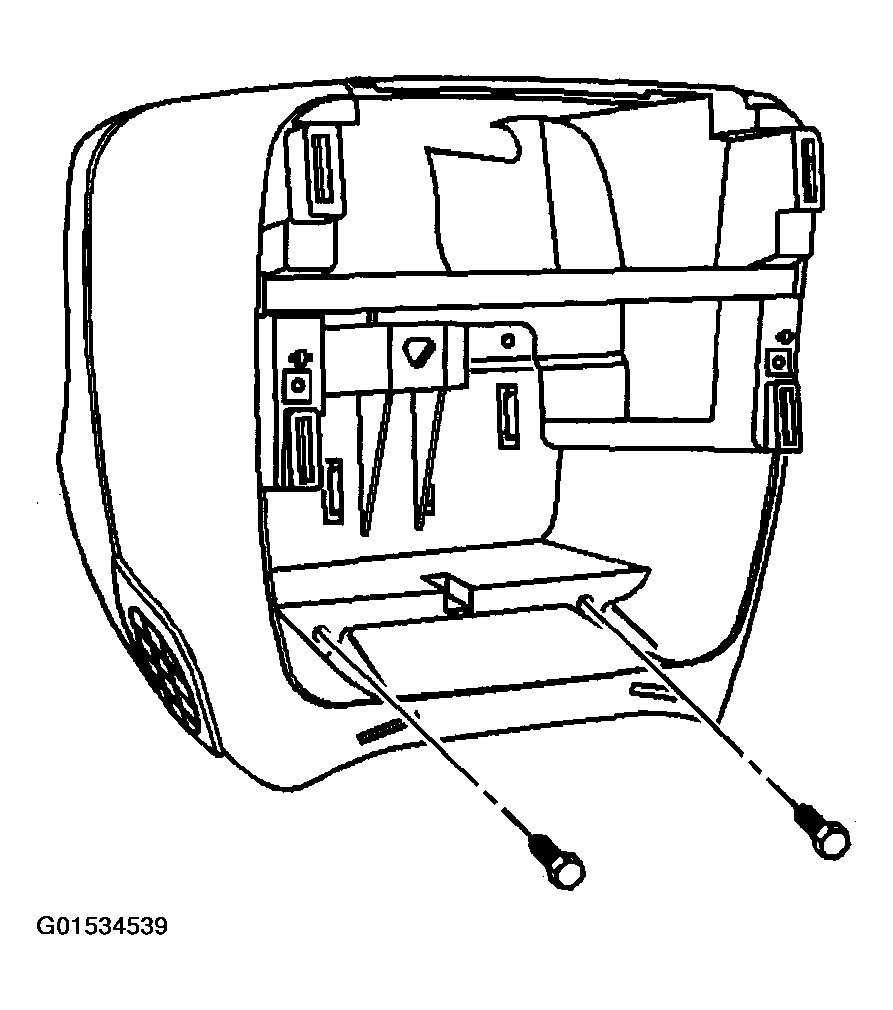

    Fig 1: Removing Front Floor Center Console Mounting Screws
    G01534539Courtesy of GENERAL MOTORS CORP.
  4. Slide the floor console out from the floor console bracket.

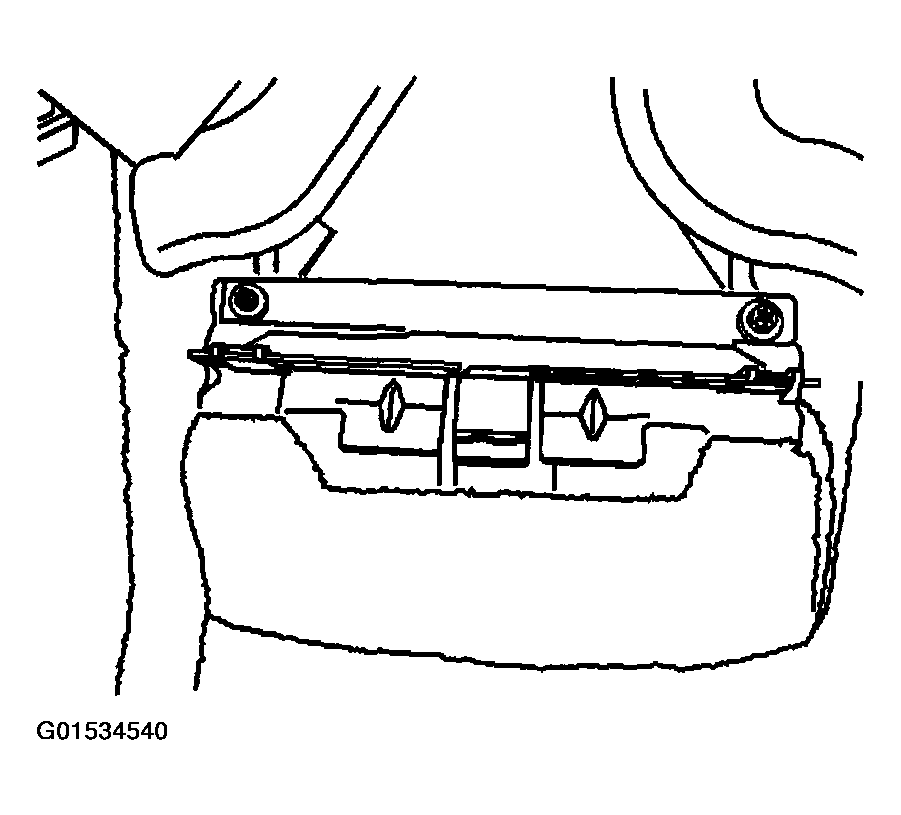

    Fig 2: Sliding Floor Console Out From Floor Console Bracket
    G01534540Courtesy of GENERAL MOTORS CORP.
