Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the floor console into place and align the console with the floor console bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws to the floor console bracket.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the DVD player. Refer to DVD PLAYER REPLACEMENT in Entertainment.
  4. Install the bezel to the floor console. Refer to POWER ACCESSORY PORT REPLACE - FRONT FLOOR CONSOLE  .

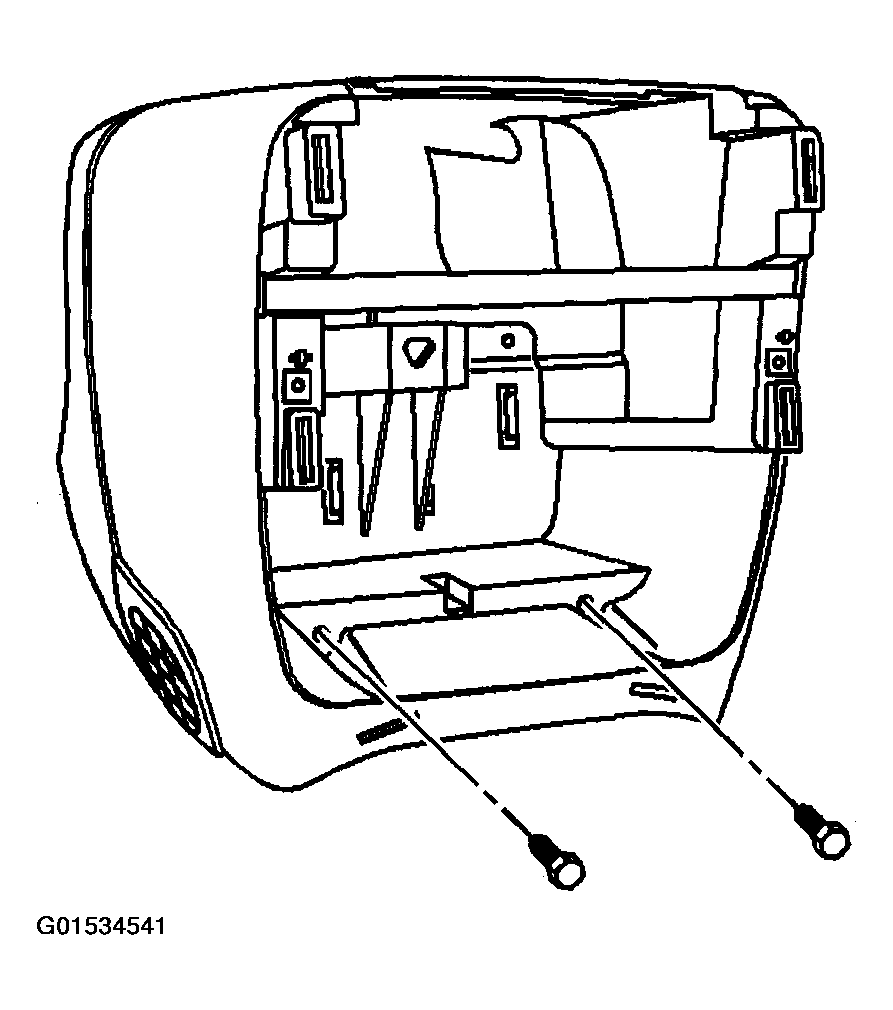

    Fig 1: Installing Front Floor Center Console
    G01534541Courtesy of GENERAL MOTORS CORP.
