Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the IP compartment door.
  2. Remove the screws (1) that mount the IP compartment to the instrument panel.
  3. Pull out the clips in order to remove the IP compartment from the instrument panel.
  4. The clips may be difficult to release.
  5. Disconnect the electrical connectors.

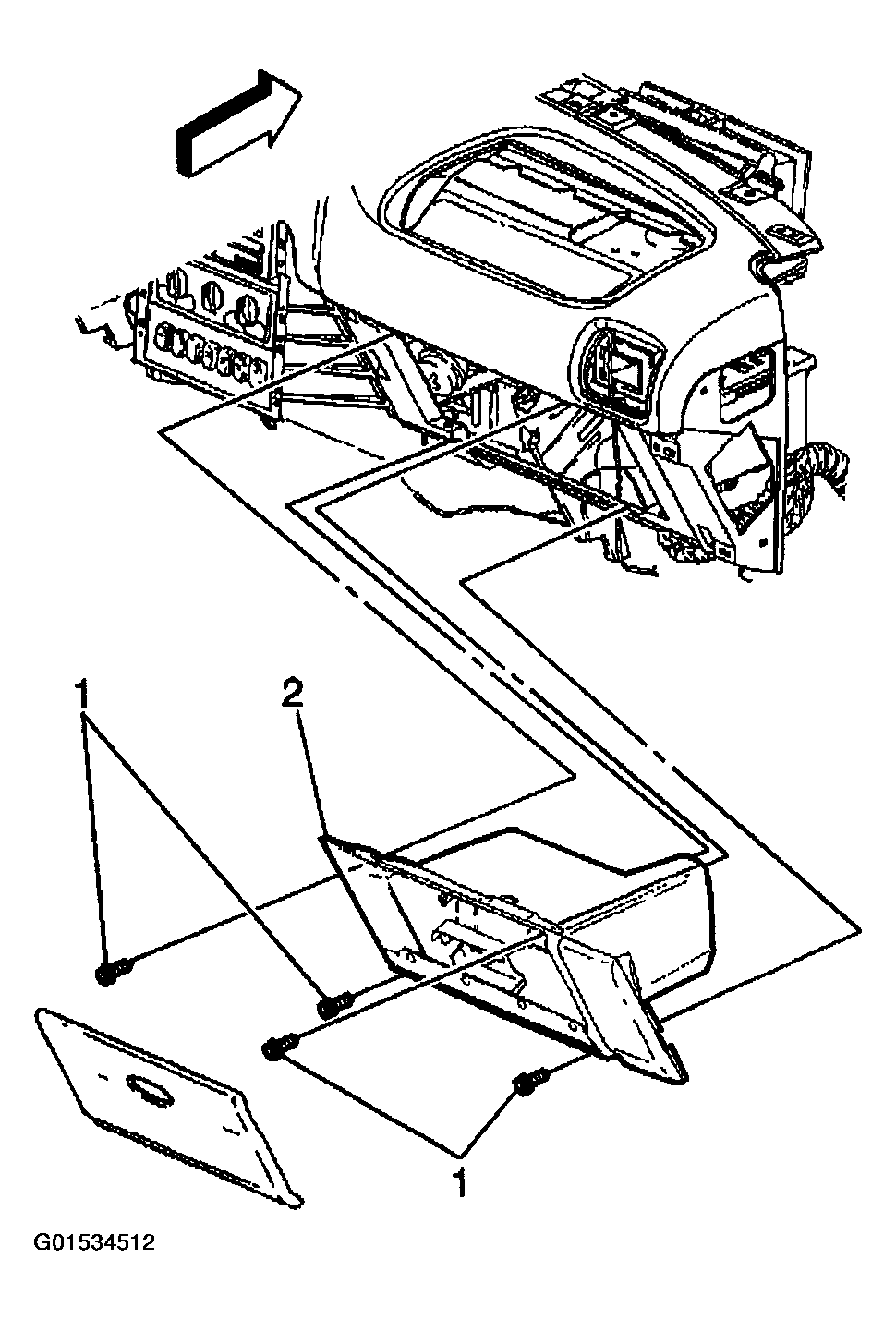

    Fig 1: Removing Instrument Panel Compartment From Instrument Panel
    G01534512Courtesy of GENERAL MOTORS CORP.
