Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Remove the push-in retainers from the IP insulator to instrument panel.

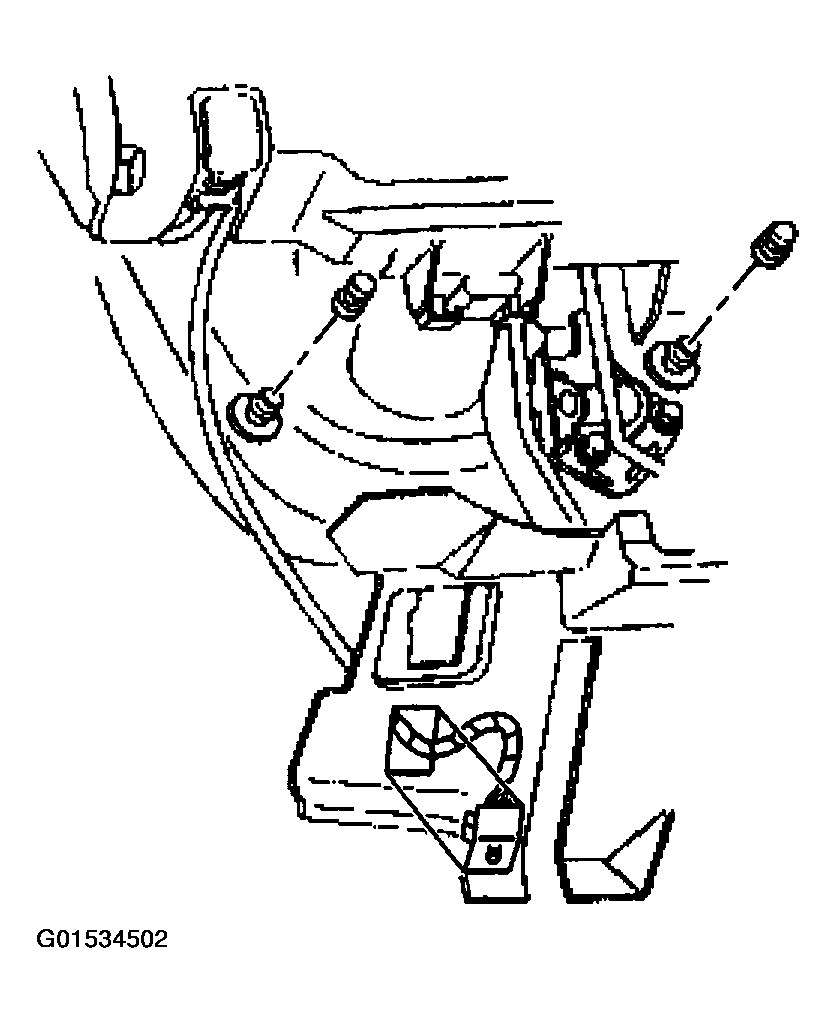

Remove the press-on retainers from the IP insulator to dash mat.

Fig 1: Removing Press-On Retainers From IP Insulator To Dash Mat (Left)
Courtesy of GENERAL MOTORS CORP.
Unsnap the IP courtesy lamp from the IP insulator.

Fig 2: Removing IP Courtesy Lamp From IP Insulator (Left)
Courtesy of GENERAL MOTORS CORP.
Remove the IP insulator from the instrument panel.

Fig 3: Removing IP Insulator From Instrument Panel (Left)
Courtesy of GENERAL MOTORS CORP.
