Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Snap the IP courtesy lamp into the IP insulator.

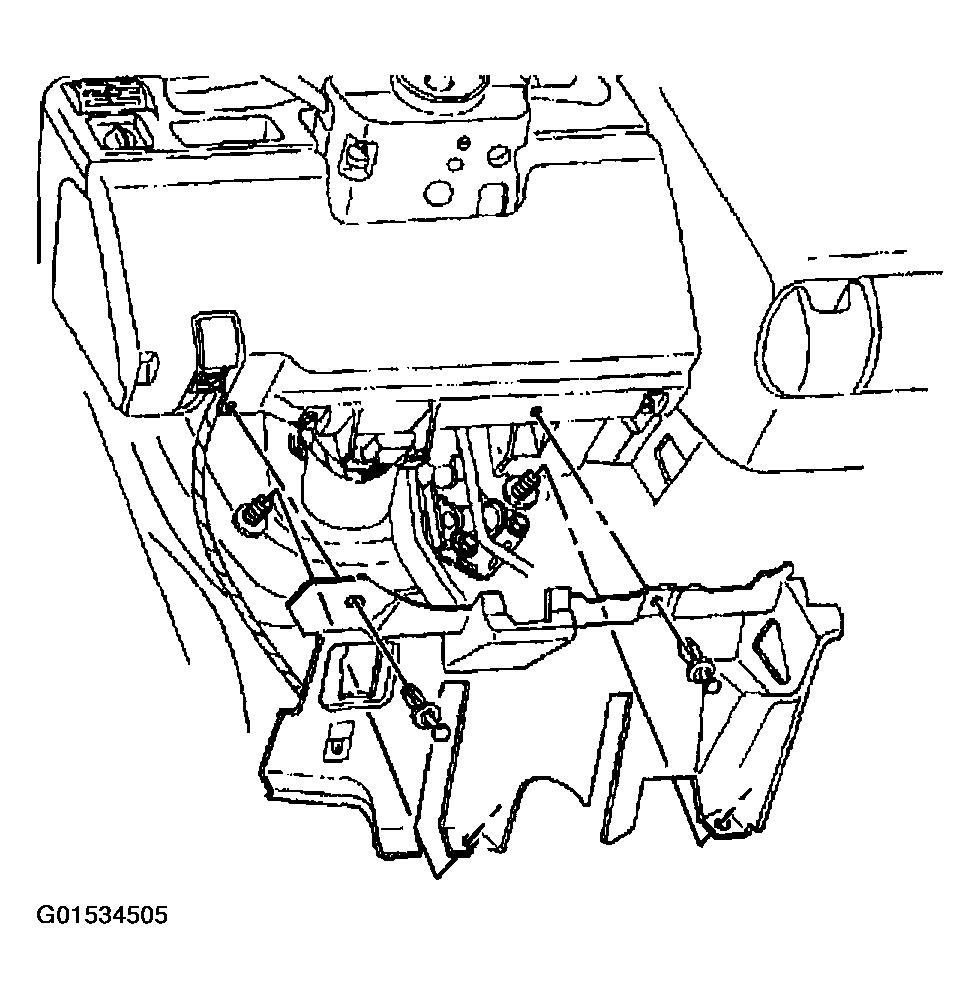

Fig 1: Installing IP Courtesy Lamp Into IP Insulator (Left)
Courtesy of GENERAL MOTORS CORP.
Position the IP insulator to the instrument panel.
Install the push-in retainers to the IP insulator to instrument panel.
Install the press-on retainers to the IP insulator to dash mat.

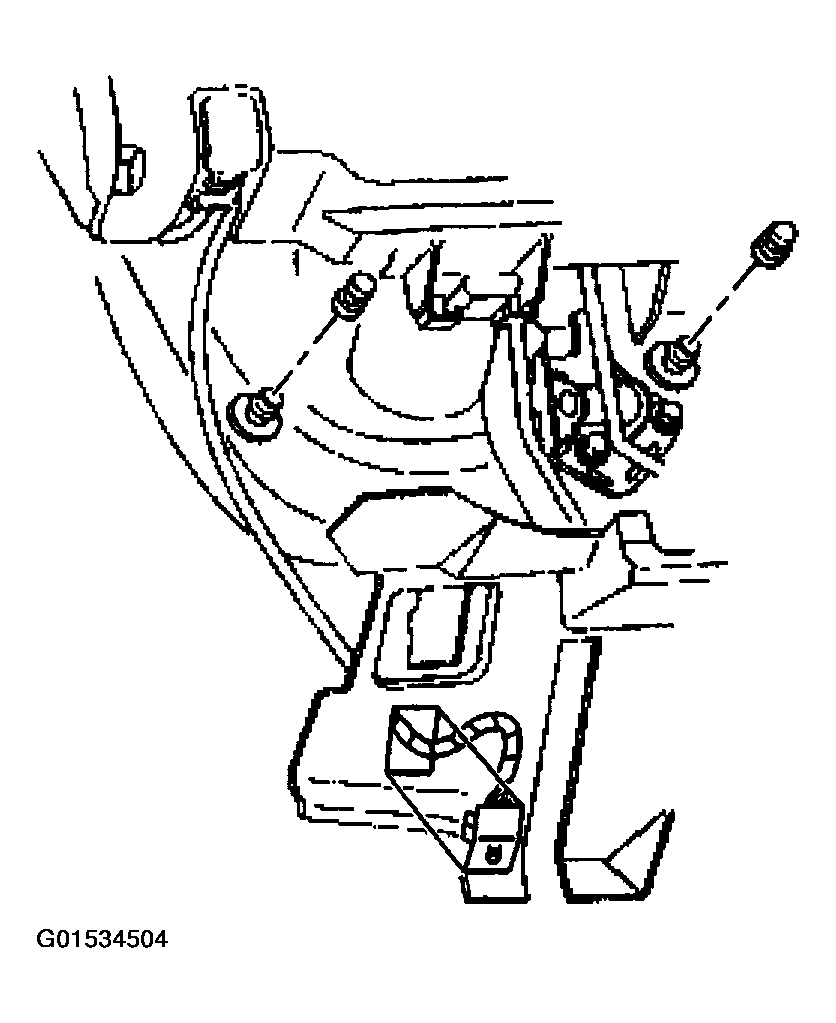

Fig 2: Installing Press-On Retainers To IP Insulator To Dash Mat (Left)
Courtesy of GENERAL MOTORS CORP.
