Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bezel. Refer to POWER ACCESSORY PORT REPLACE - FRONT FLOOR CONSOLE  .
  2. Remove the DVD Player. Refer to DVD PLAYER REPLACEMENT in Entertainment.
  3. Remove the center console screws.
  4. Slide the floor console out from the floor console bracket assembly.
    Fig 1: Removing Center Console Screws
    G01534542Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolts from the floor console bracket.

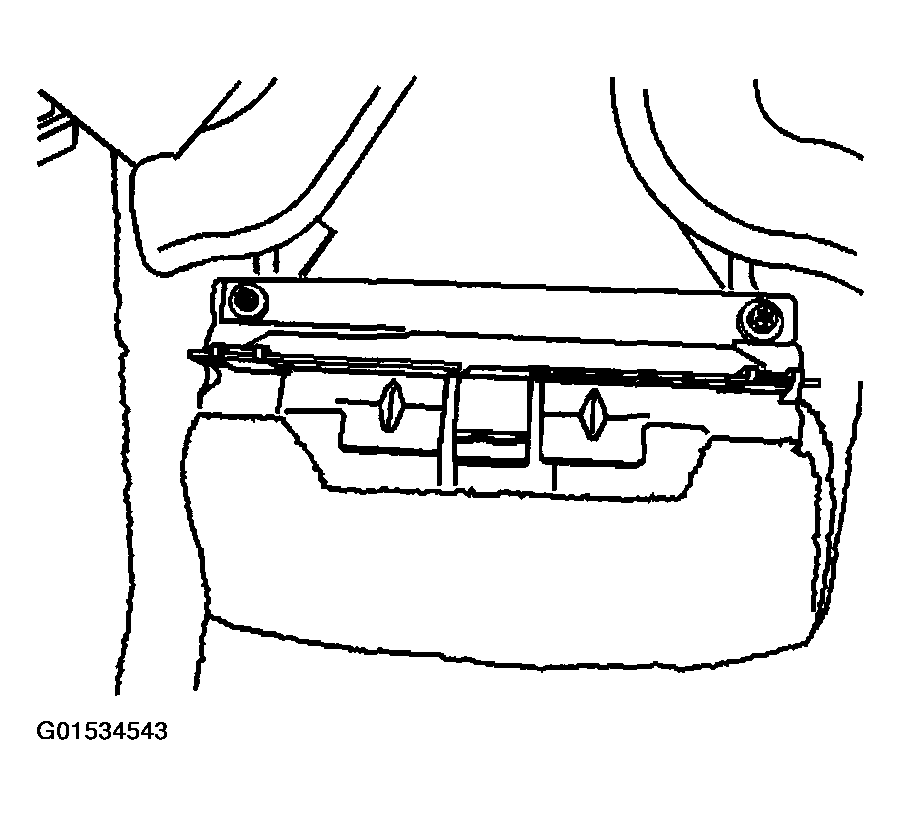

    Fig 2: Removing Floor Console Bracket Bolts
    G01534543Courtesy of GENERAL MOTORS CORP.
