Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the bolts to the floor console bracket.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

    Fig 1: Installing Bolts To Floor Console Bracket
    G01534544Courtesy of GENERAL MOTORS CORP.
  2. Slide the floor console and install the screws to the floor console bracket assembly.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the DVD player. Refer to DVD PLAYER REPLACEMENT in Entertainment.
  4. Install the bezel to the floor console. Refer to POWER ACCESSORY PORT REPLACE - FRONT FLOOR CONSOLE  .

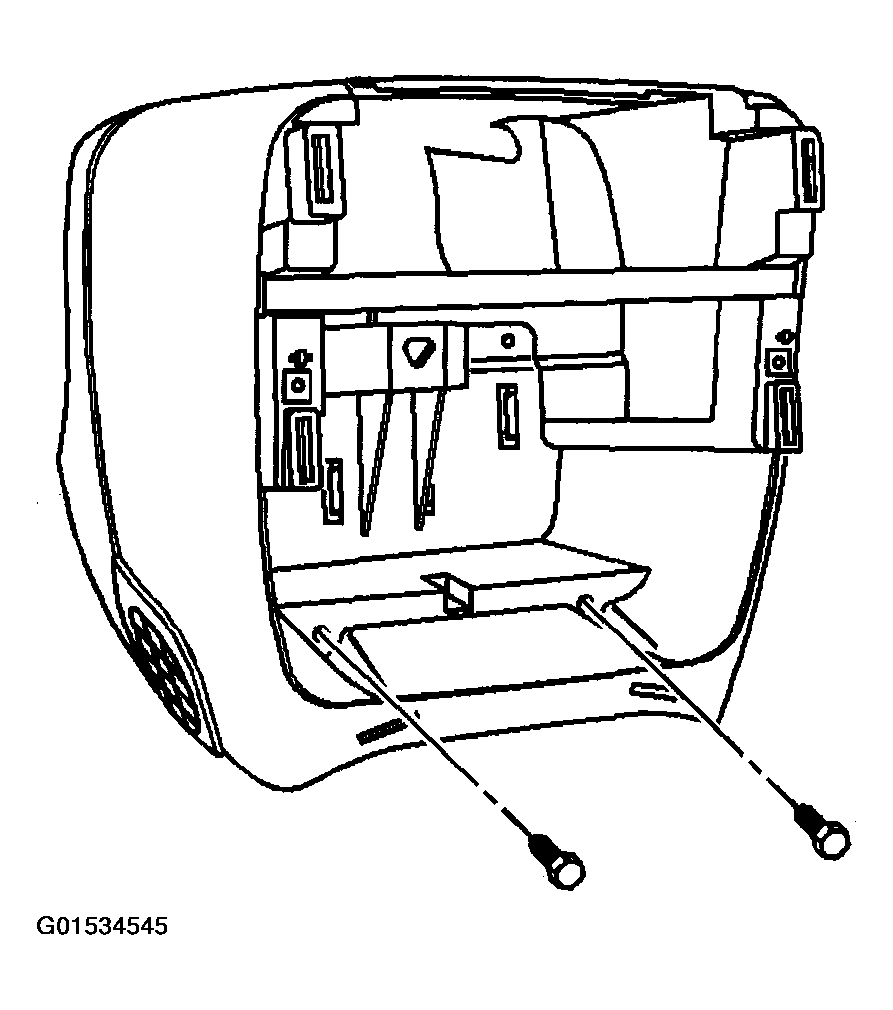

    Fig 2: Installing Screws To Floor Console Bracket Assembly And Tightening
    G01534545Courtesy of GENERAL MOTORS CORP.
