Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY  .
  2. Push up on the ashtray guide tension spring on both sides of the ashtray.
  3. Push up on the metal housing center ashtray retaining tab.
  4. Pull the ashtray out of the IP accessory trim plate.
  5. Disconnect the electrical connectors.
  6. Remove the ashtray from the IP accessory trim plate.

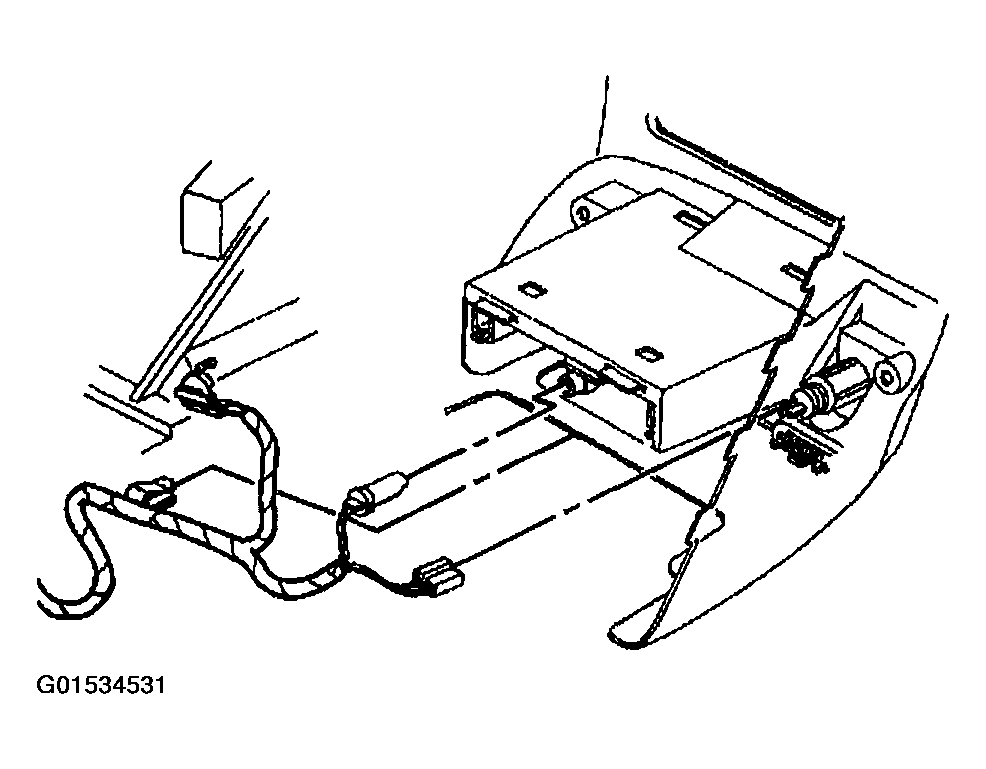

    Fig 1: Removing Ashtray From Instrument Panel Accessory Trim Plate
    G01534531Courtesy of GENERAL MOTORS CORP.
