Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the outside ambient air temperature sensor to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the outside ambient air temperature sensor to radiator (1) support bolt.

    Tighten

    Tighten the bolt to 2 N.m (18 lb in).

  3. Connect the electrical connector (2) to the outside ambient air temperature sensor.

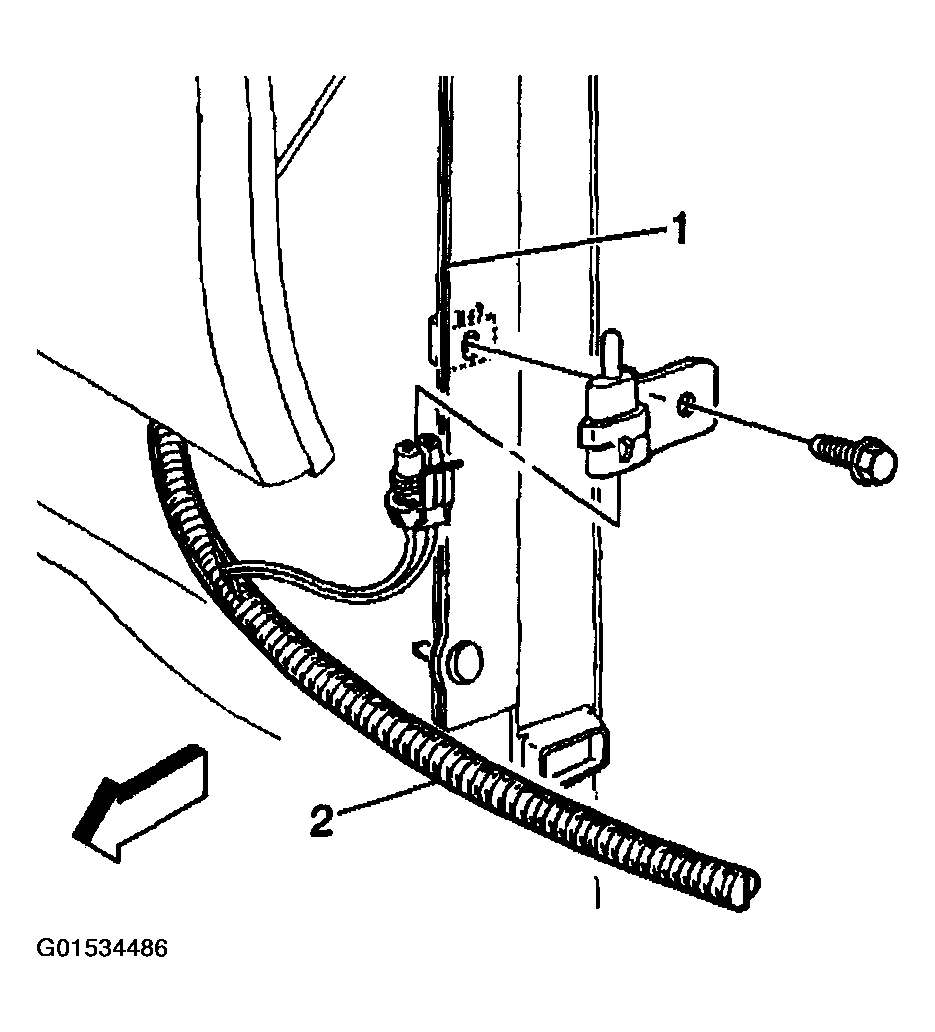

    Fig 1: Installing Outside Ambient Air Temperature Sensor To Radiator Support (Oldsmobile)
    G01534486Courtesy of GENERAL MOTORS CORP.
