Scan Tool Data List

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The scan tool data list(s) contain all the instrument panel, gages, and console related parameters that are available on the scan tool. The parameters in the list are arranged in order, as they appears on the scan tool. The data list column indicates the location of the parameter within the scan tool menu selections.

Use the scan tool data list(s) as directed by a diagnostic table or in order to supplement the diagnostic procedures. Begin all of the diagnostic procedures with DIAGNOSTIC SYSTEM CHECK - INSTRUMENT CLUSTER for IPC, DIAGNOSTIC SYSTEM CHECK - DRIVER INFORMATION SYSTEMS for DIC, or SYMPTOMS - INSTRUMENT PANEL, GAGES AND CONSOLE for audible warnings.

Use the scan tool data list(s) only after the following is determined:

There is no published DTC procedure nor published symptom procedure for the customer concern.
The DTC or symptom procedure indicated by the diagnostic system check does not resolve the customer concern.

The typical data values are obtained from a properly operating vehicle under the conditions specified in the first row of the scan tool data list table. Comparison of the parameter values from the suspect vehicle with the typical data values may reveal the source of the customer concern.

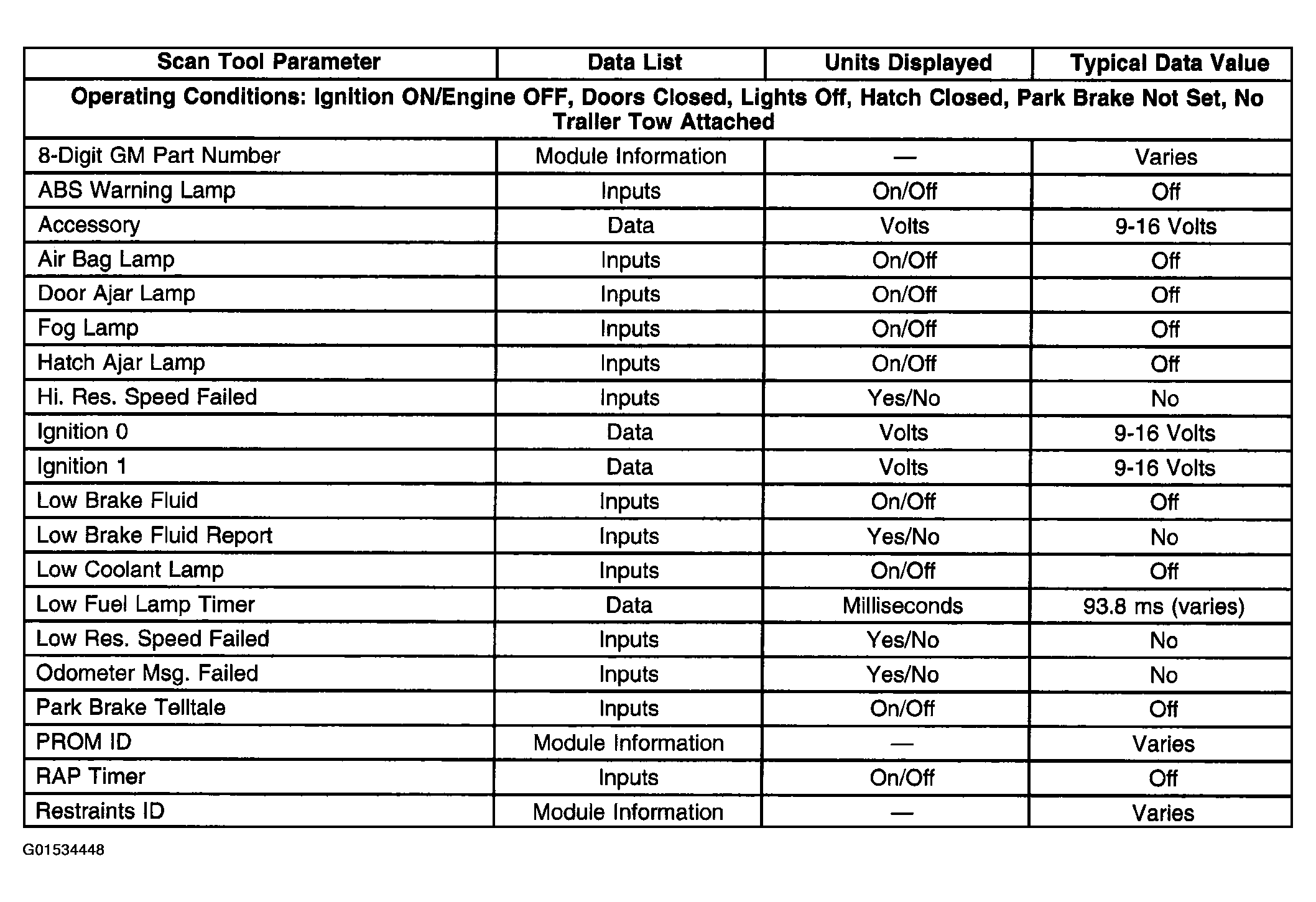

Fig 1: Instrument Panel Control Scan Tool Data Chart (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

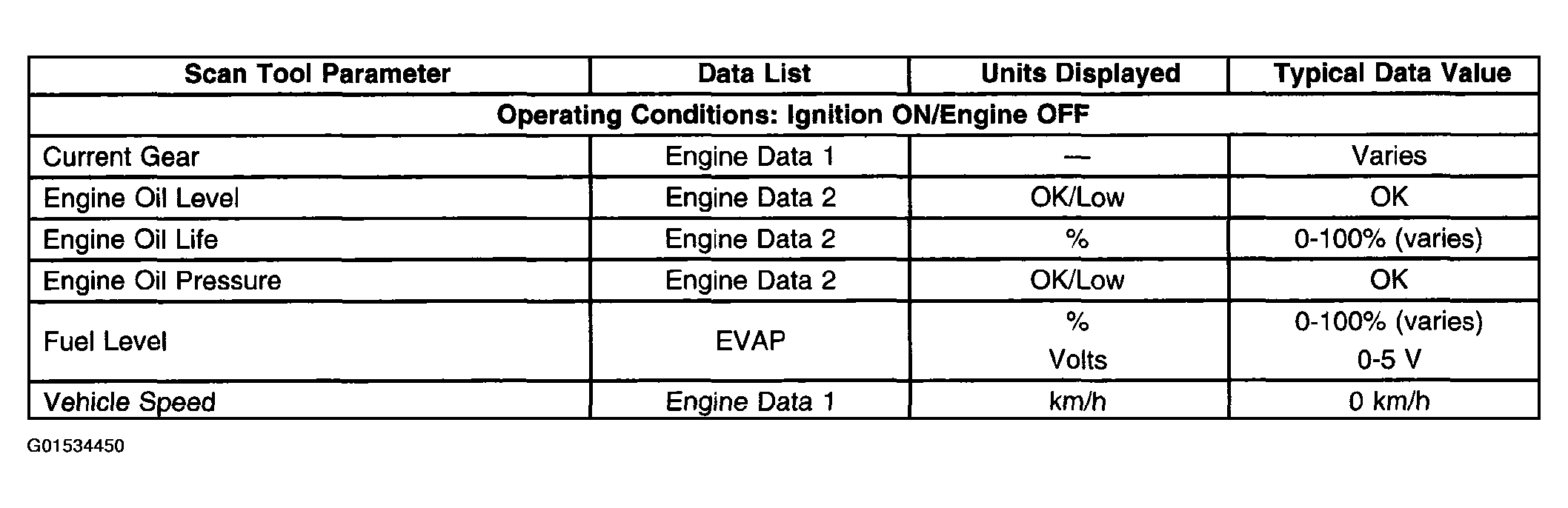

Fig 2: Instrument Panel Control Scan Tool Data Chart (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Power Control Module Scan Tool Data Chart

Courtesy of GENERAL MOTORS CORP.
