Test Description

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) in the diagnostic table.

This step tests for a high resistance in the signal circuit and the sensor ground circuit of the fuel level sensor.

DTCs will set in the PCM when you perform this diagnostic table.

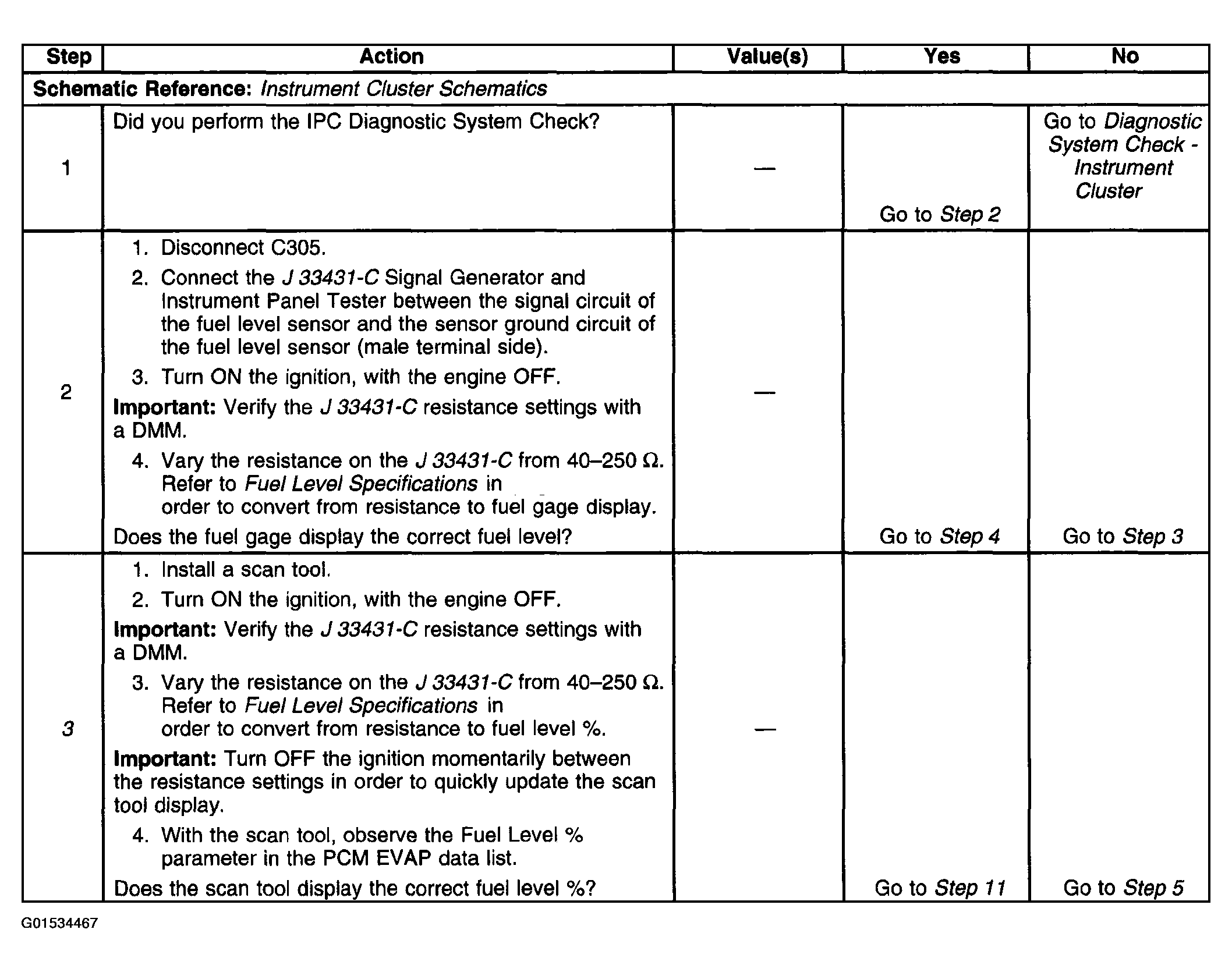

Fig 1: Diagnostic System Check Chart - Fuel Gage Inaccurate Or Inoperative

G01534467

Courtesy of GENERAL MOTORS CORP.

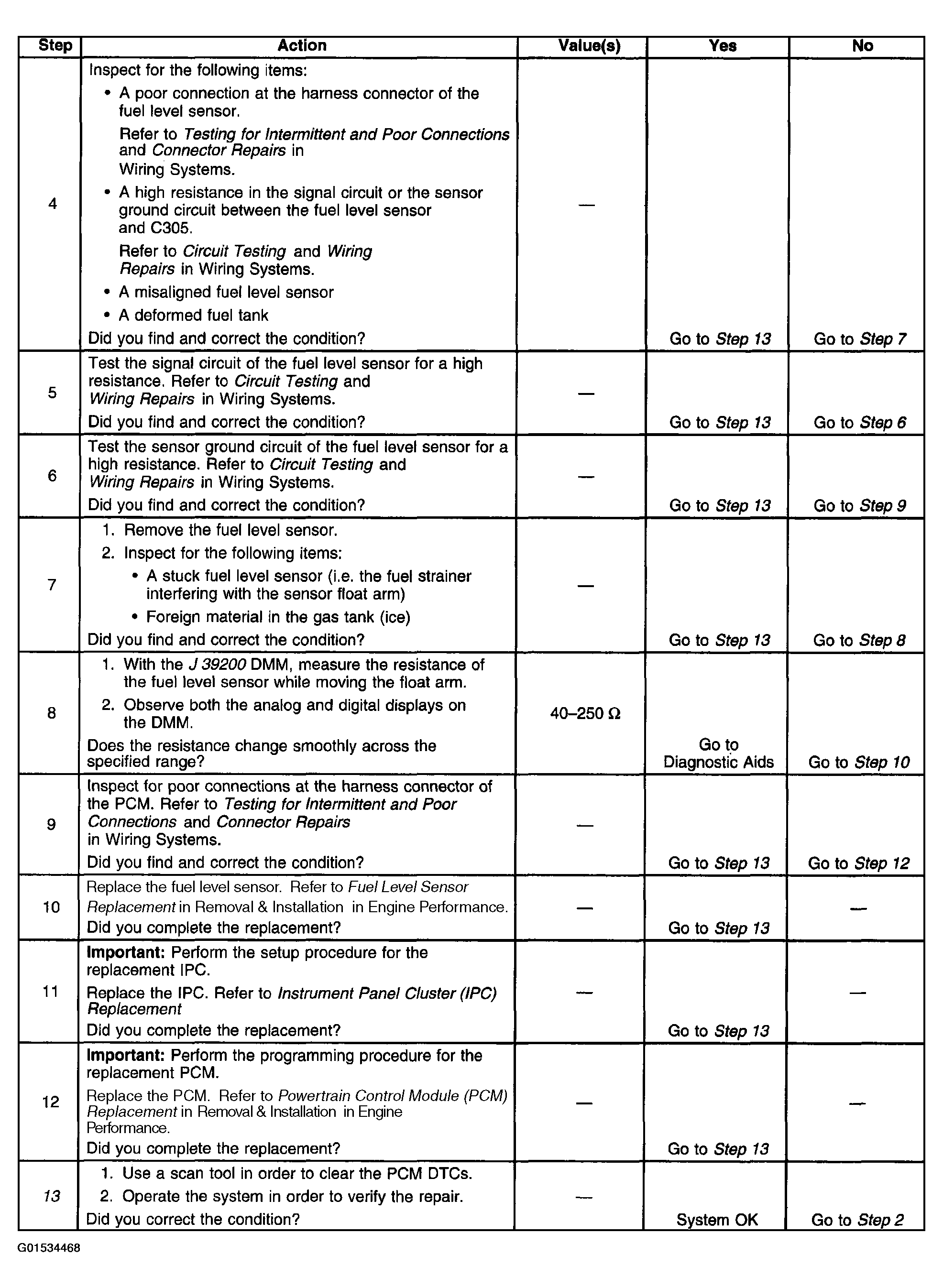

Fig 2: Diagnostic System Check Chart - Fuel Gage Inaccurate Or Inoperative

G01534468

Courtesy of GENERAL MOTORS CORP.

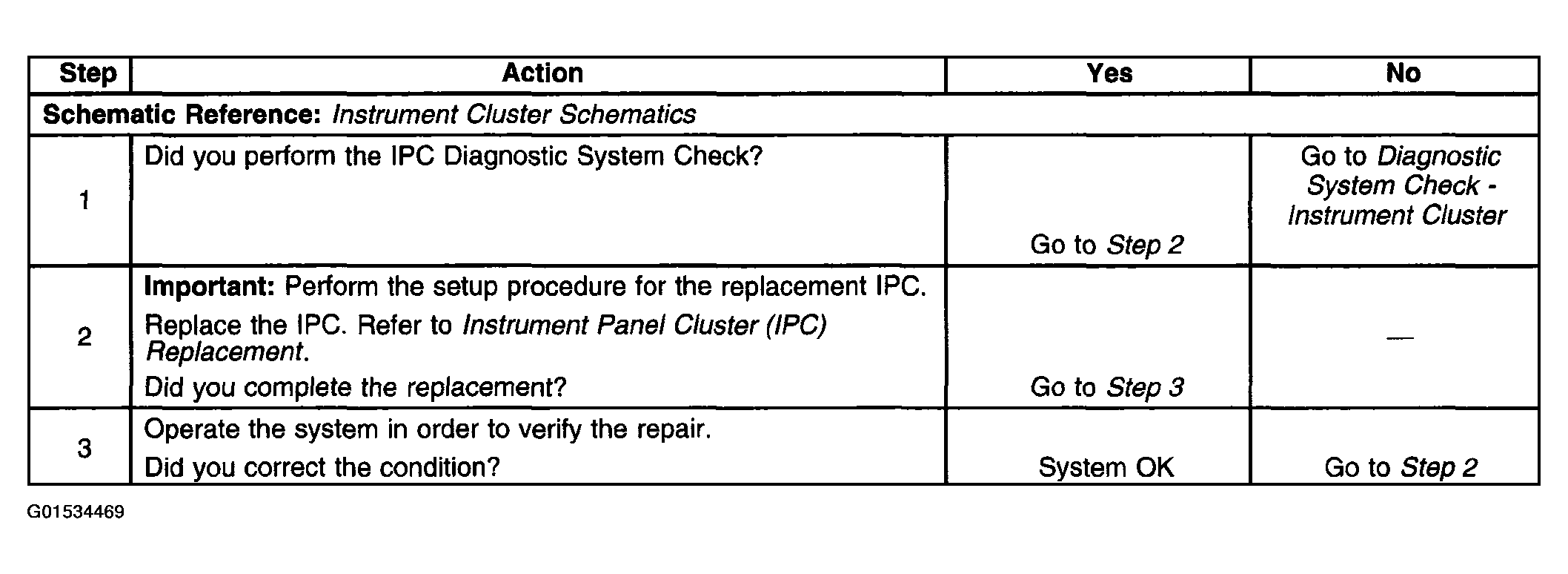

Fig 3: Diagnostic System Check Chart - Odometer Trip/Reset Switch Inoperative

G01534469

Courtesy of GENERAL MOTORS CORP.

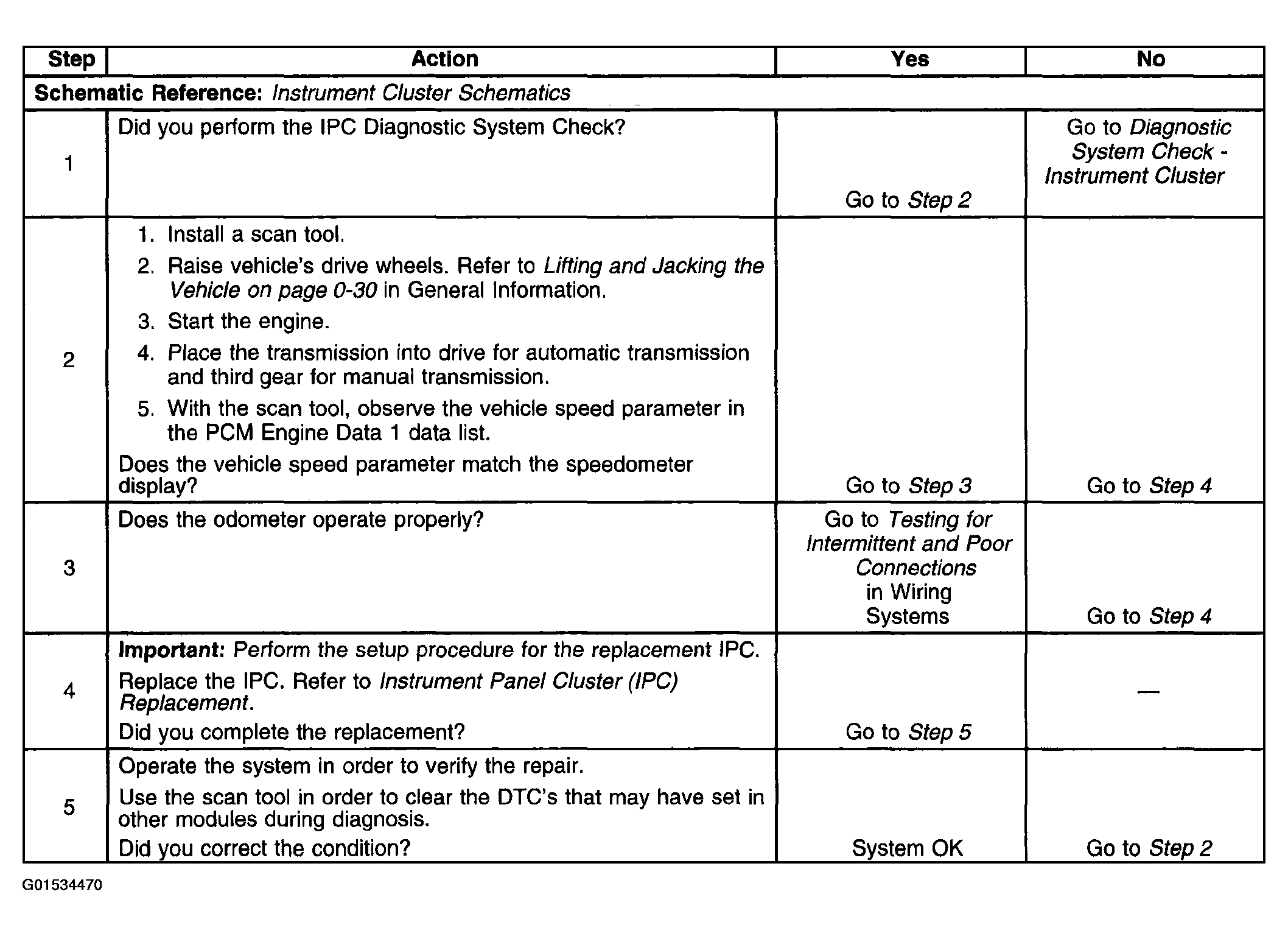

Fig 4: Diagnostic System Check Chart - Speedometer And/Or Odometer Inaccurate Or Inoperative

G01534470

Courtesy of GENERAL MOTORS CORP.

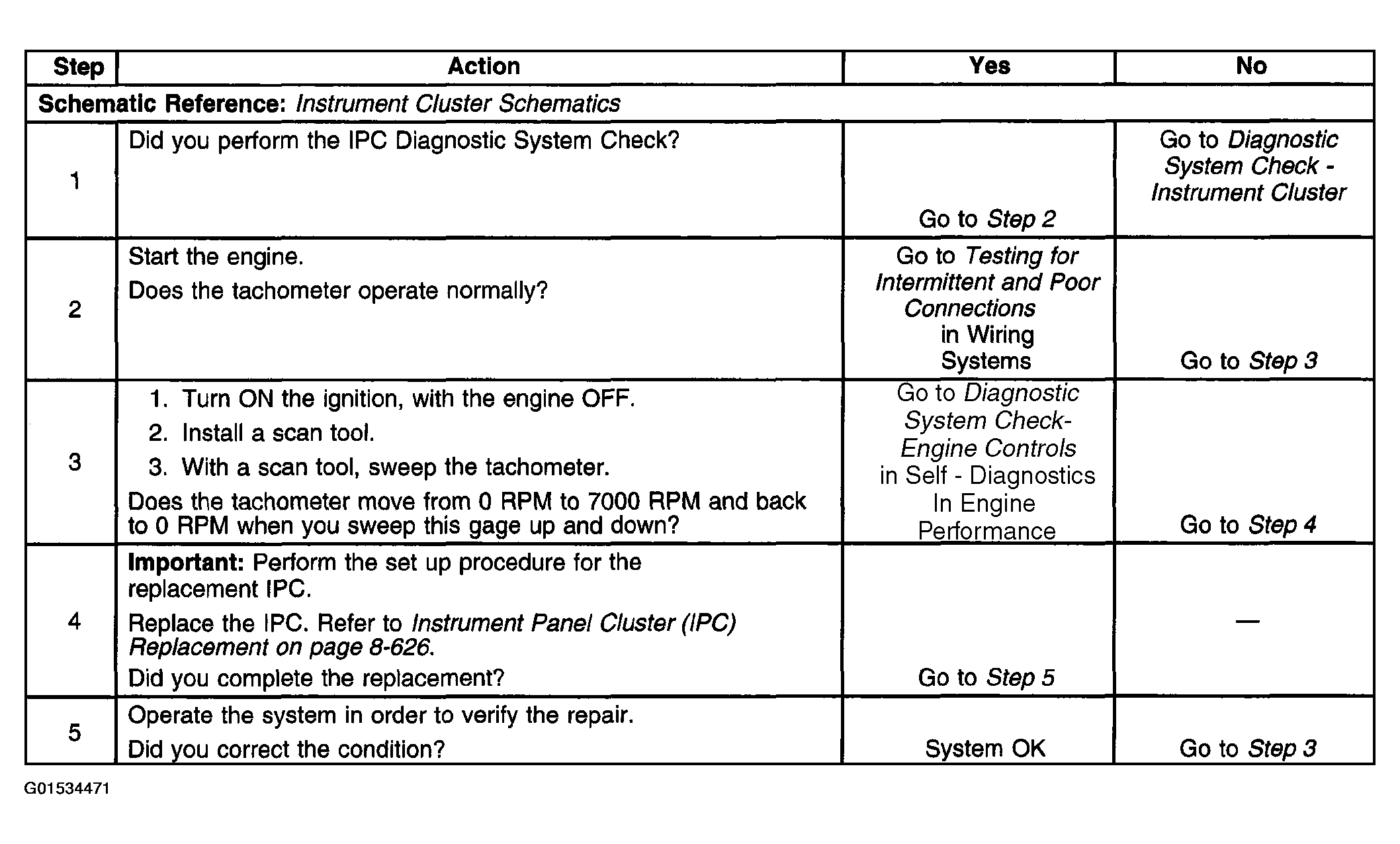

Fig 5: Diagnostic System Check Chart - Tachometer Inaccurate Or Inoperative

G01534471

Courtesy of GENERAL MOTORS CORP.

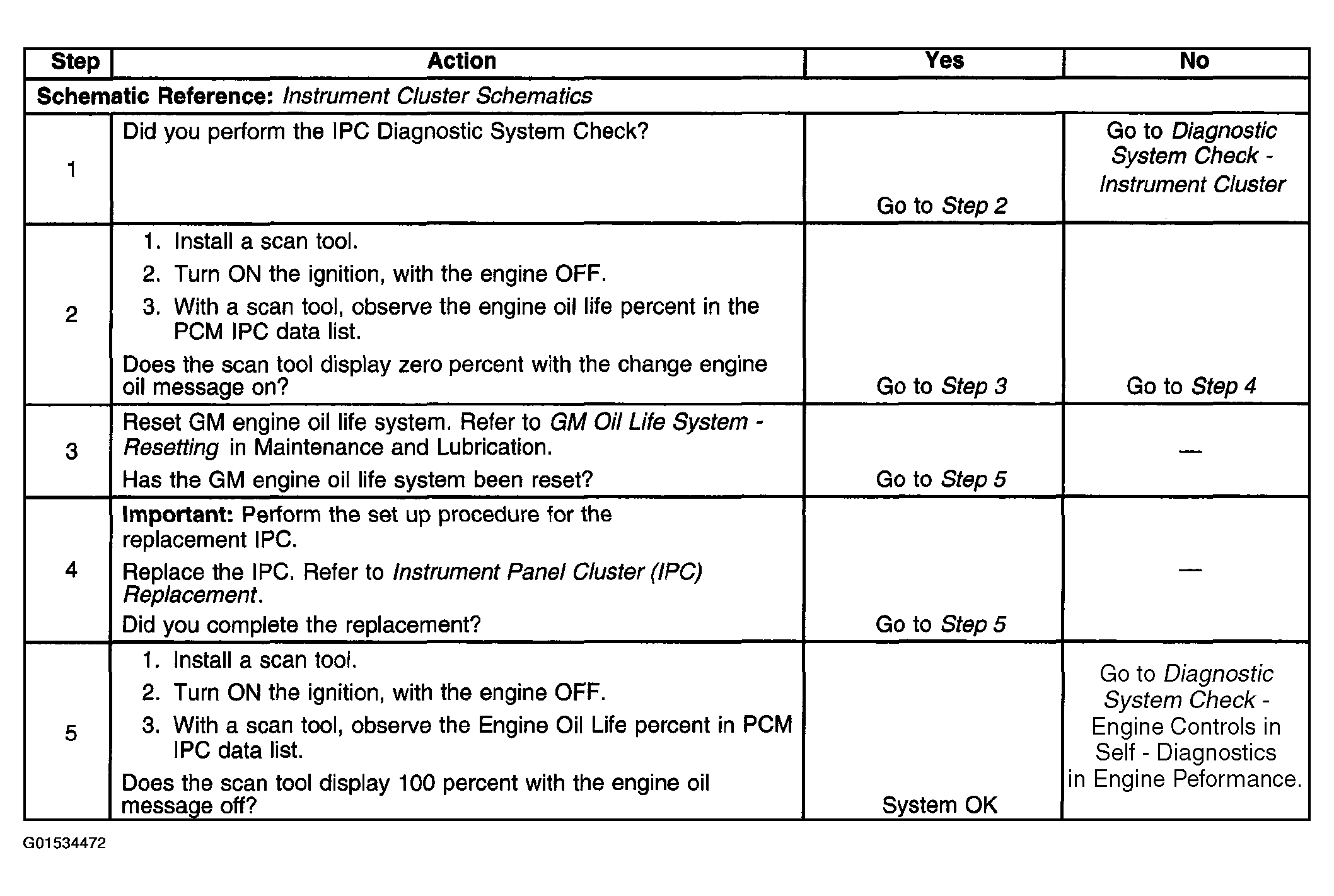

Fig 6: Diagnostic System Check Chart - Change Engine Oil Indicator Always On

G01534472

Courtesy of GENERAL MOTORS CORP.

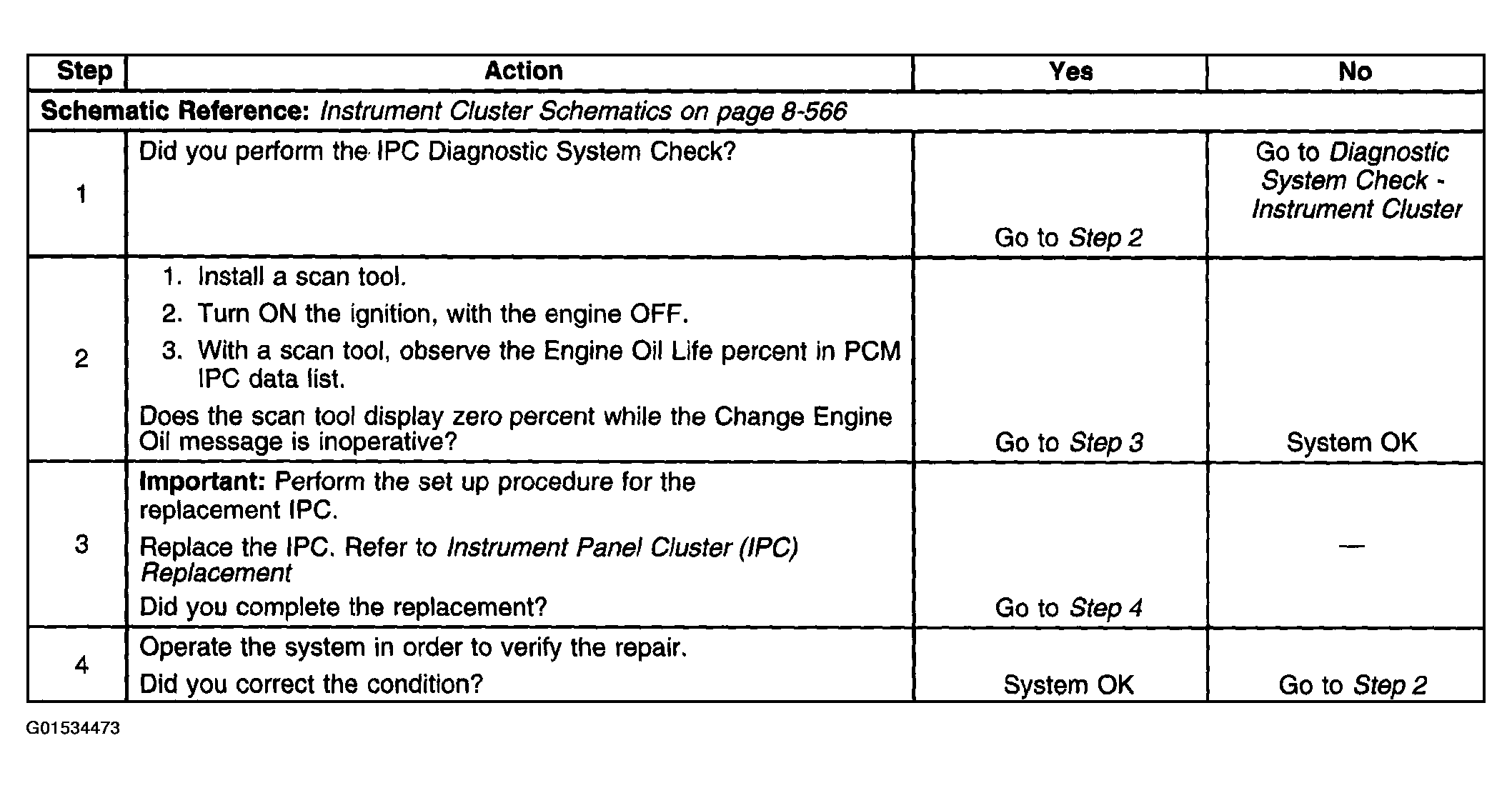

Fig 7: Diagnostic System Check Chart - Change Engine Oil Indicator Inoperative

G01534473

Courtesy of GENERAL MOTORS CORP.

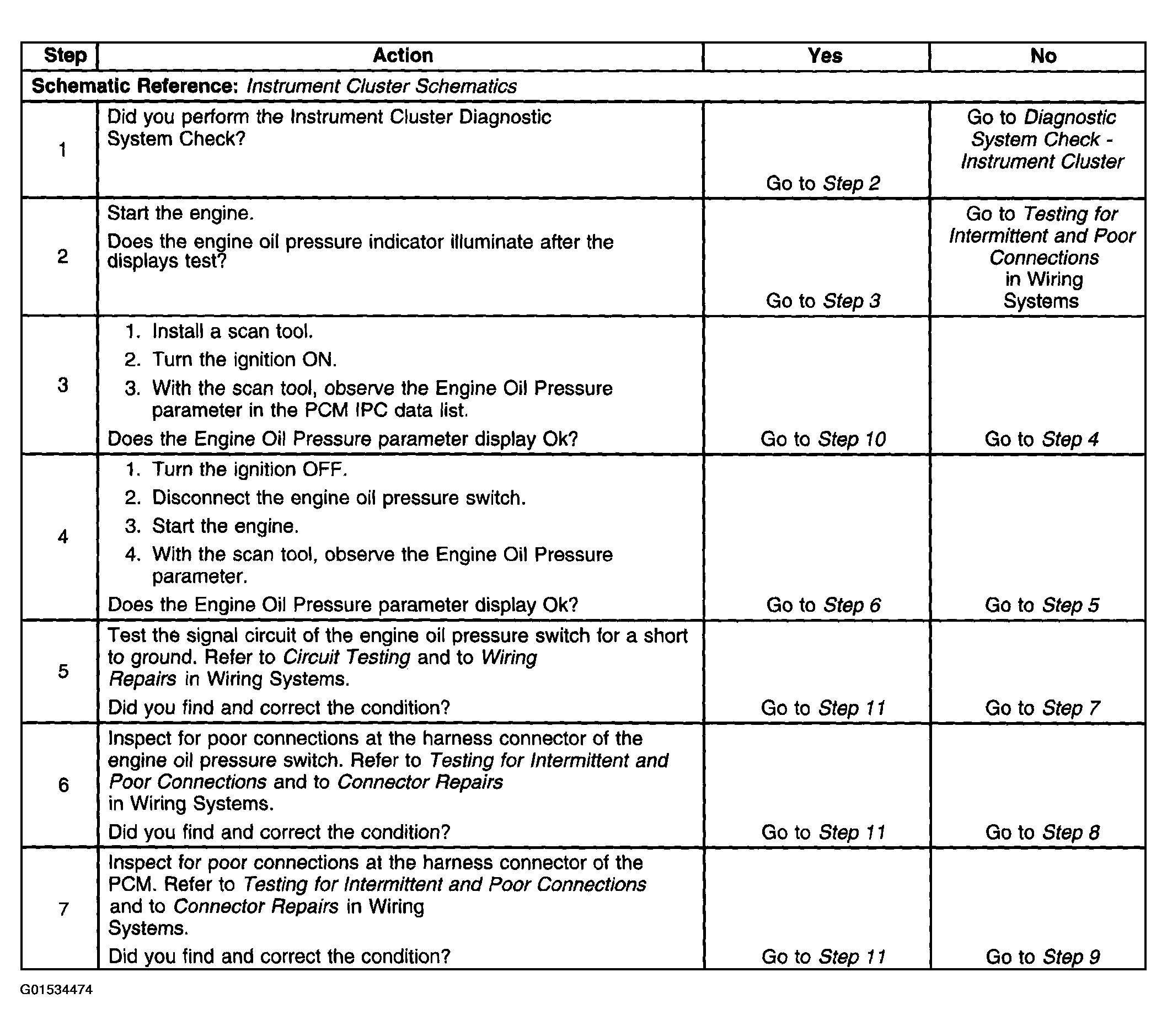

Fig 8: Diagnostic System Check Chart - Engine Oil Pressure Indicator Always On

G01534474

Courtesy of GENERAL MOTORS CORP.

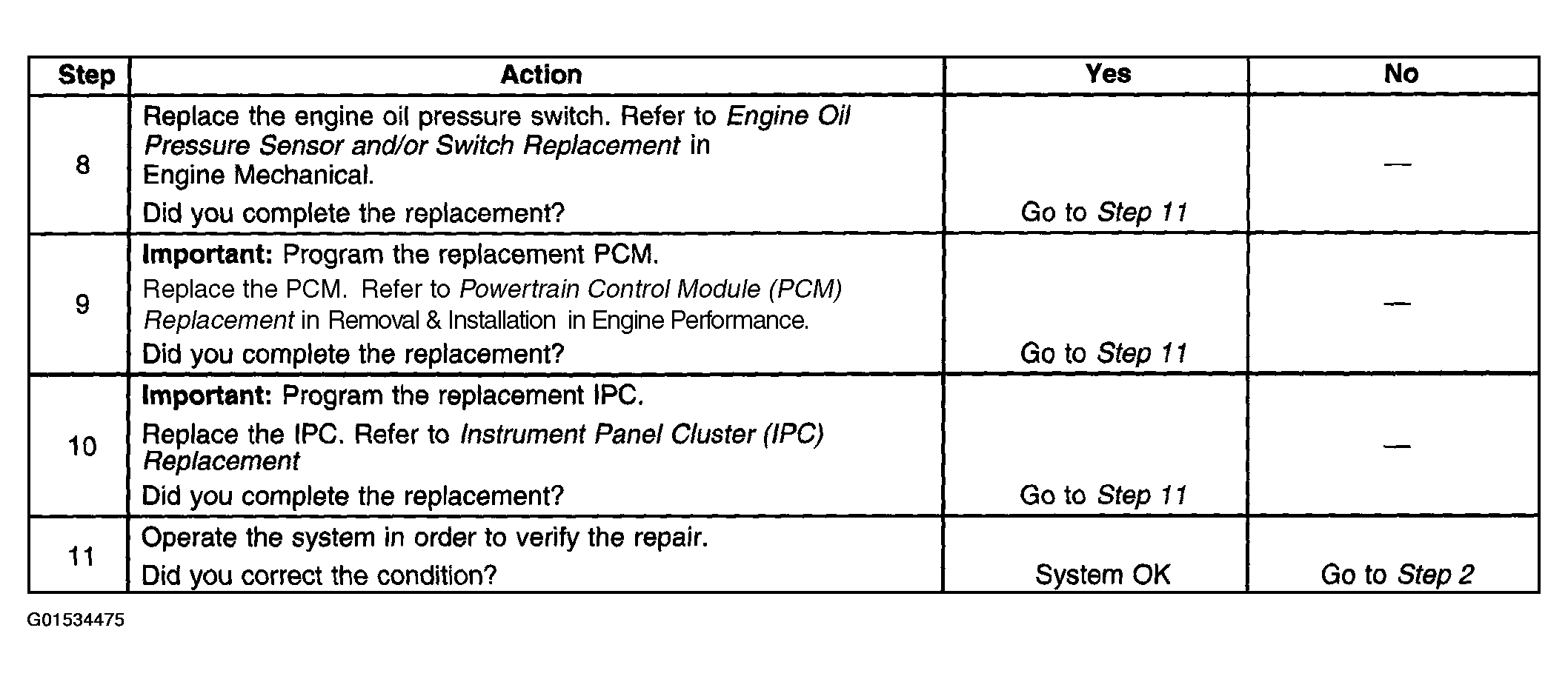

Fig 9: Diagnostic System Check Chart - Engine Oil Pressure Indicator Always On

G01534475

Courtesy of GENERAL MOTORS CORP.

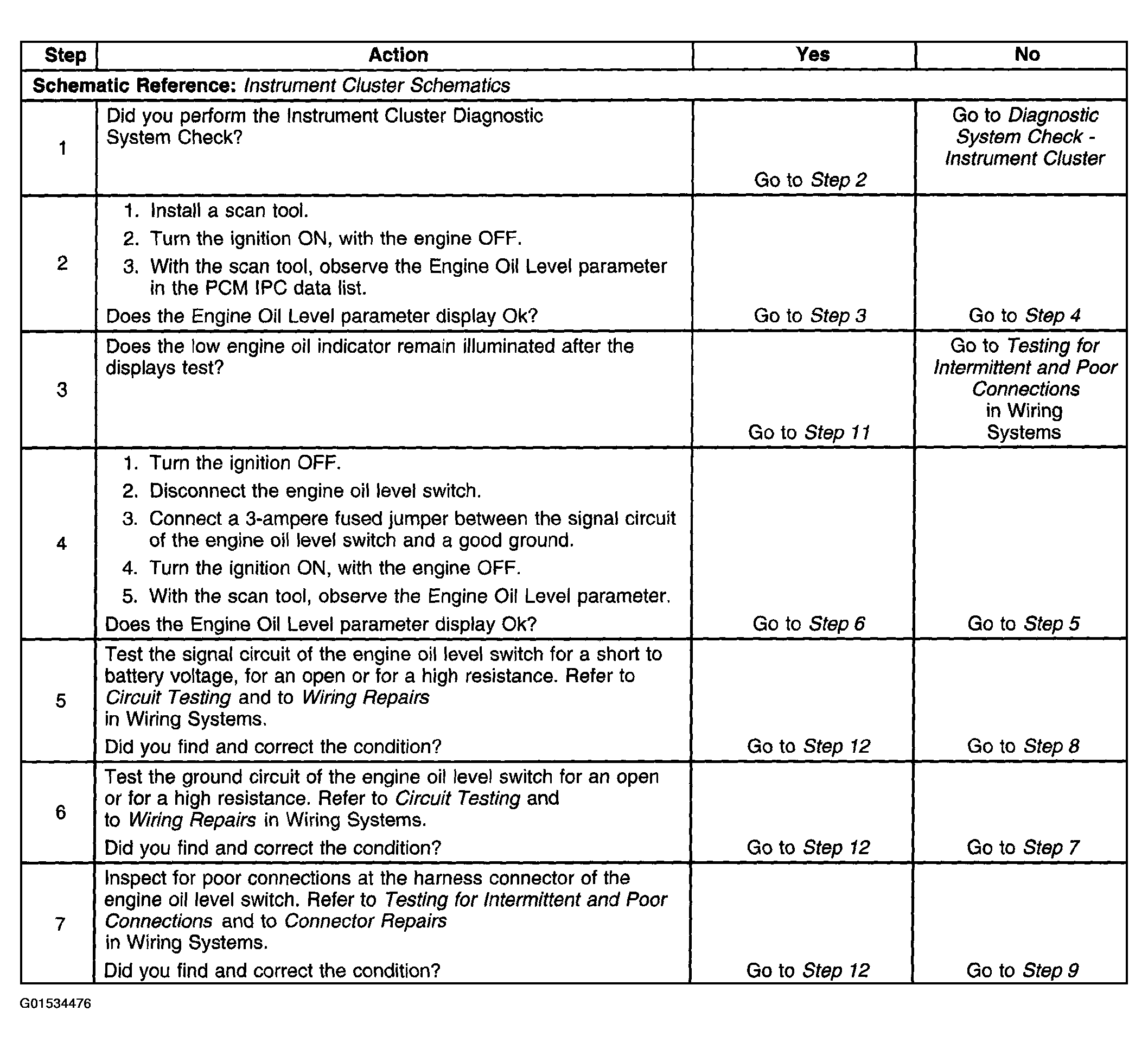

Fig 10: Diagnostic System Check Chart - Low Engine Oil Level Indicator Always On

G01534476

Courtesy of GENERAL MOTORS CORP.

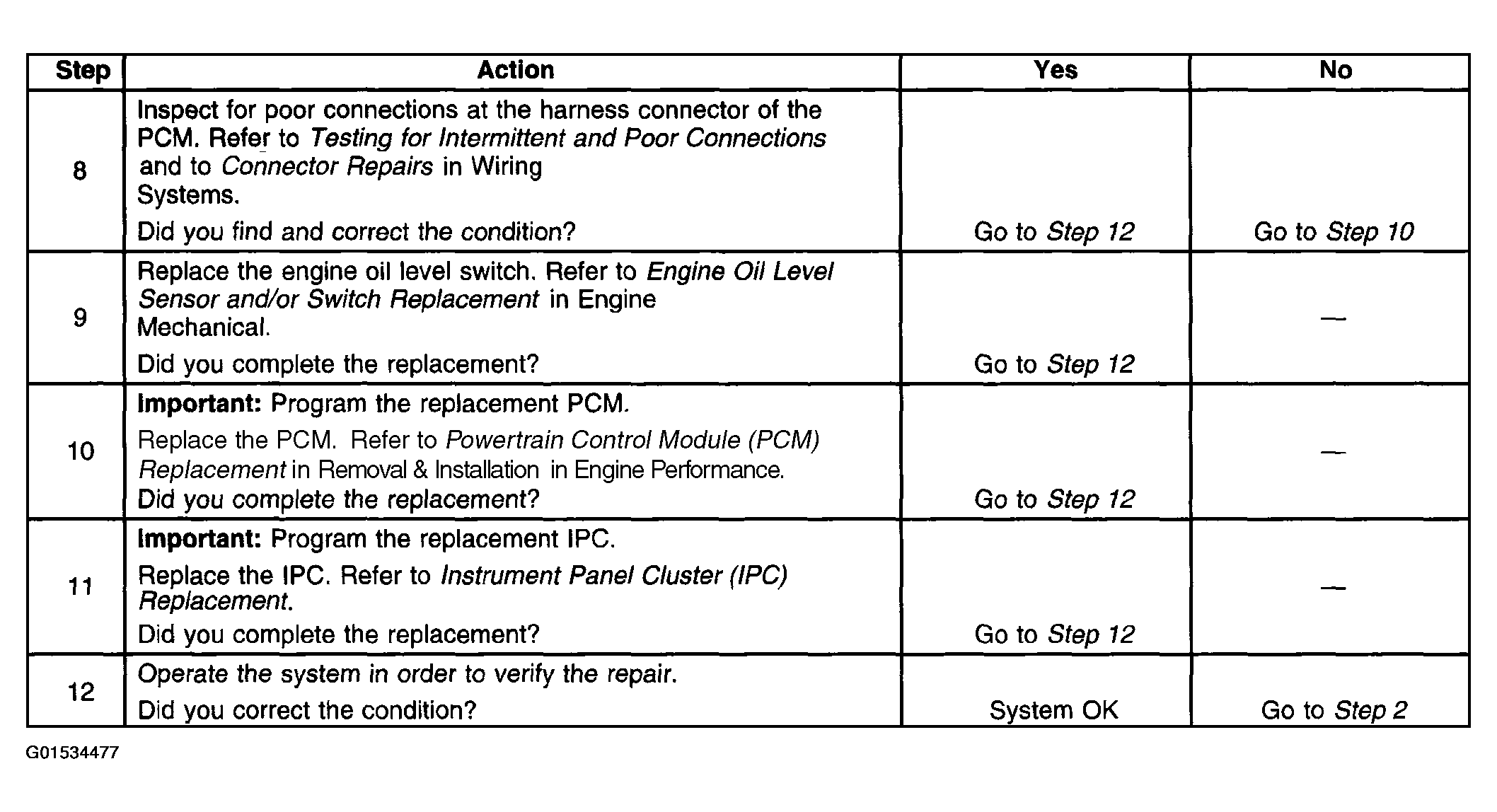

Fig 11: Diagnostic System Check Chart - Low Engine Oil Level Indicator Always On

G01534477

Courtesy of GENERAL MOTORS CORP.

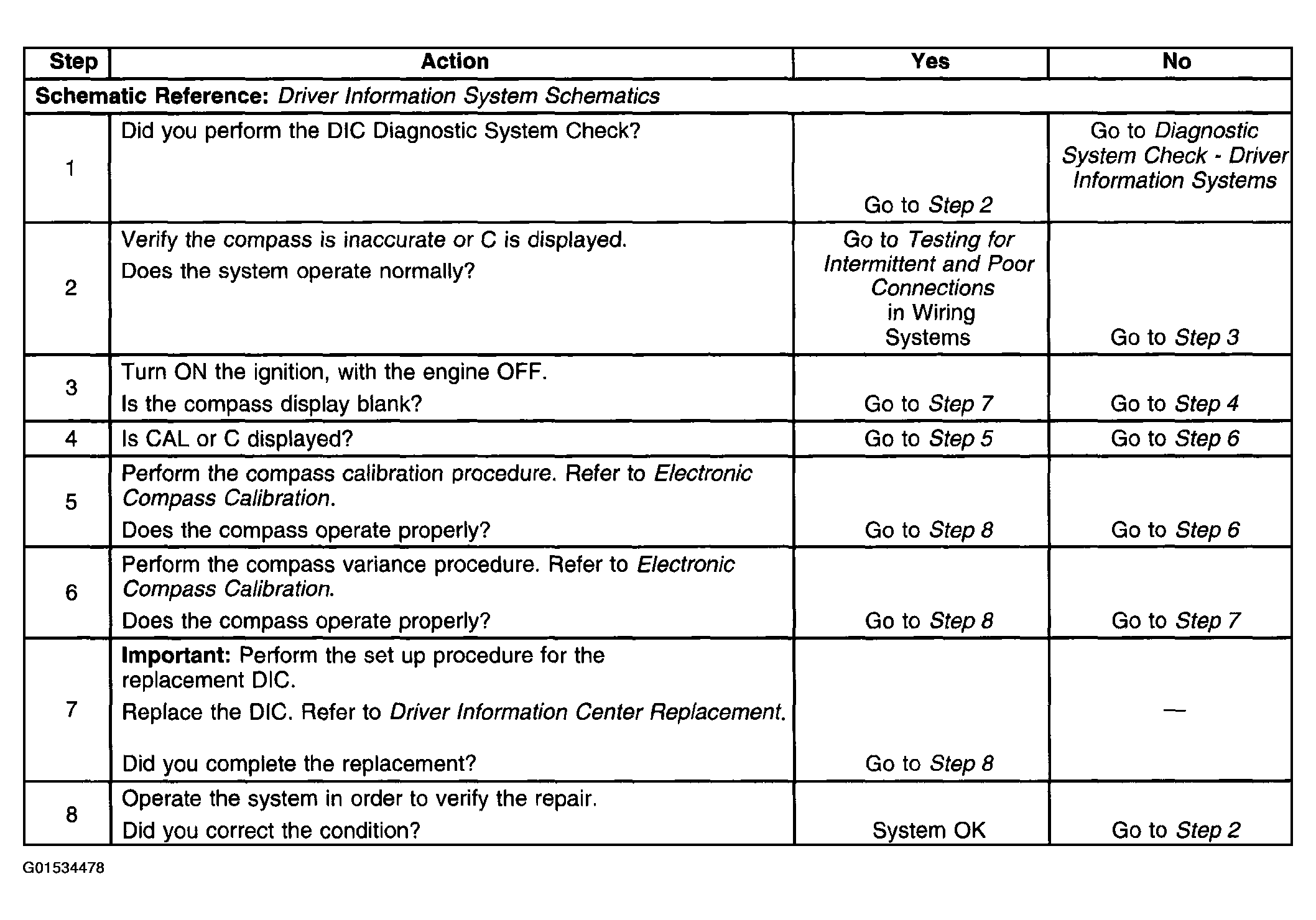

Fig 12: Diagnostic System Check Chart - Driver Information Center Compass Inaccurate Or C Displayed

G01534478

Courtesy of GENERAL MOTORS CORP.

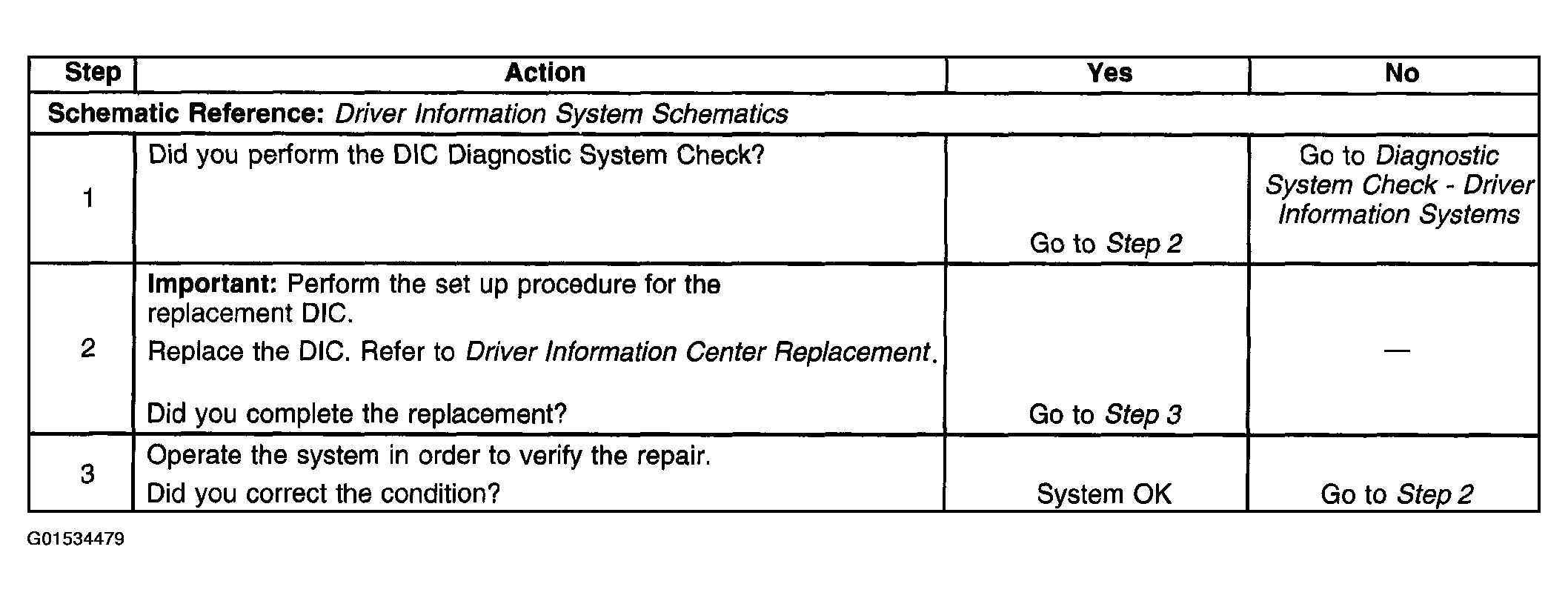

Fig 13: Diagnostic System Check Chart - Driver Information Center Switches Inoperative

G01534479

Courtesy of GENERAL MOTORS CORP.

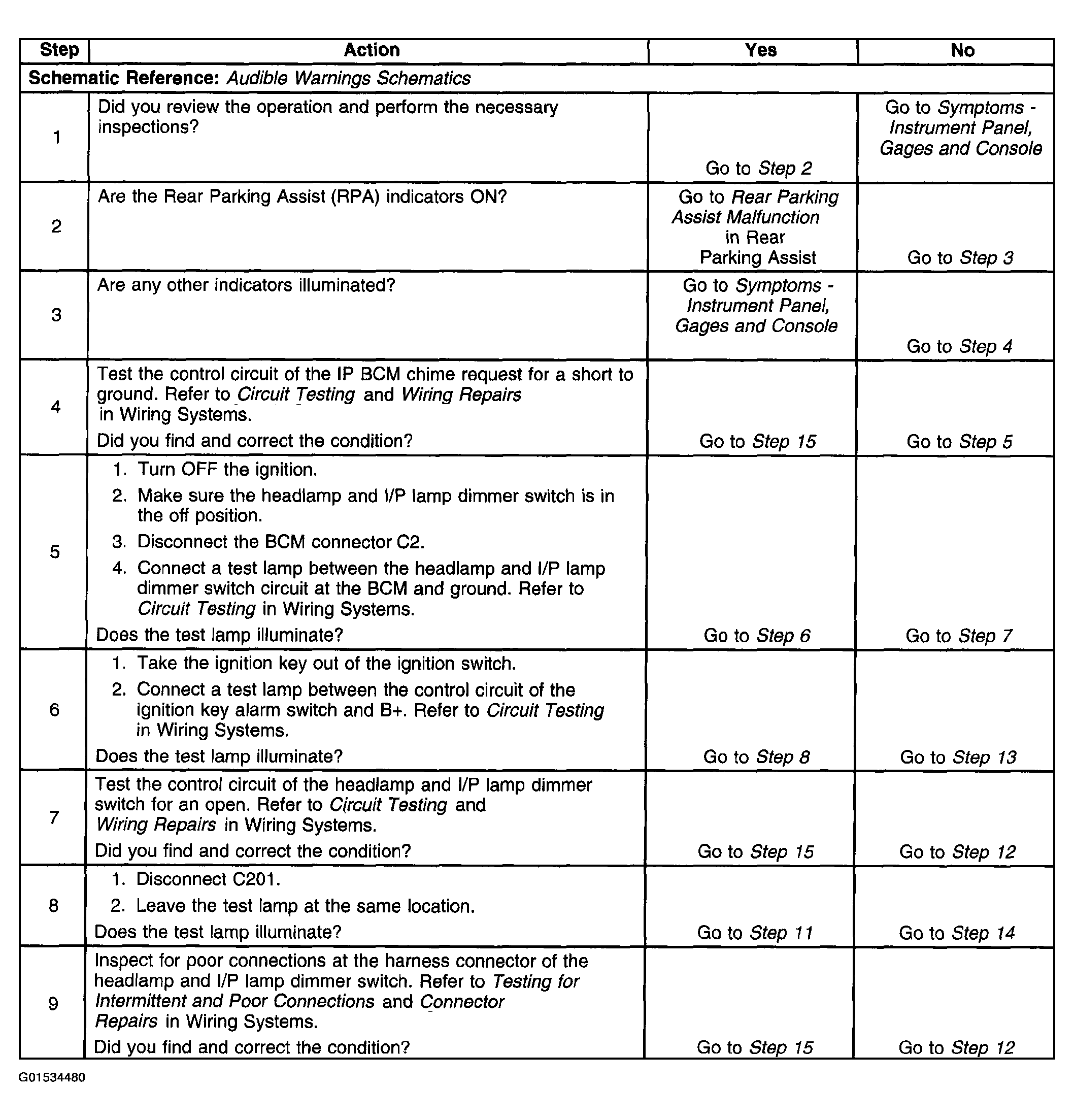

Fig 14: Diagnostic System Check Chart - Chime Always On

G01534480

Courtesy of GENERAL MOTORS CORP.

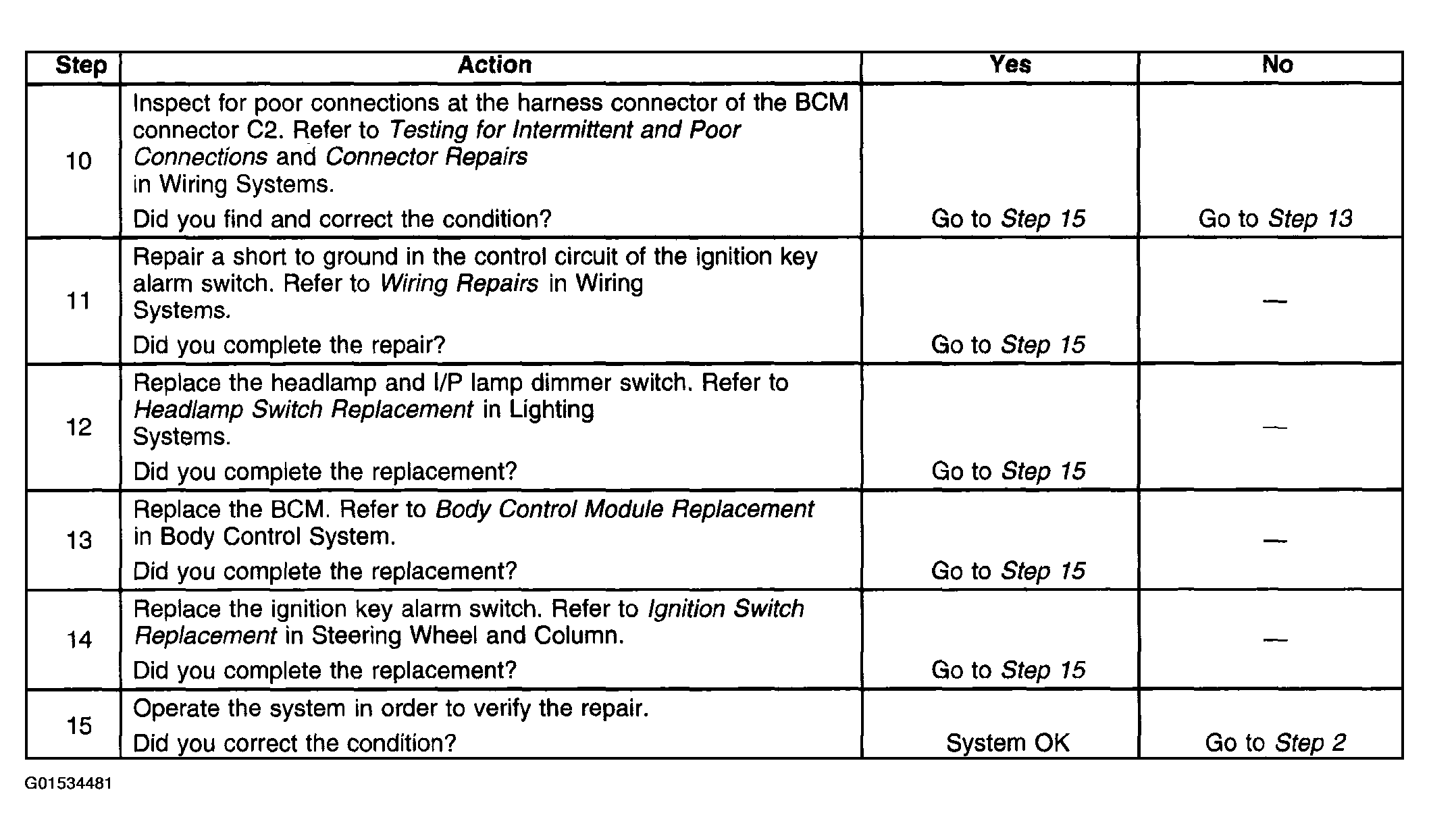

Fig 15: Diagnostic System Check Chart - Chime Always On

G01534481

Courtesy of GENERAL MOTORS CORP.

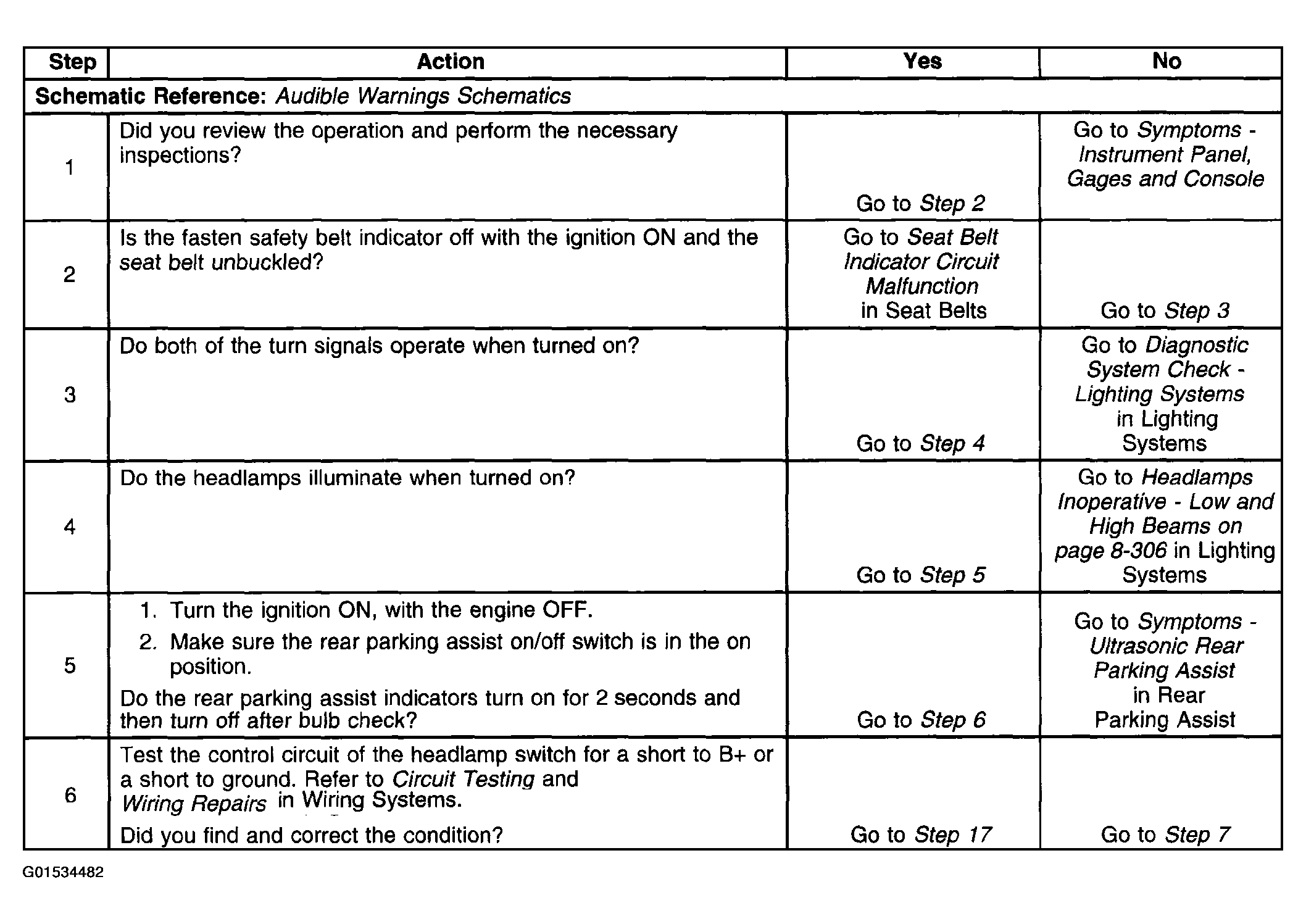

Fig 16: Diagnostic System Check Chart - Chime Inoperative

G01534482

Courtesy of GENERAL MOTORS CORP.

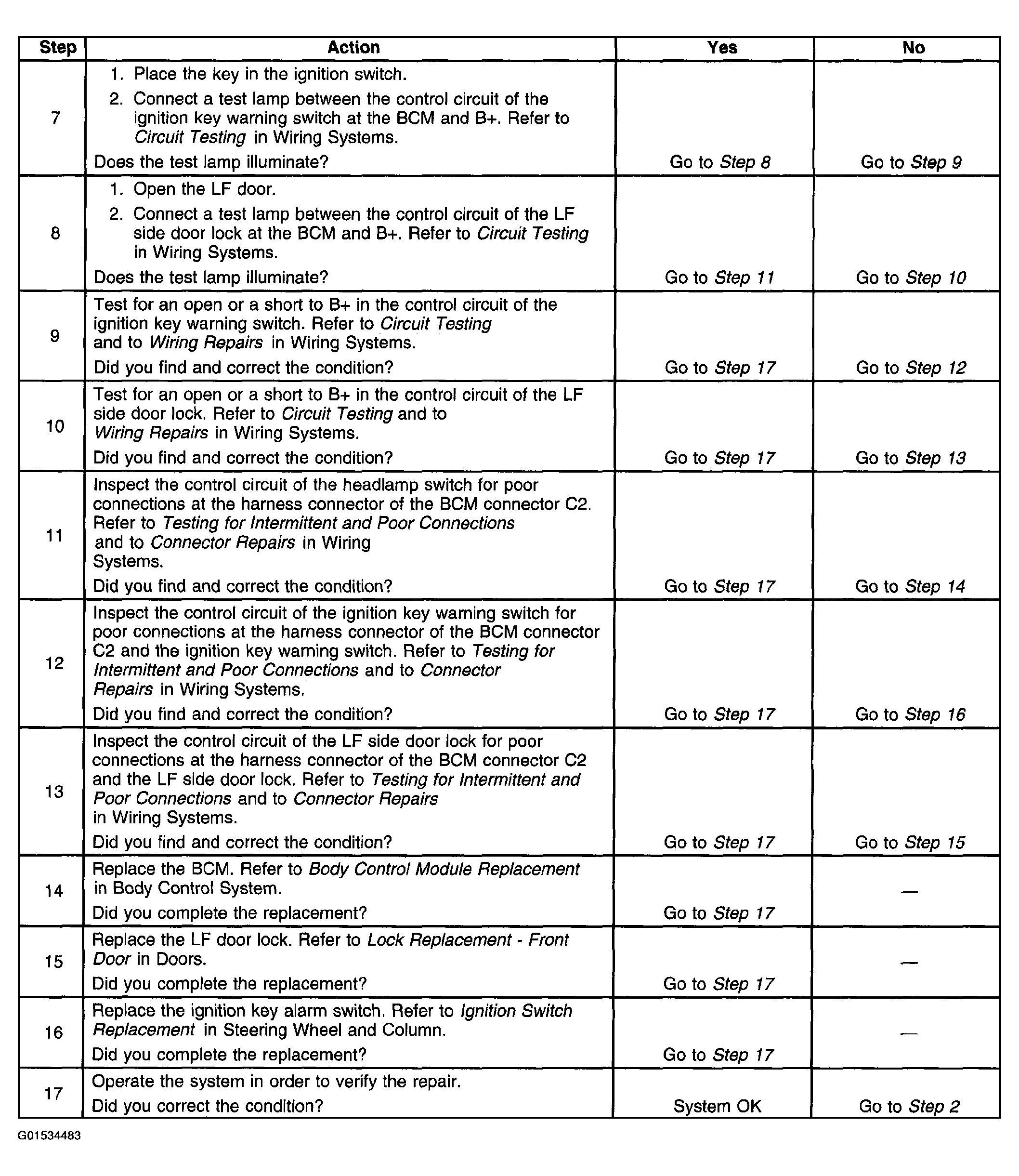

Fig 17: Diagnostic System Check Chart - Chime Inoperative

G01534483

Courtesy of GENERAL MOTORS CORP.

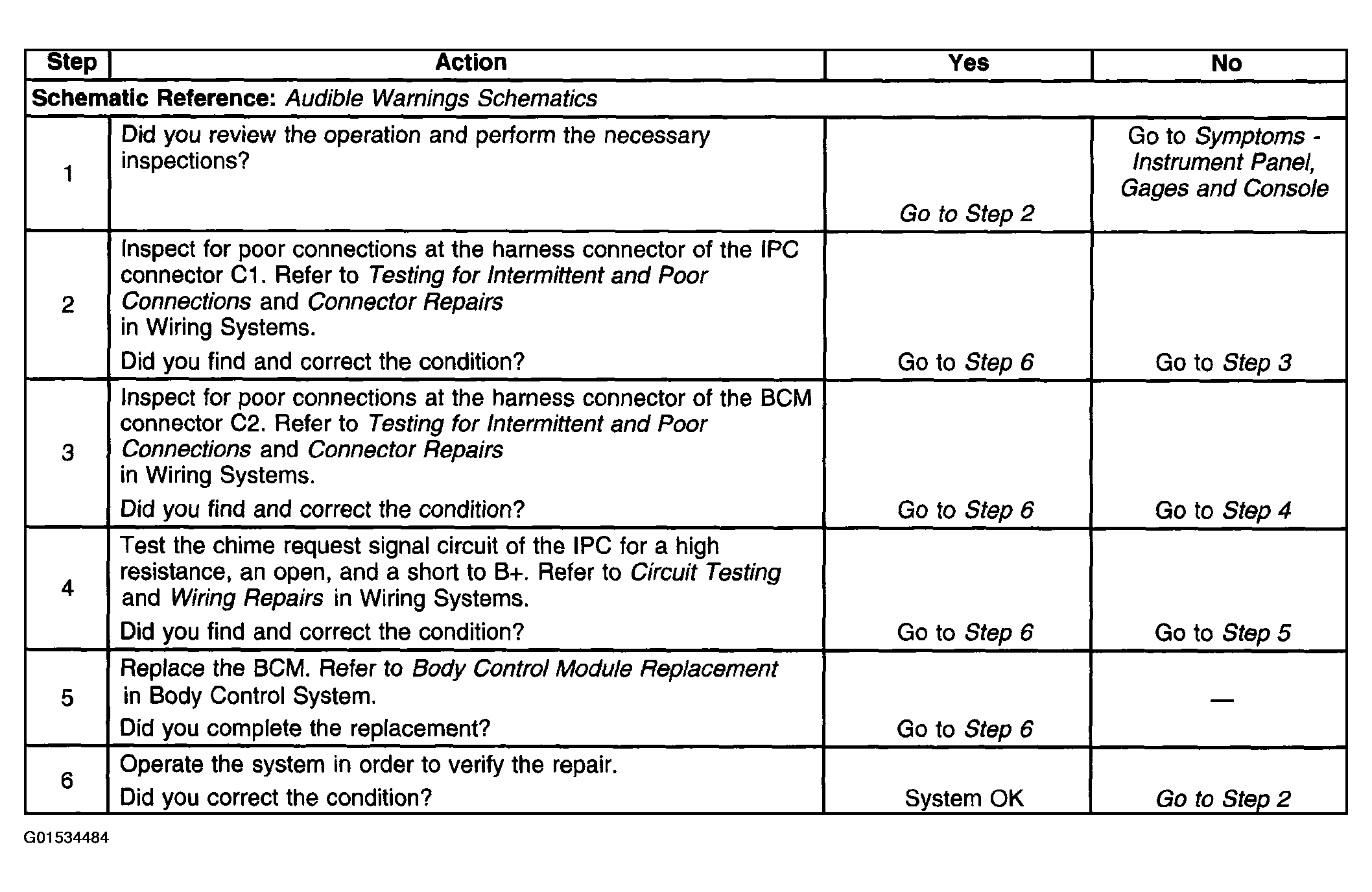

Fig 18: Diagnostic System Check Chart - Low Oil Pressure/Low Fuel Chime Inoperative

G01534484

Courtesy of GENERAL MOTORS CORP.
