Indicator/Warning Message Description and Operation: Notes

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

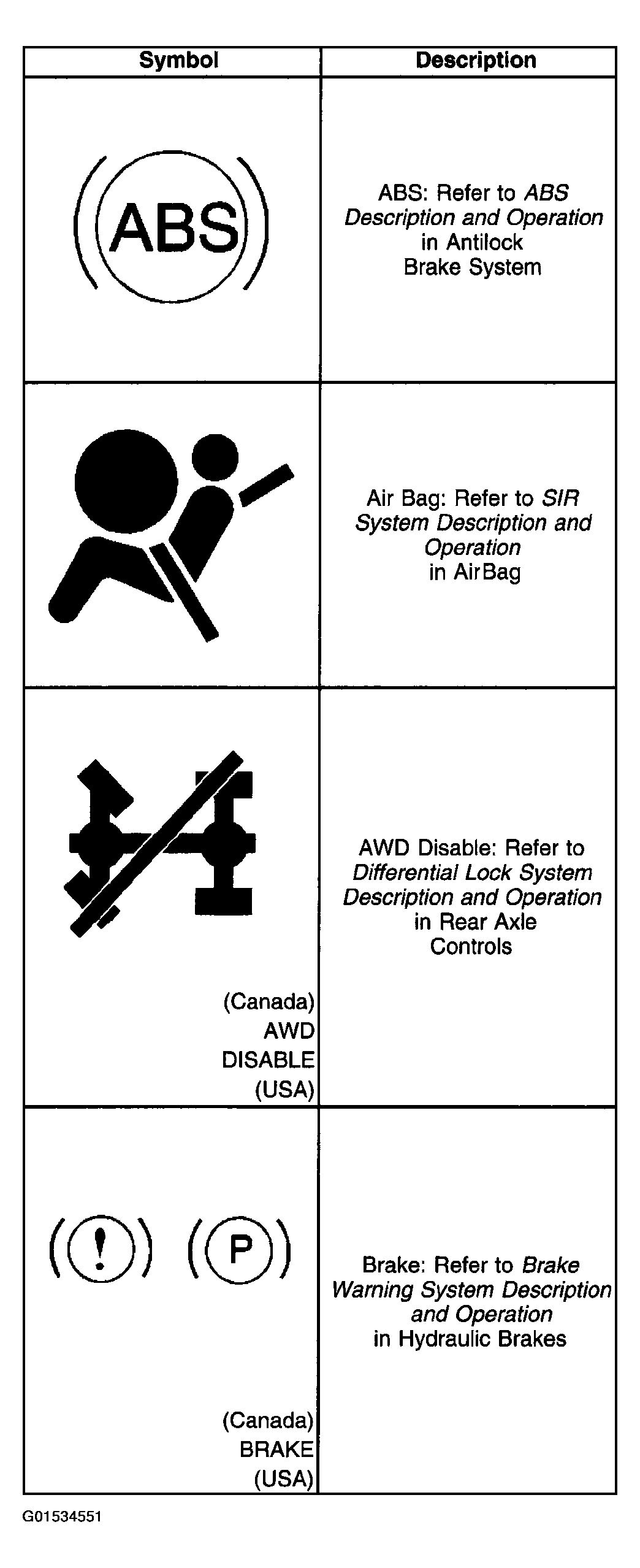

Fig 1: Indicators Symbol Description Chart (1 Of 6)

Courtesy of GENERAL MOTORS CORP.

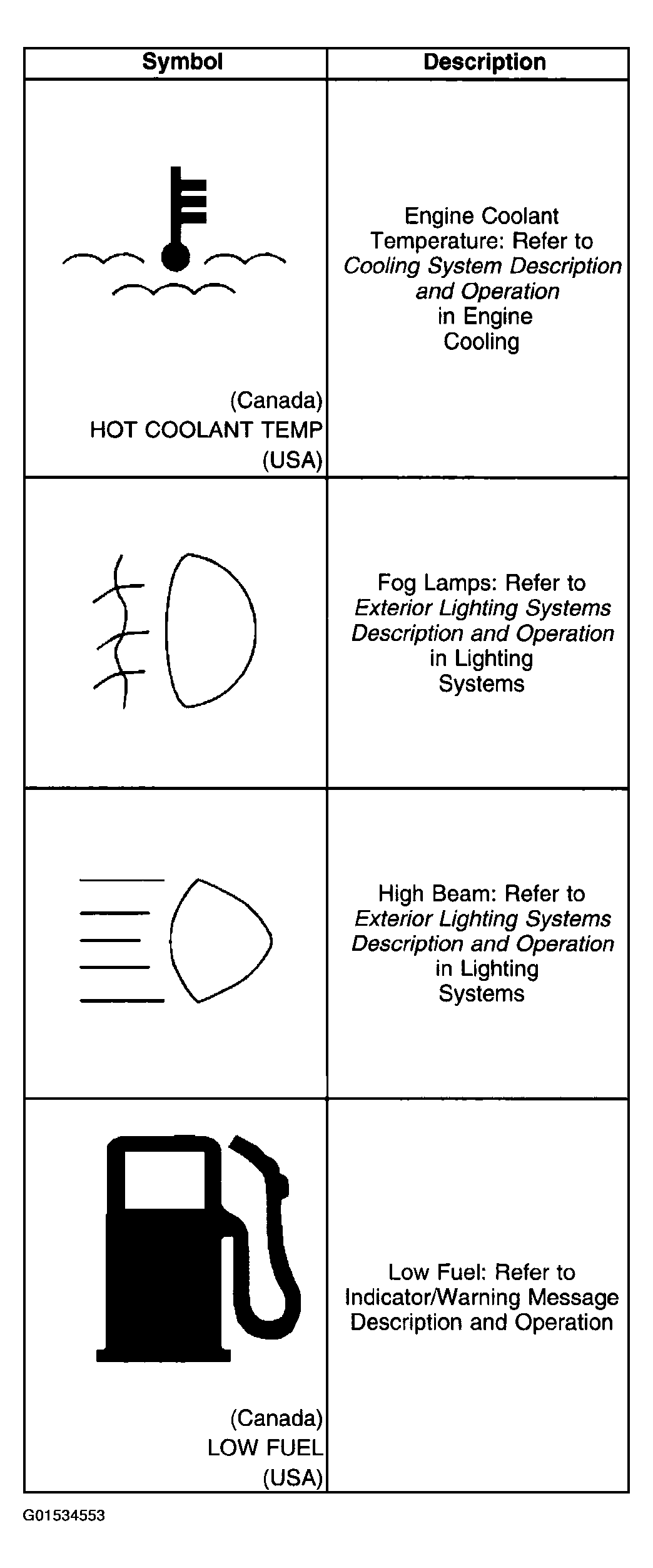

Fig 2: Indicators Symbol Description Chart (2 Of 6)

Courtesy of GENERAL MOTORS CORP.

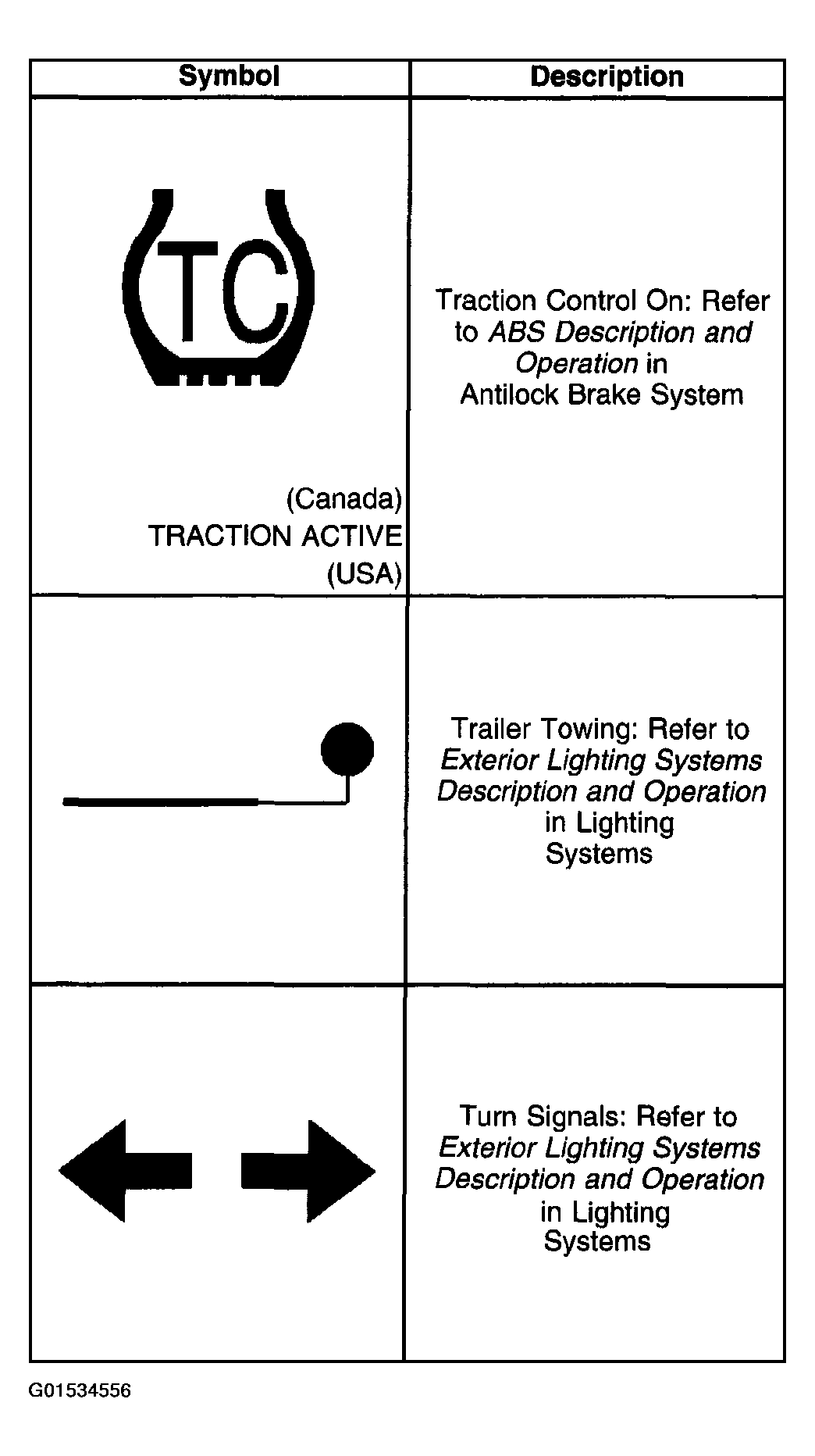

Fig 3: Indicators Symbol Description Chart (3 Of 6)

Courtesy of GENERAL MOTORS CORP.

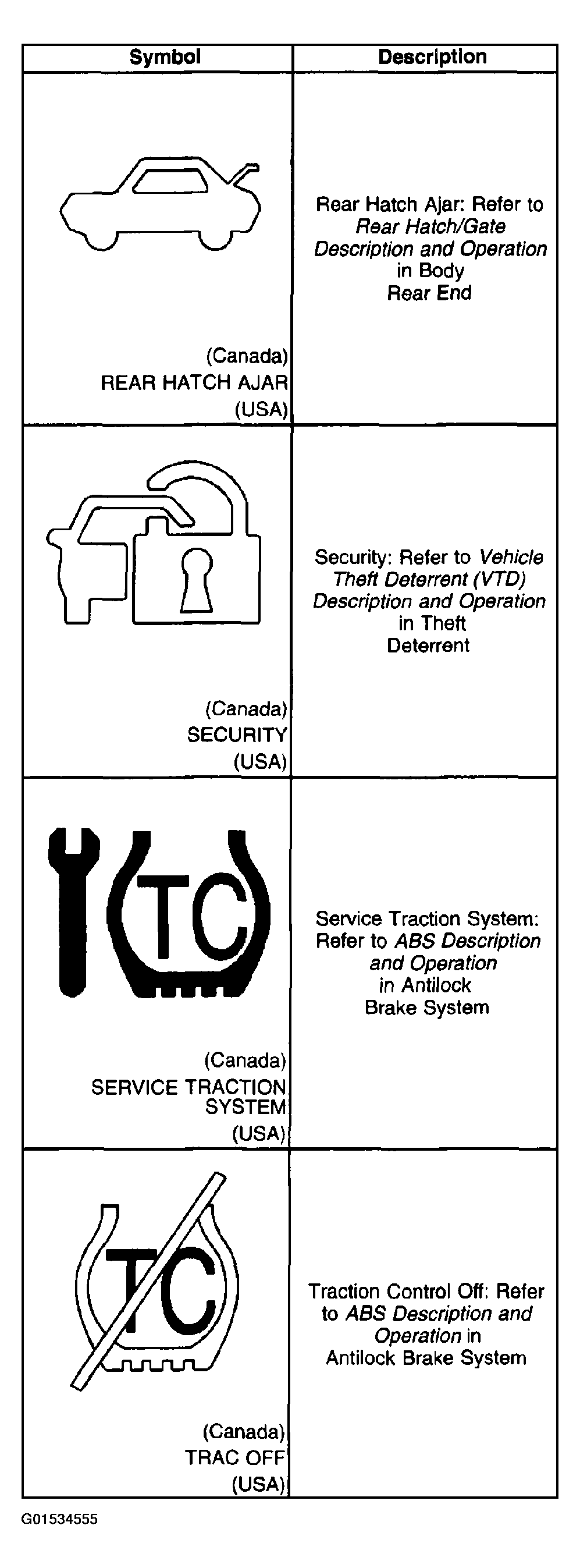

Fig 4: Indicators Symbol Description Chart (4 Of 6)

Courtesy of GENERAL MOTORS CORP.

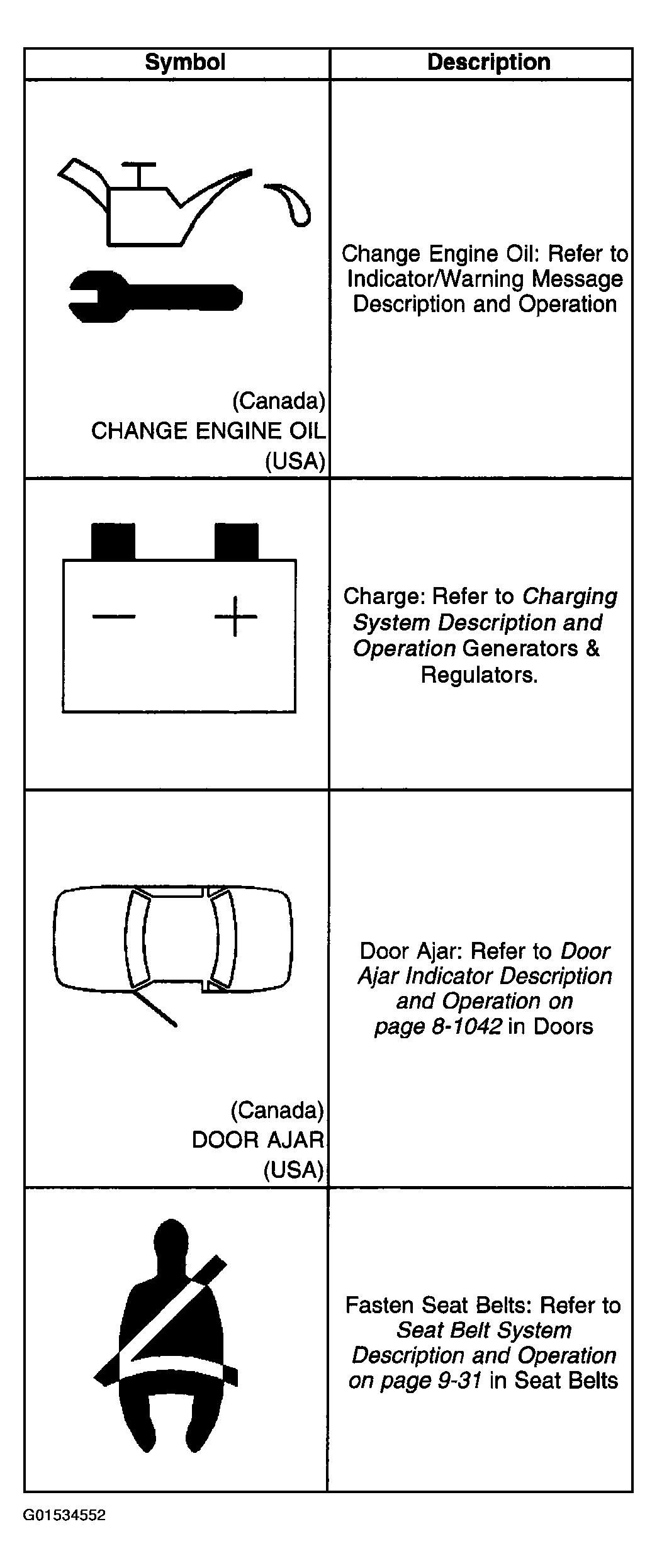

Fig 5: Indicators Symbol Description Chart (5 Of 6)

Courtesy of GENERAL MOTORS CORP.

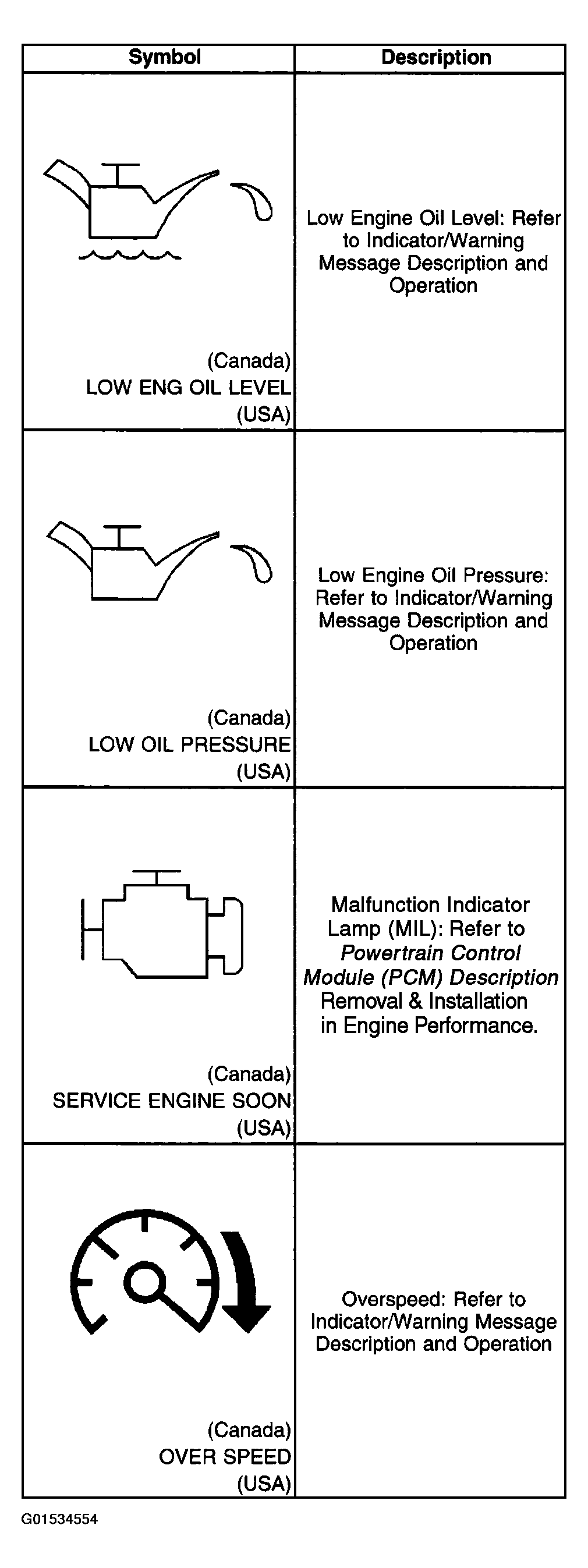

Fig 6: Indicators Symbol Description Chart (6 Of 6)

Courtesy of GENERAL MOTORS CORP.
