Instrument Panel, Gages, and Console Component Views

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

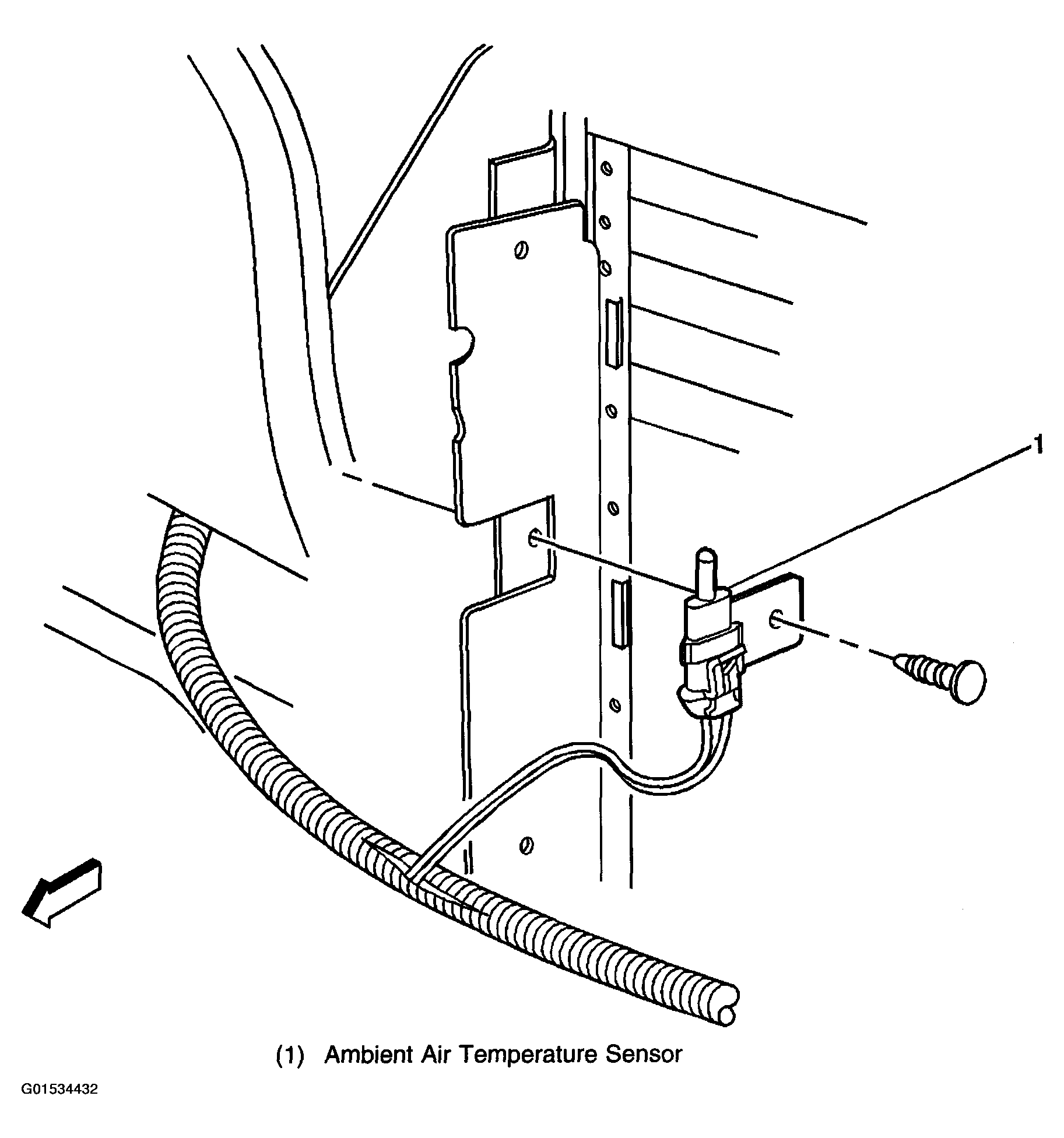

Fig 1: Radiator Support Front of the Radiator Component View

Courtesy of GENERAL MOTORS CORP.

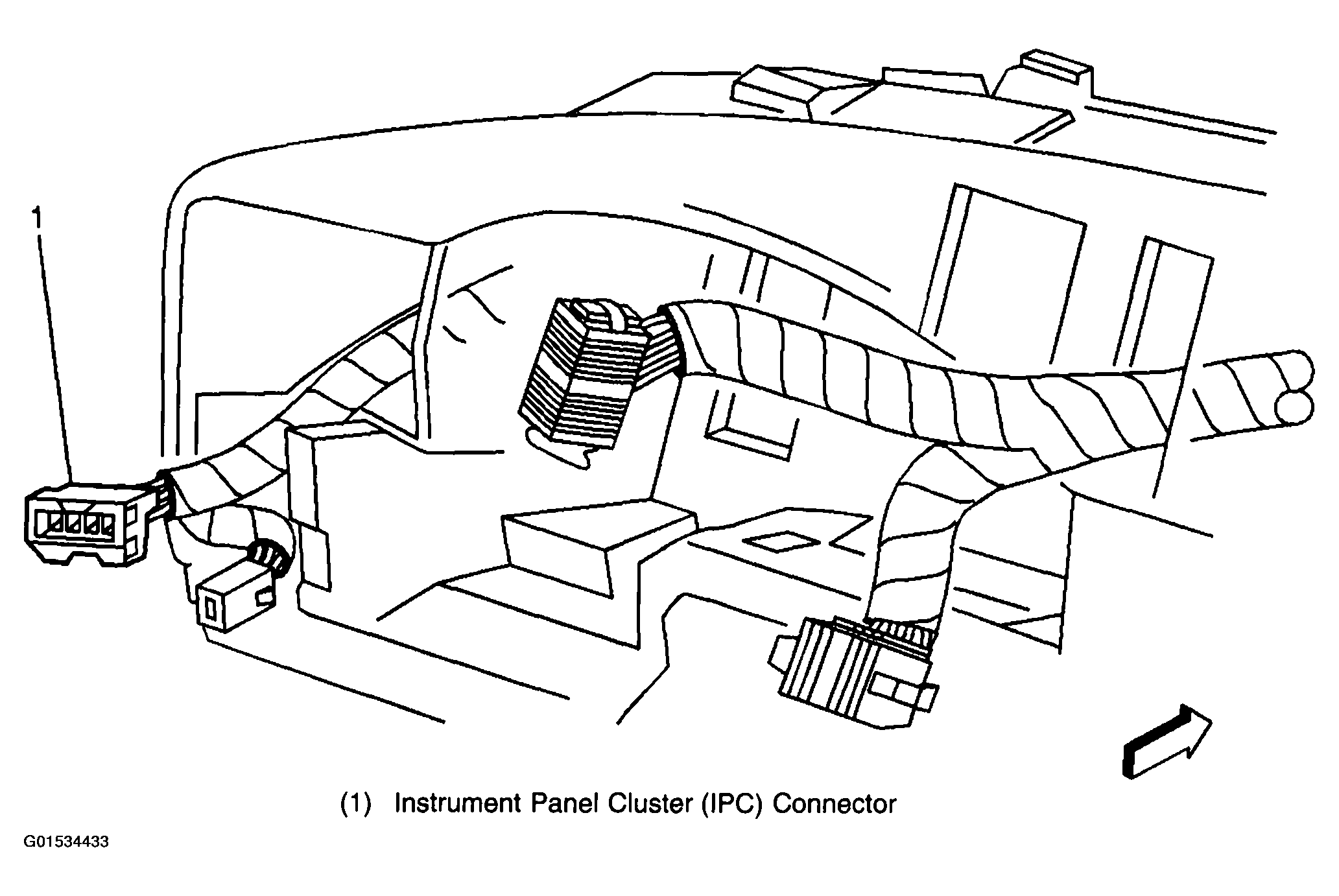

Fig 2: LH Side of I/P, Above Steering Column Component View

Courtesy of GENERAL MOTORS CORP.

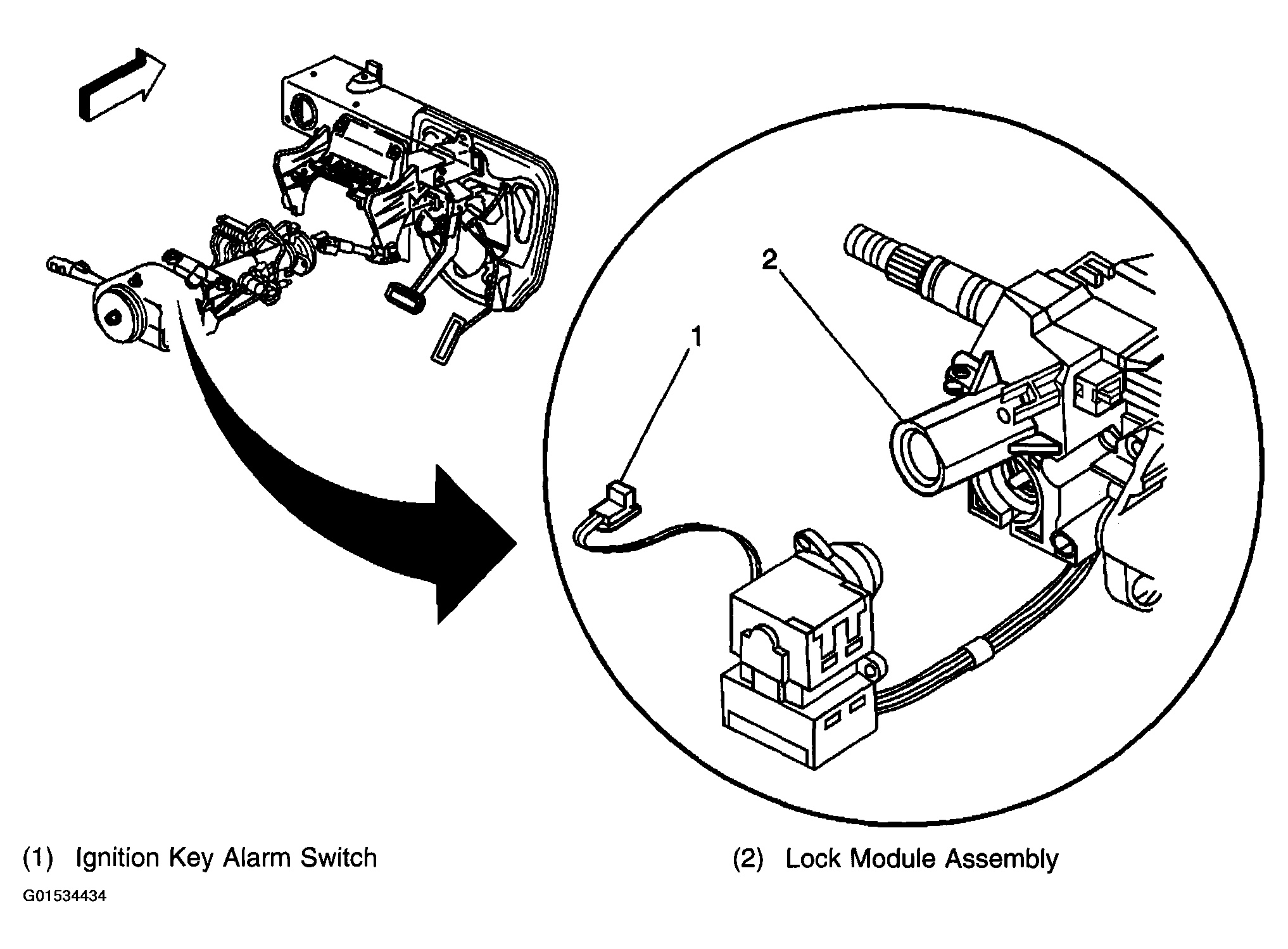

Fig 3: Steering Column Component View

Courtesy of GENERAL MOTORS CORP.

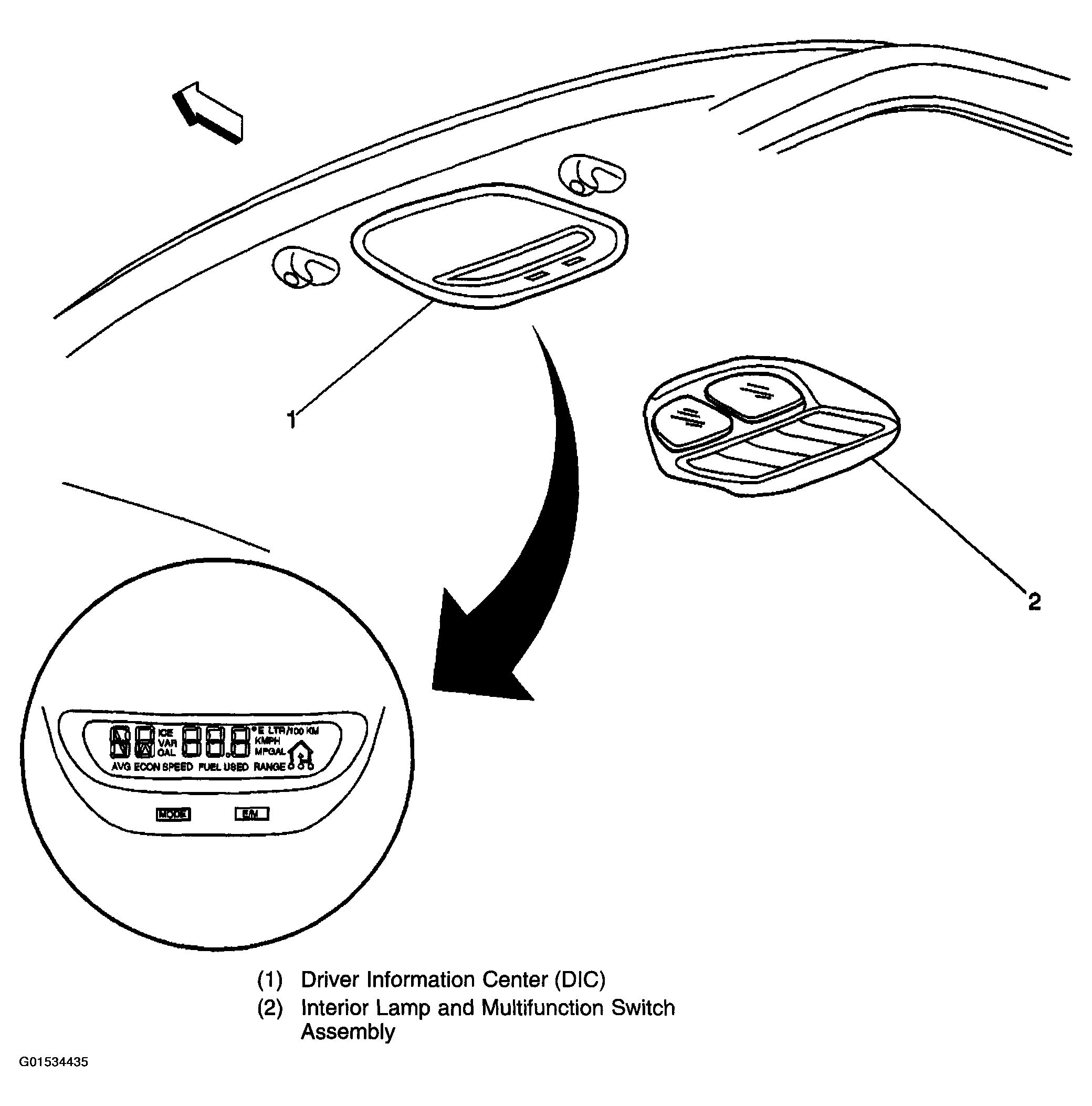

Fig 4: Overhead Console Component View

Courtesy of GENERAL MOTORS CORP.

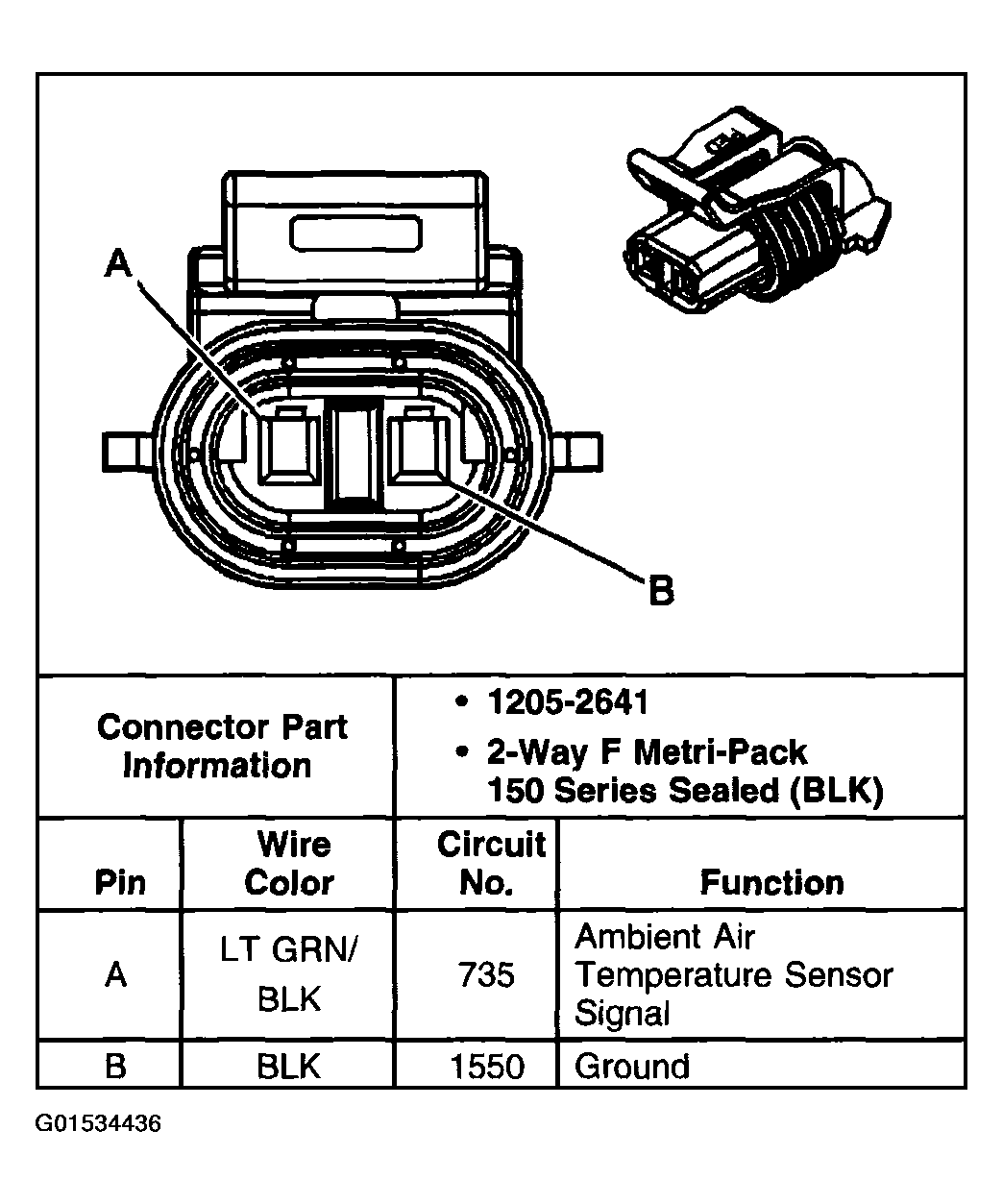

Fig 5: Ambient Air Temperature Sensor Connector End View

Courtesy of GENERAL MOTORS CORP.

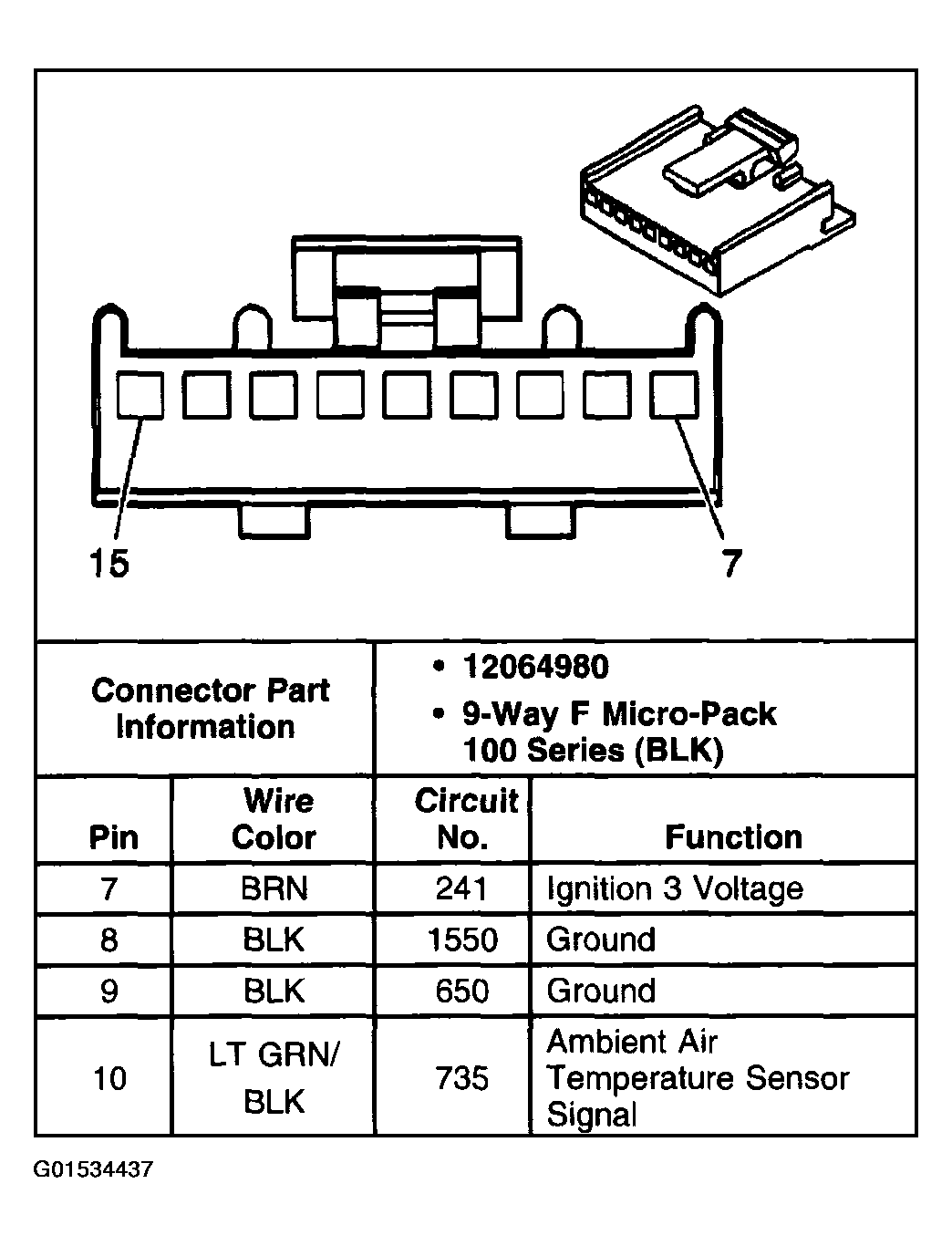

Fig 6: Driver Information Center Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

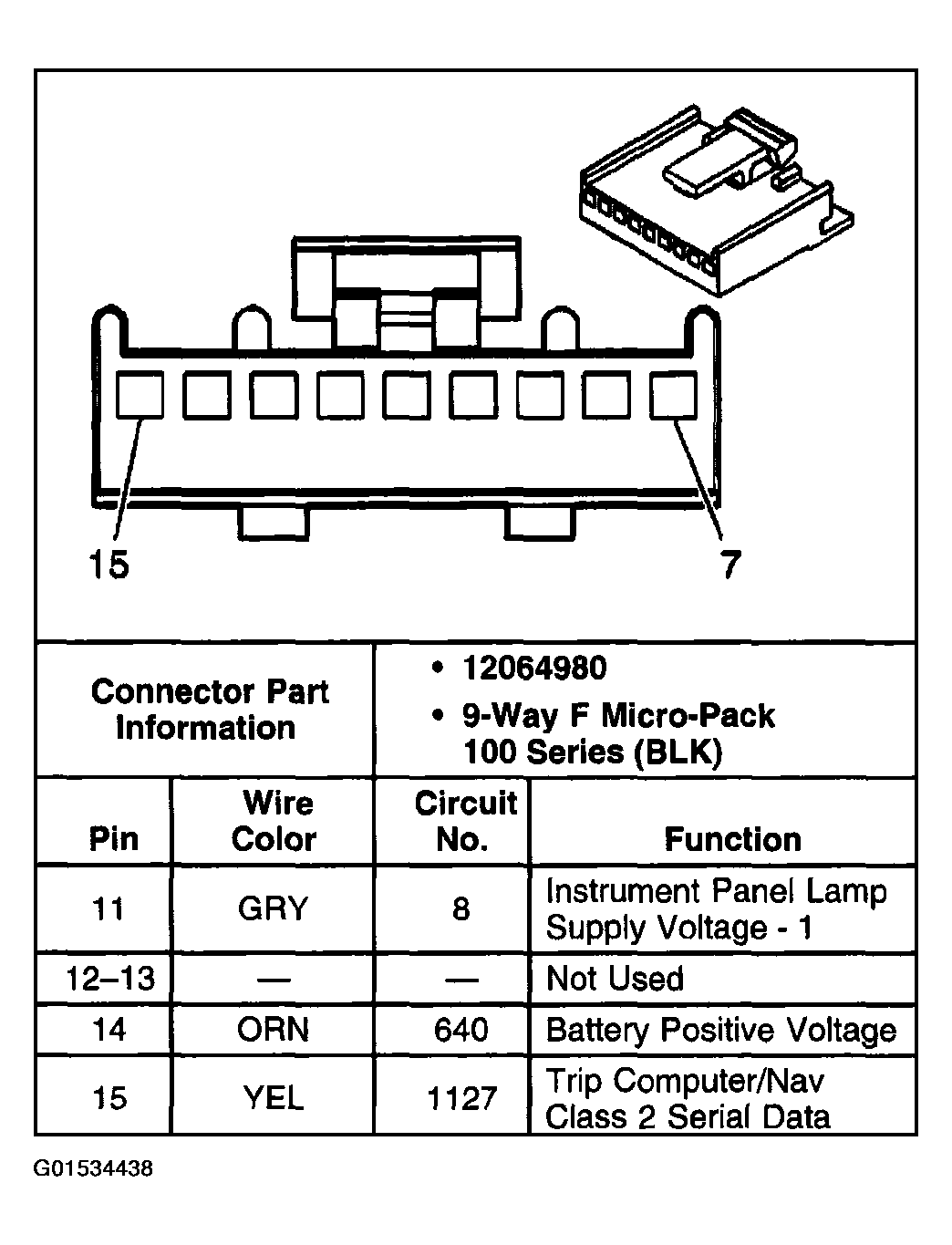

Fig 7: Driver Information Center Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

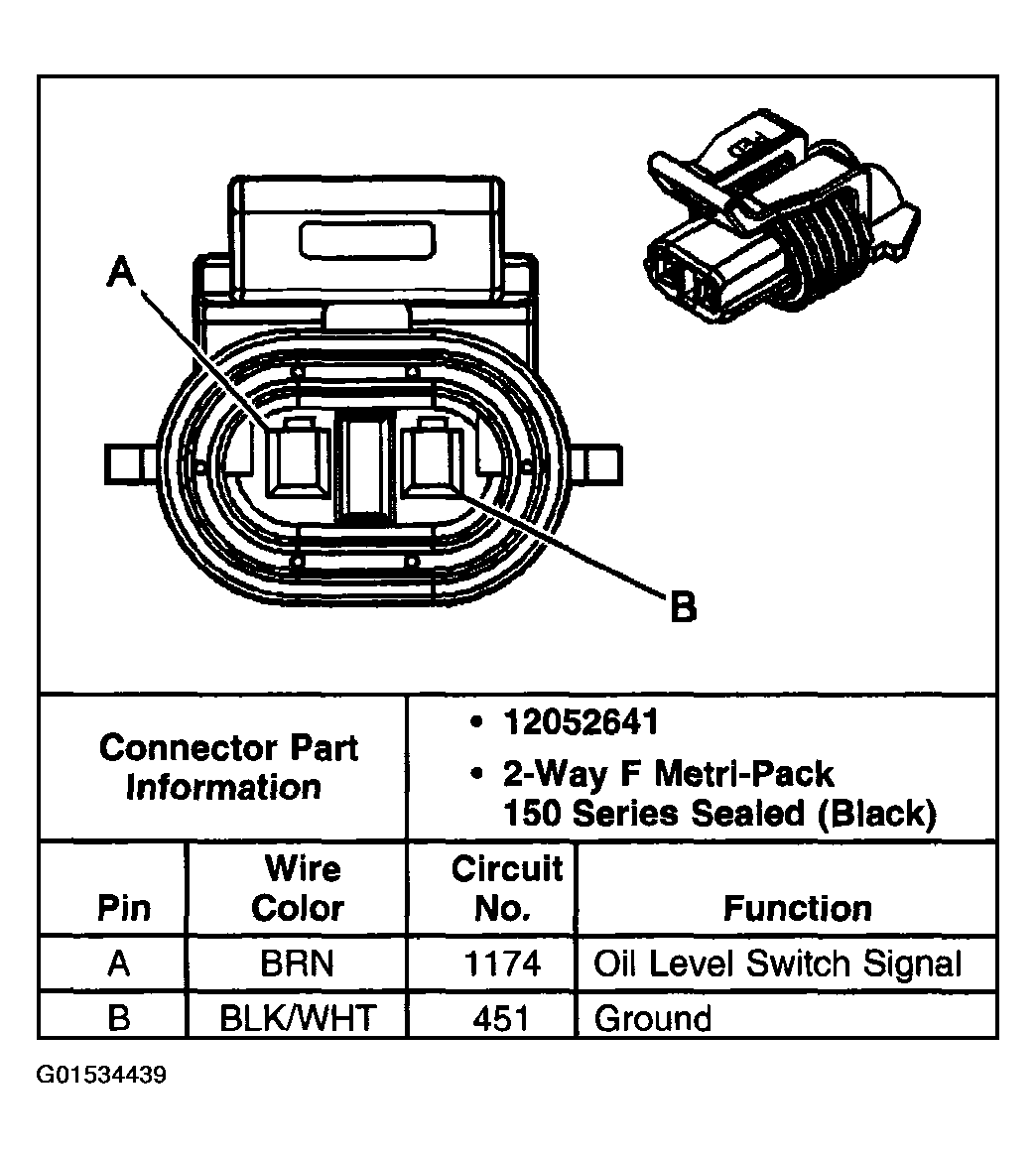

Fig 8: Engine Oil Level Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

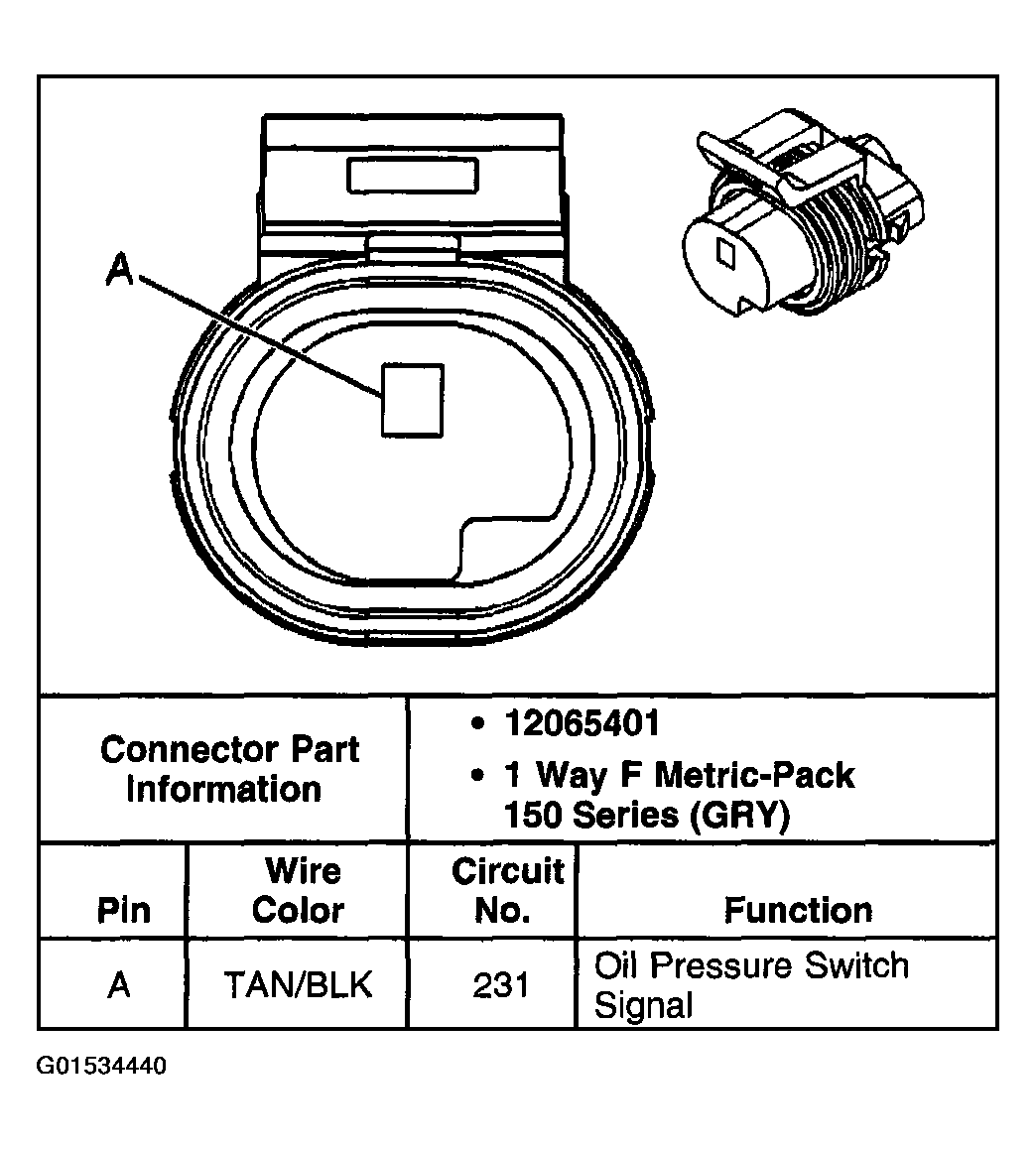

Fig 9: Engine Oil Pressure Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

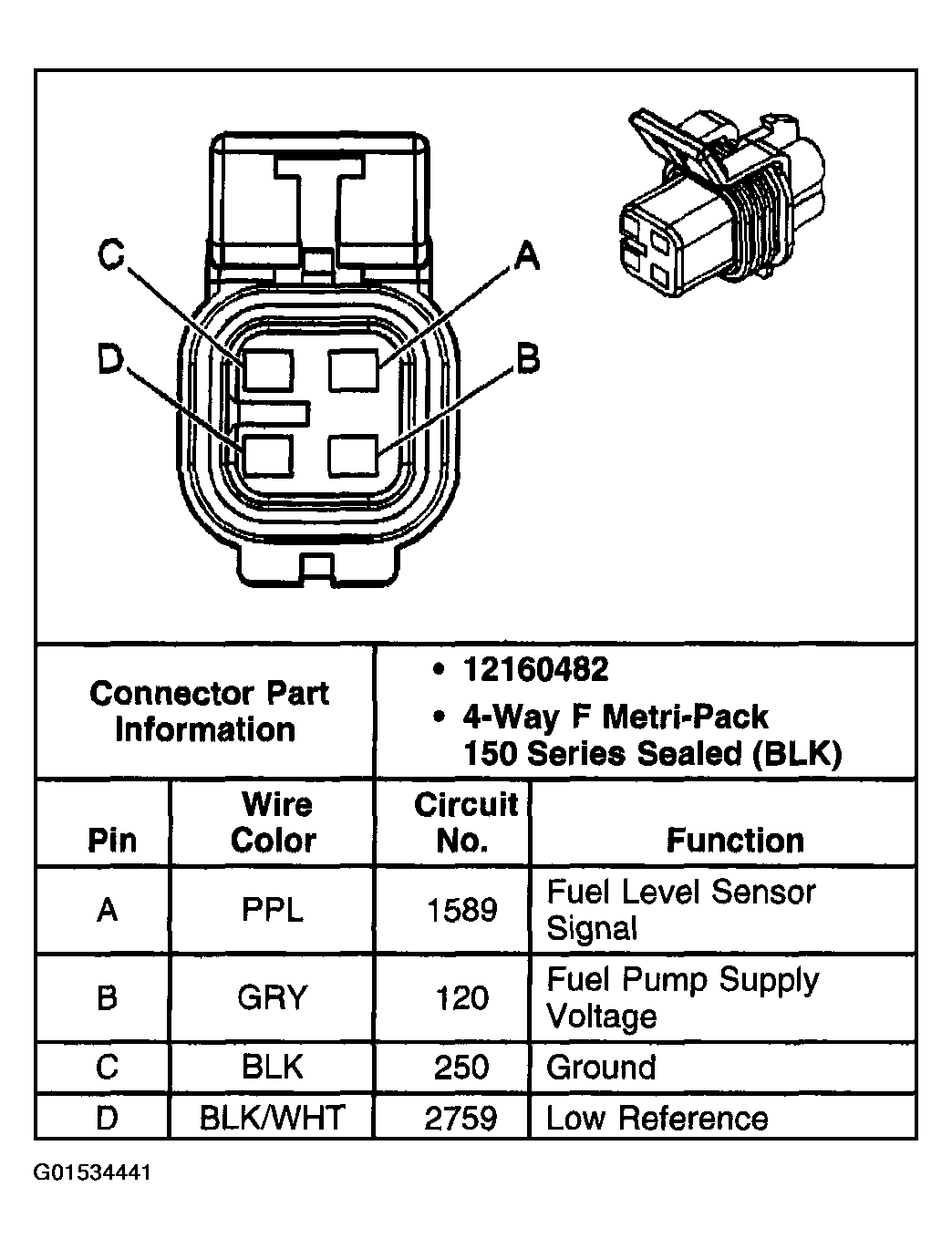

Fig 10: Fuel Pump Sender Unit C1 Connector End View

Courtesy of GENERAL MOTORS CORP.

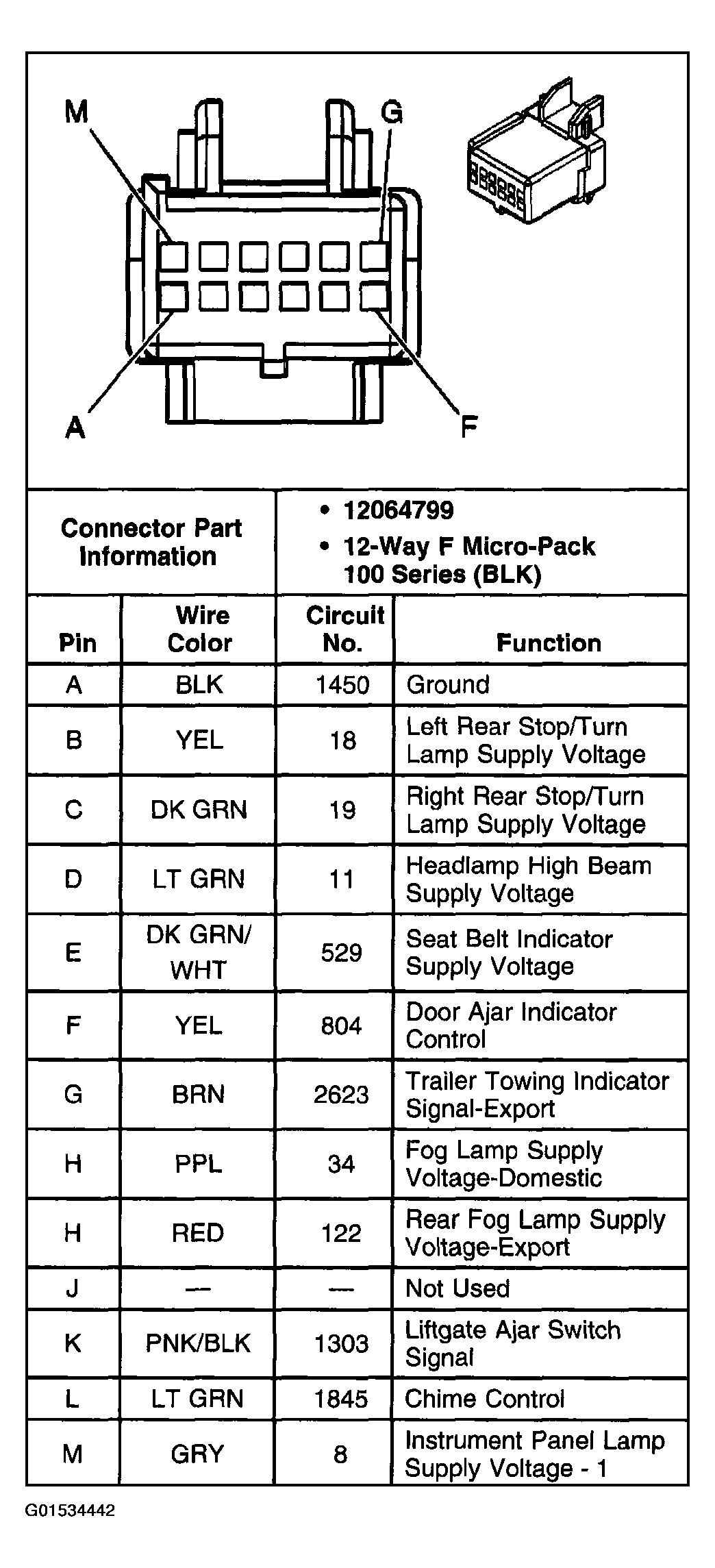

Fig 11: Instrument Panel Cluster Connector C1 Connector End View

Courtesy of GENERAL MOTORS CORP.

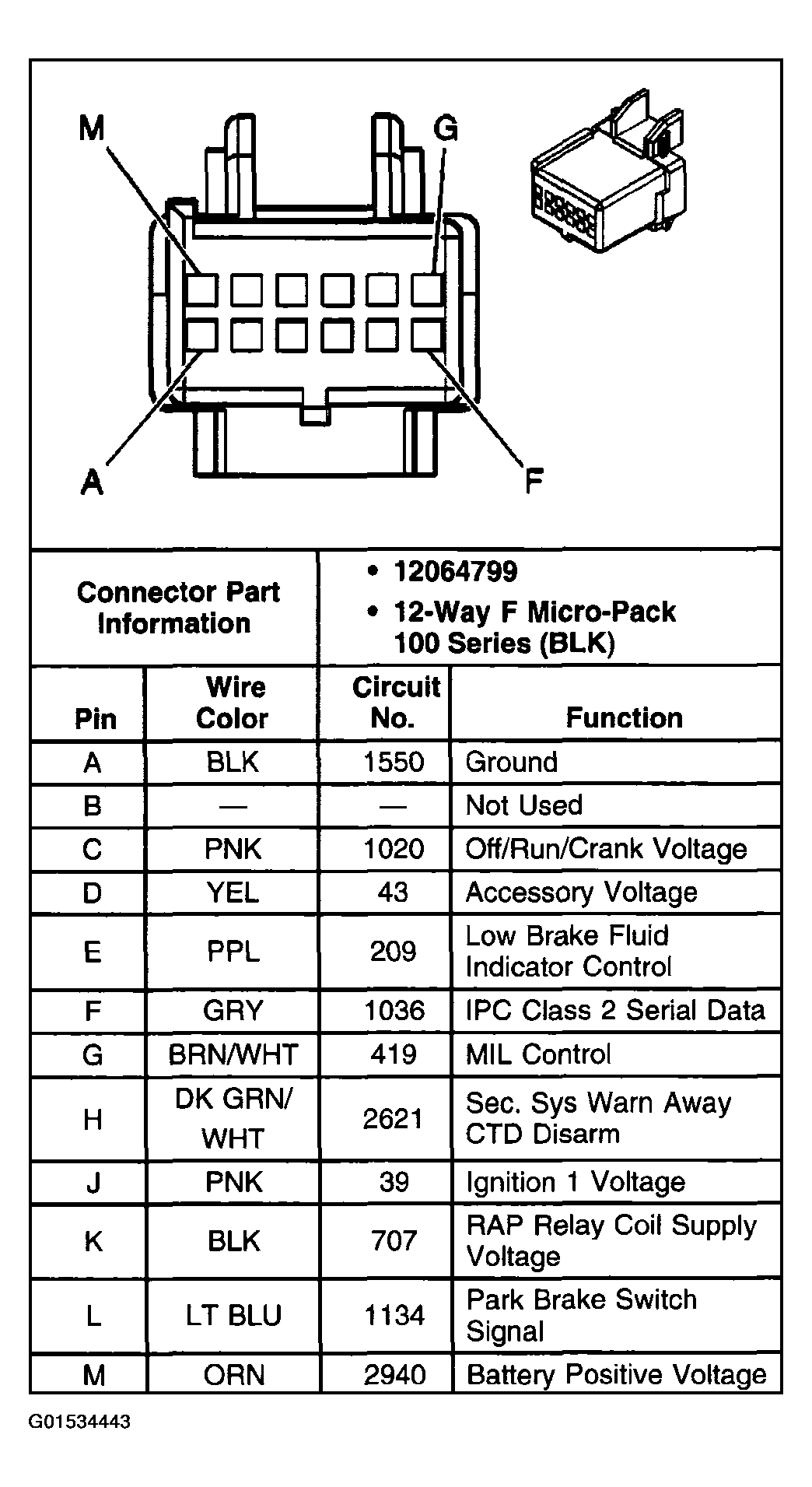

Fig 12: Instrument Panel Cluster Connector C2 Connector End View

Courtesy of GENERAL MOTORS CORP.
