Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

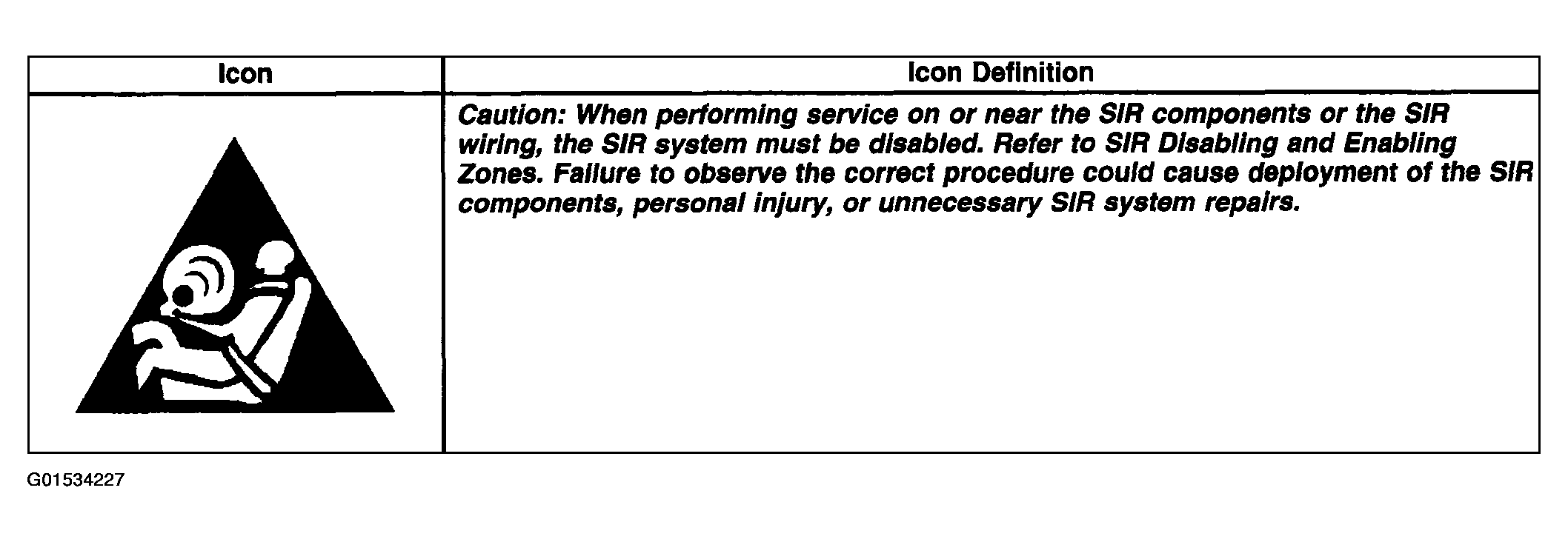

Fig 1: Entertainment Schematic Icon

Courtesy of GENERAL MOTORS CORP.

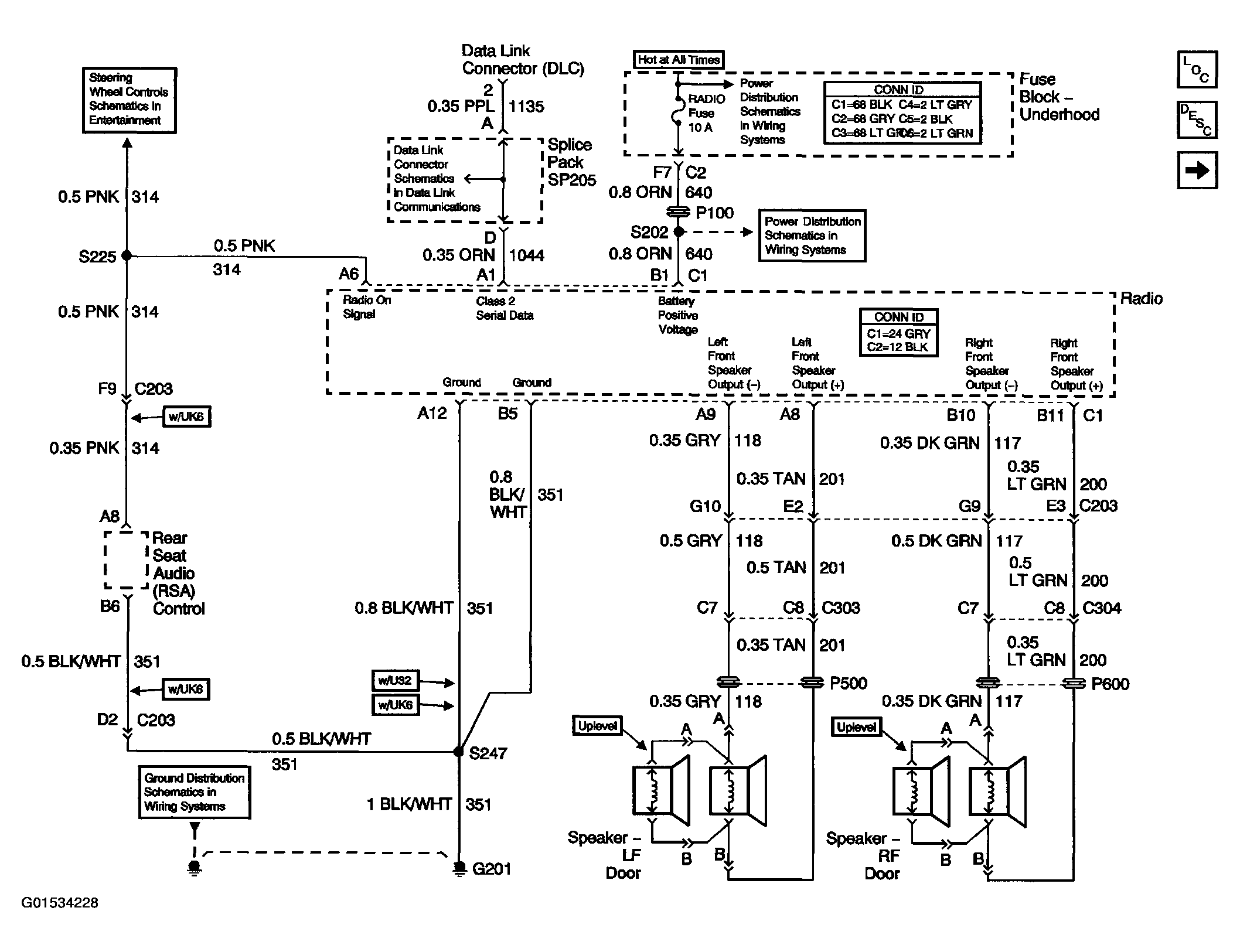

Fig 2: Radio/Audio System Schematic (Power and Grounds)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Radio/Audio System Schematic (Windshield Antenna)

Courtesy of GENERAL MOTORS CORP.

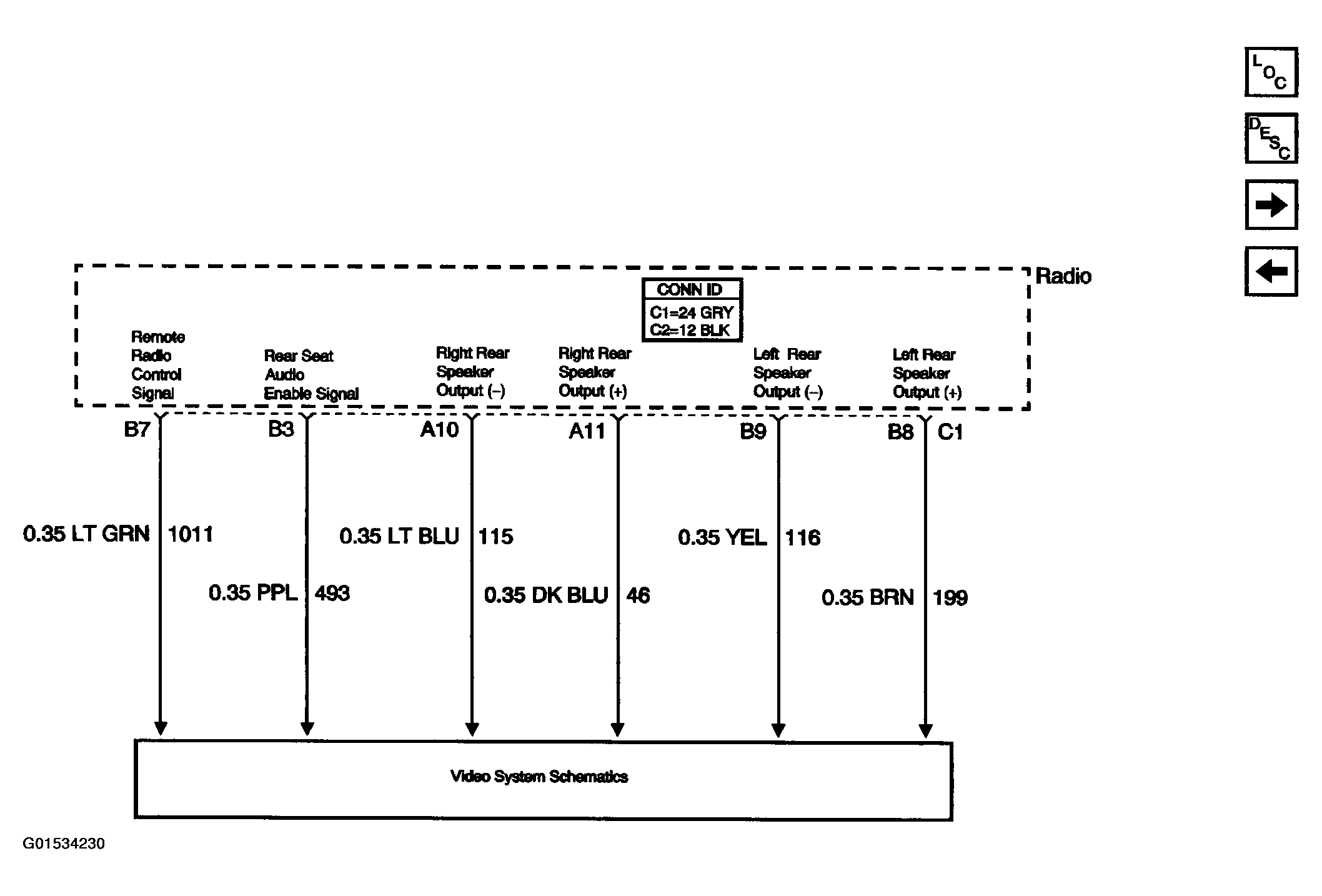

Fig 4: Radio/Audio System Schematic (Rear Seat Audio (RSA) Controls w/U32)

Courtesy of GENERAL MOTORS CORP.

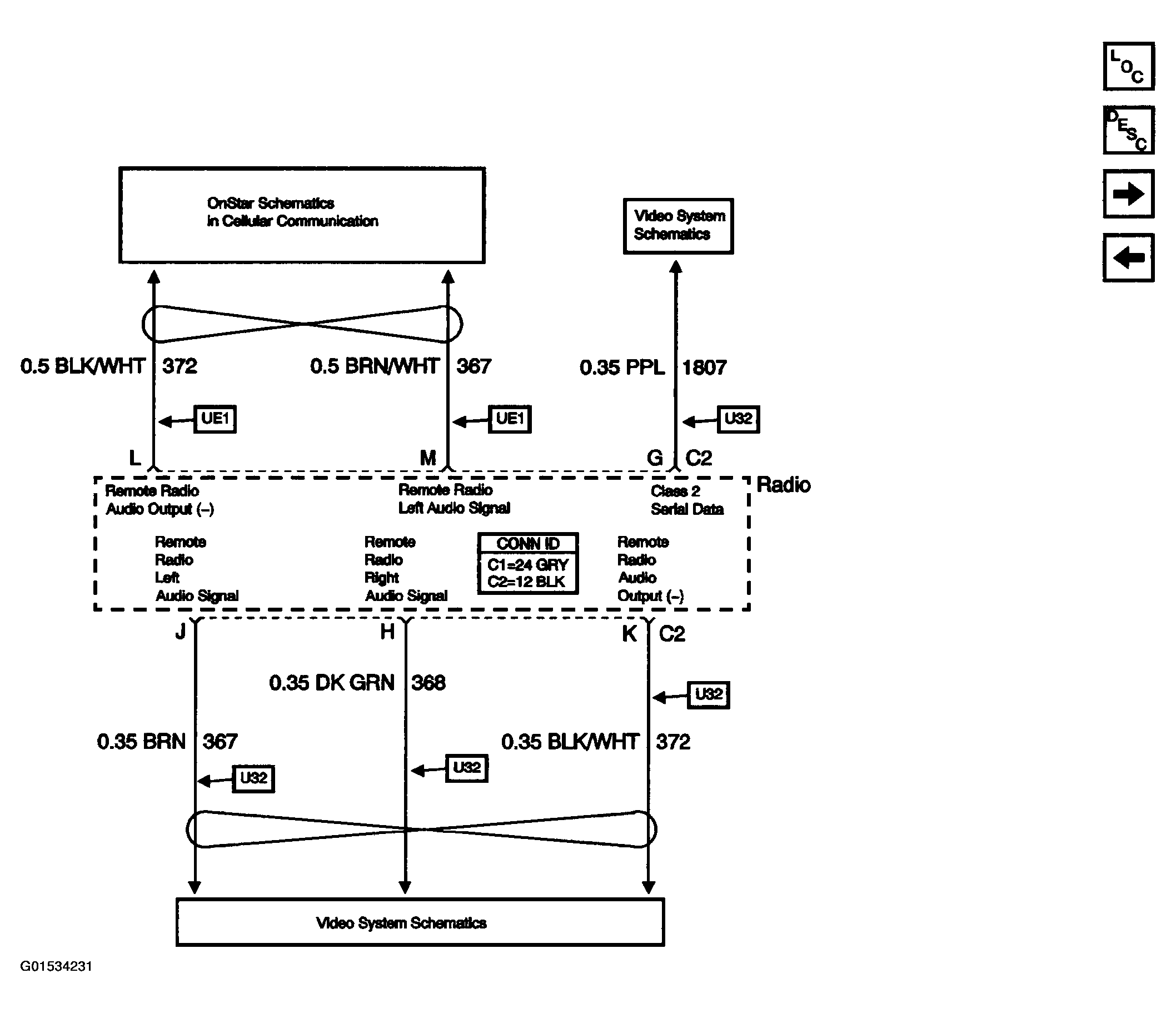

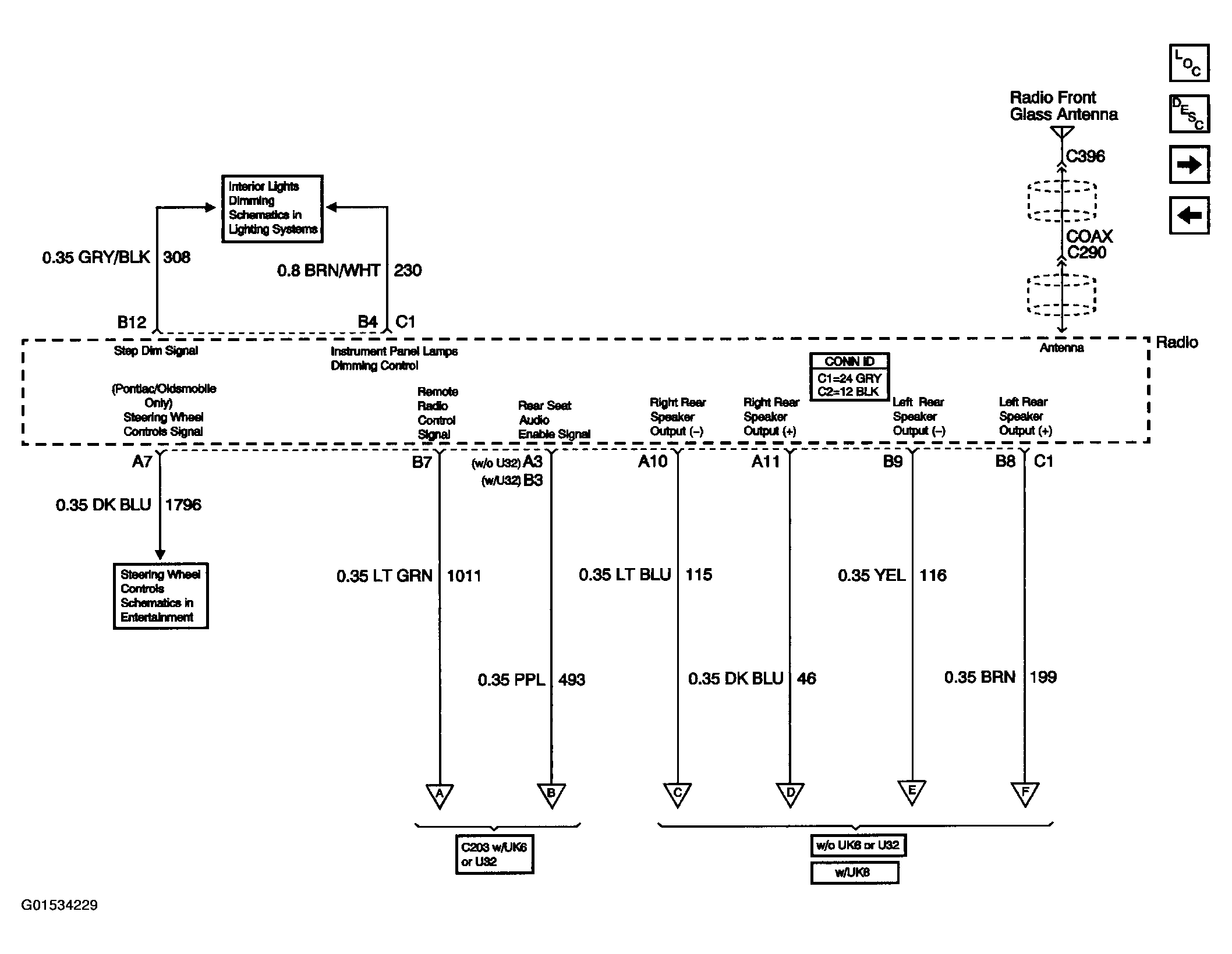

Fig 5: Radio/Audio System Schematic (Radio and Class 2 Serial Data)

Courtesy of GENERAL MOTORS CORP.

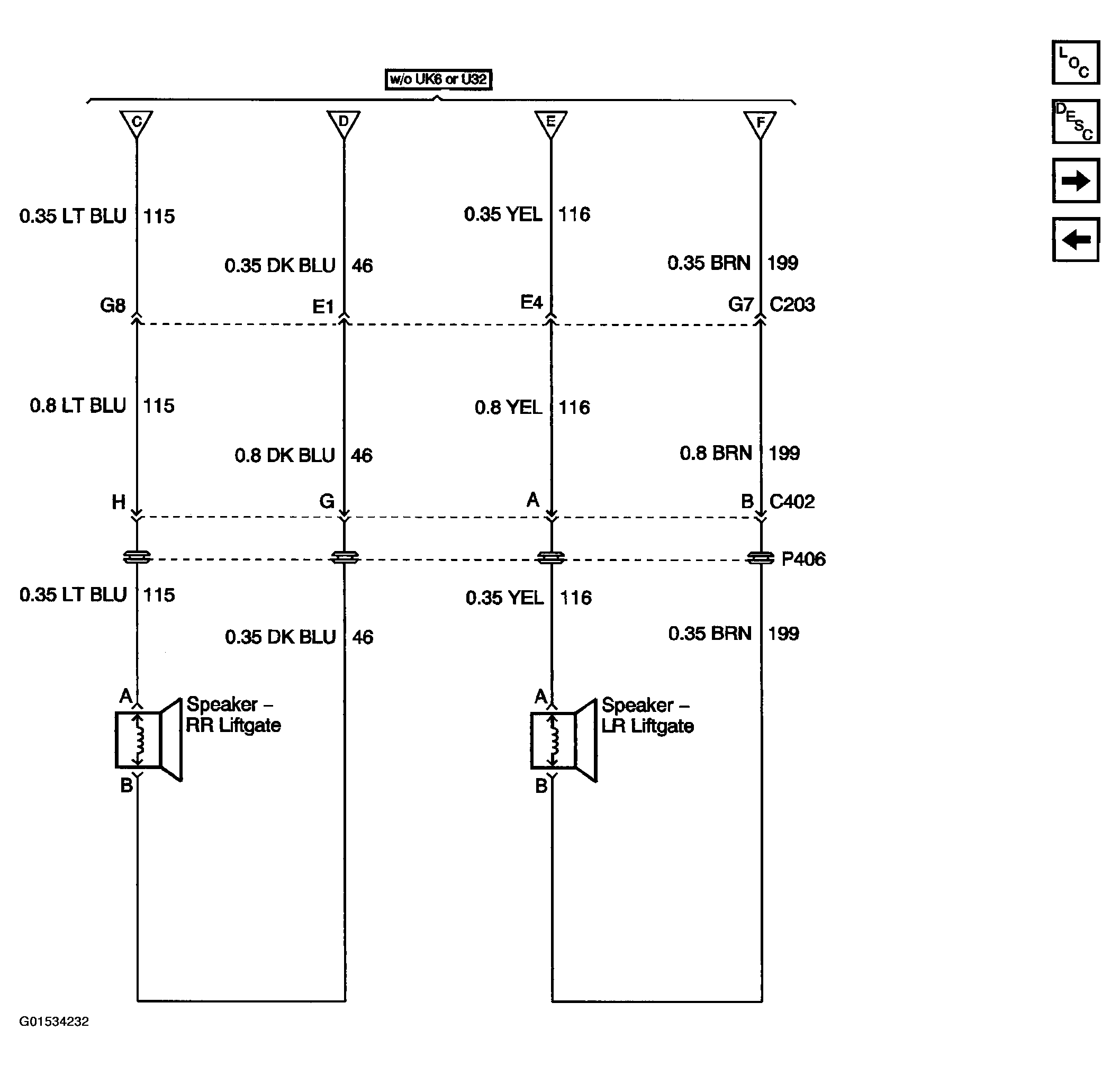

Fig 6: Radio/Audio System Schematic (Right and Left Radio Liftgate Speaker (Base))

Courtesy of GENERAL MOTORS CORP.

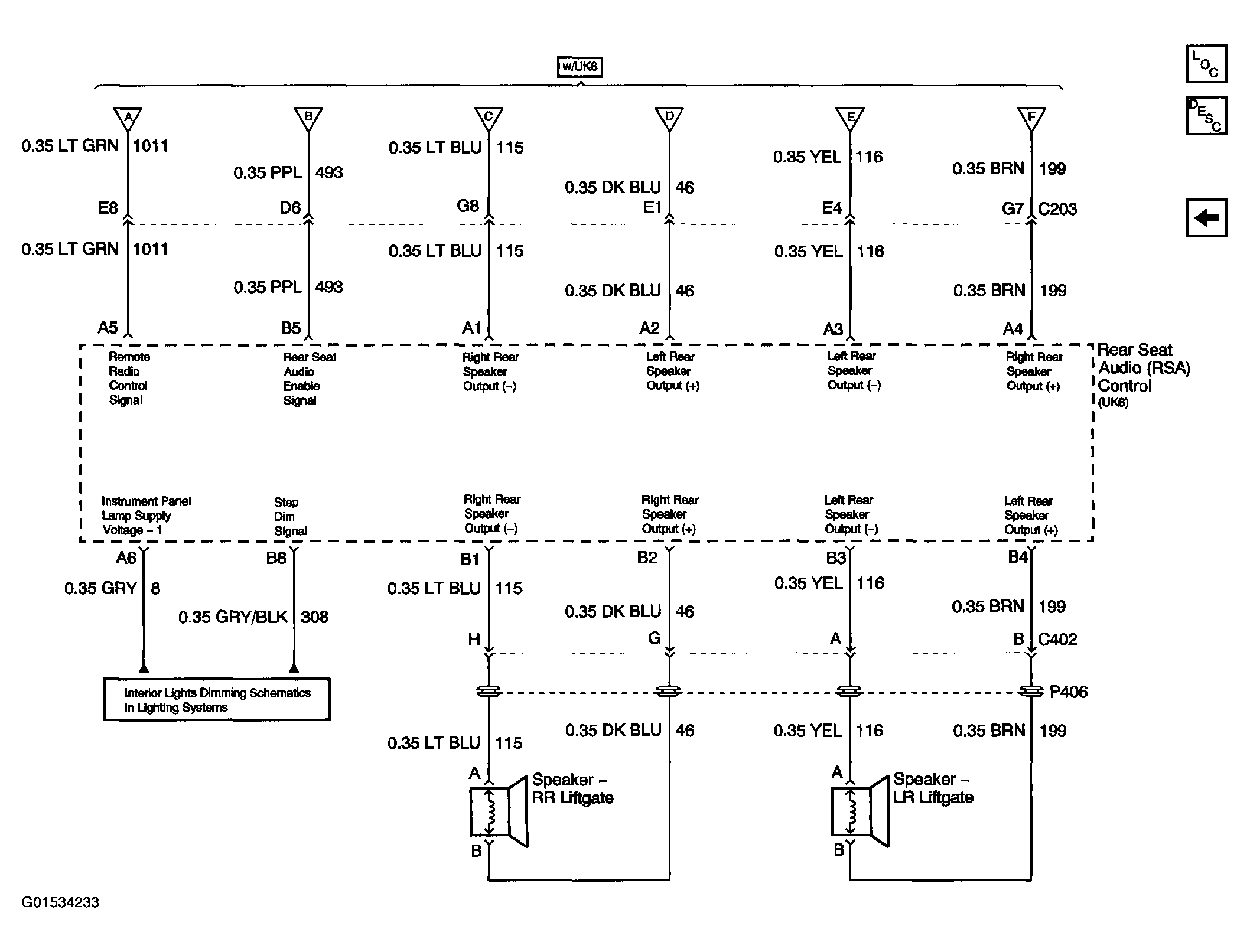

Fig 7: Radio/Audio System Schematic (Right and Left Radio Liftgate Speakers (Uplevel))

Courtesy of GENERAL MOTORS CORP.

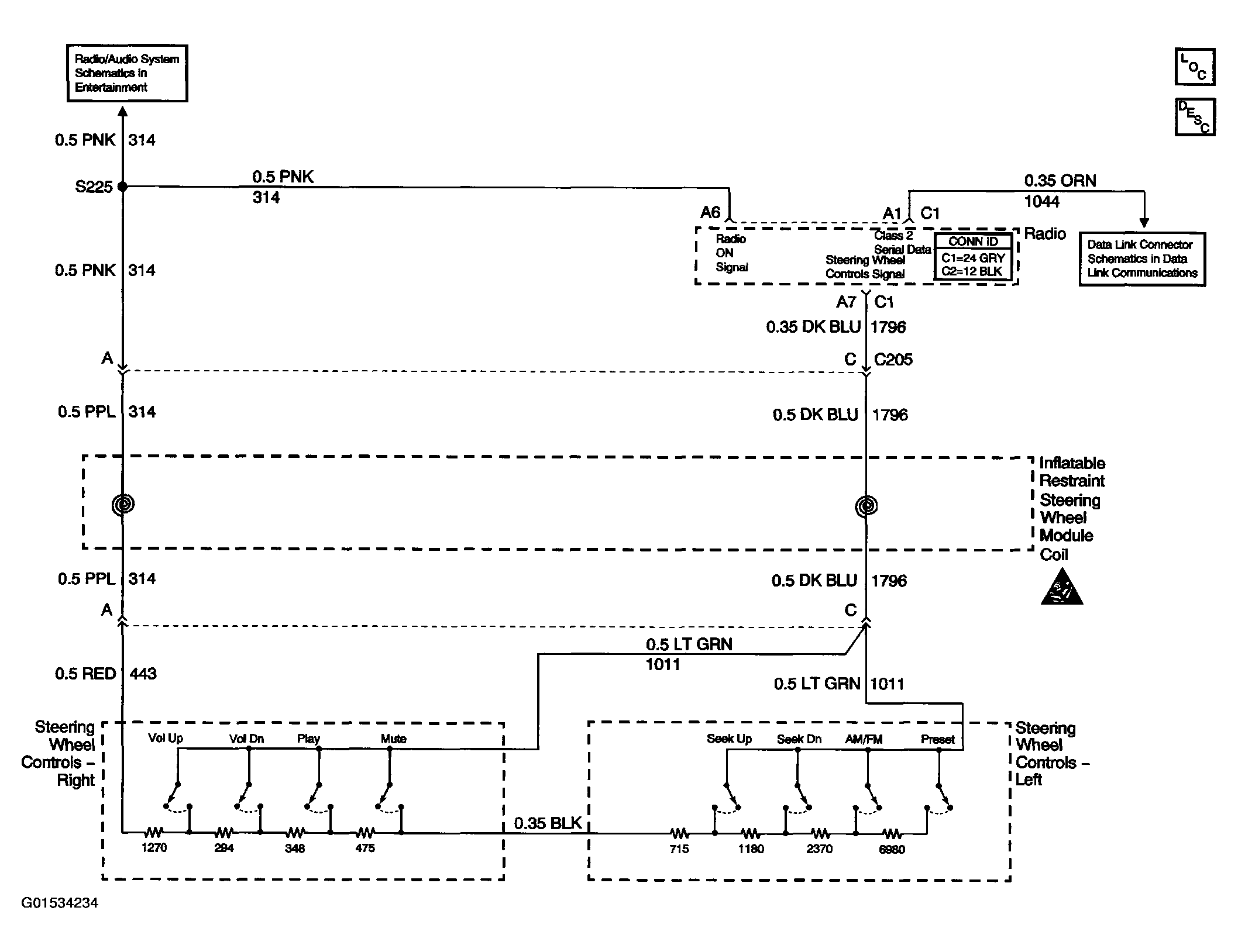

Fig 8: Steering Wheel Controls Schematic

Courtesy of GENERAL MOTORS CORP.

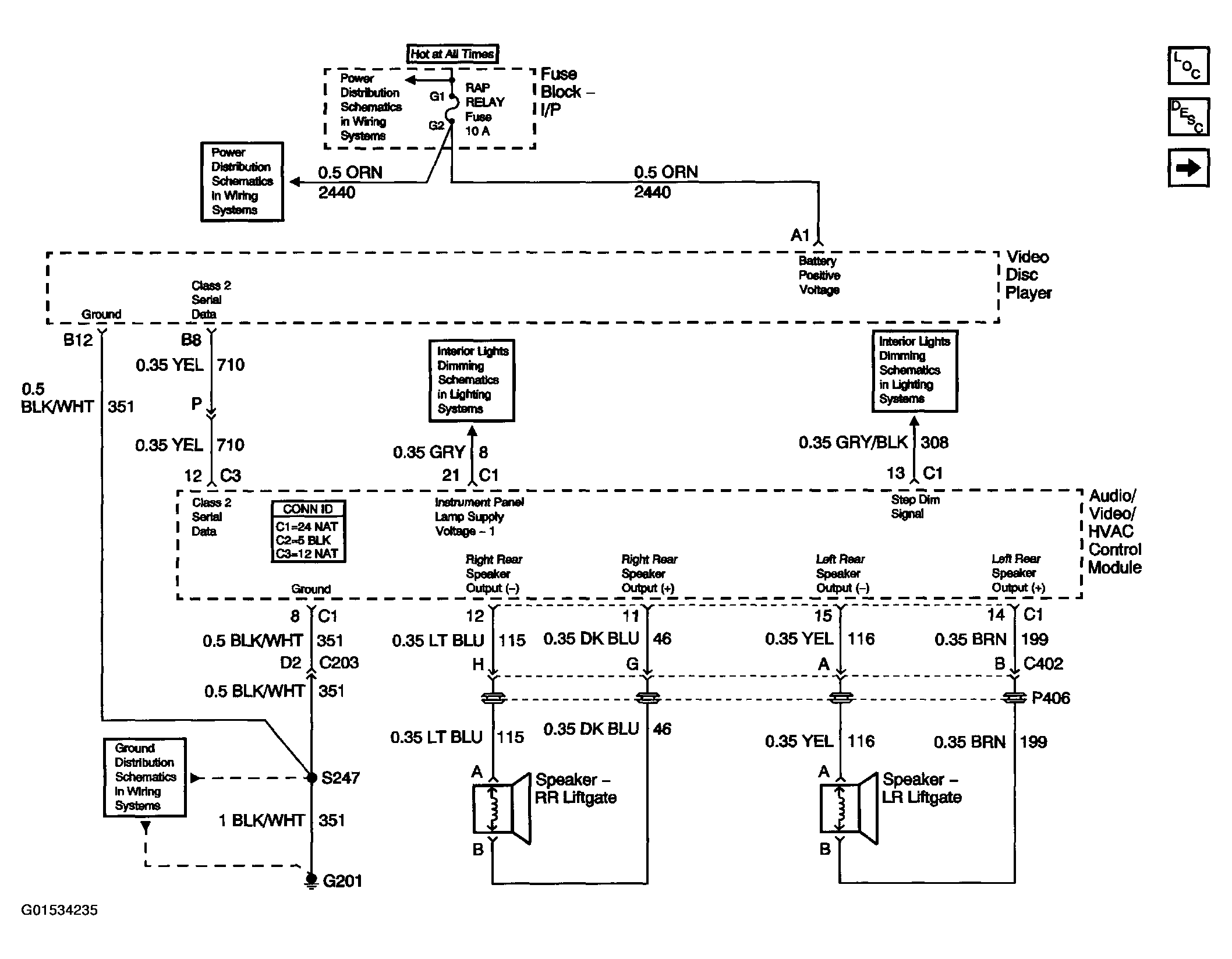

Fig 9: Video System Schematic (Power, Ground, Video Disc Player and Rear Video/Audio HVAC Control Module)

Courtesy of GENERAL MOTORS CORP.

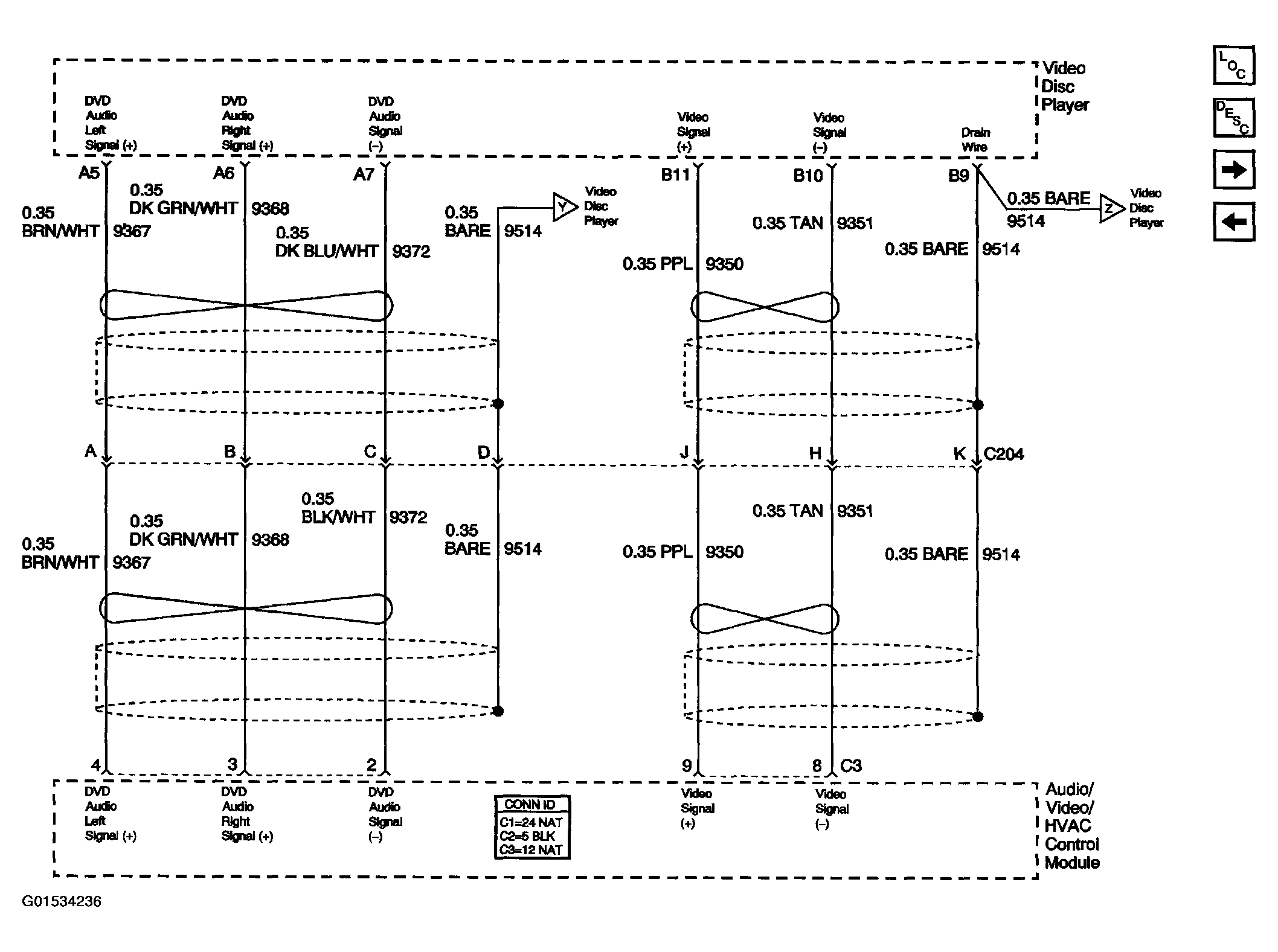

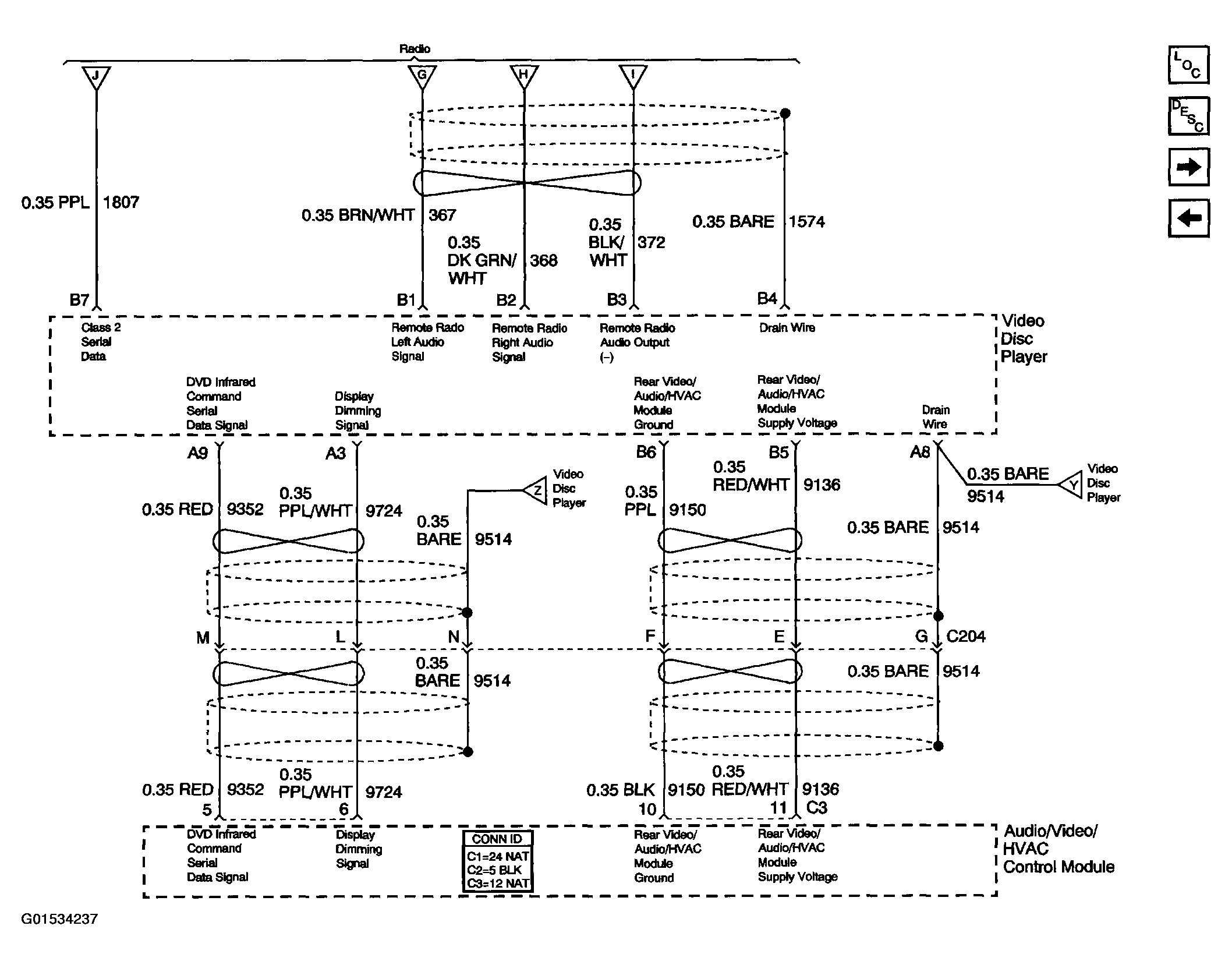

Fig 10: Video System Schematic (Video Disc Player and Rear Video/Audio/HAC Module, (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 11: Video System Schematic (Video Disc Player and Rear Video/Audio HVAC Control Module, (2 of 2)

Courtesy of GENERAL MOTORS CORP.

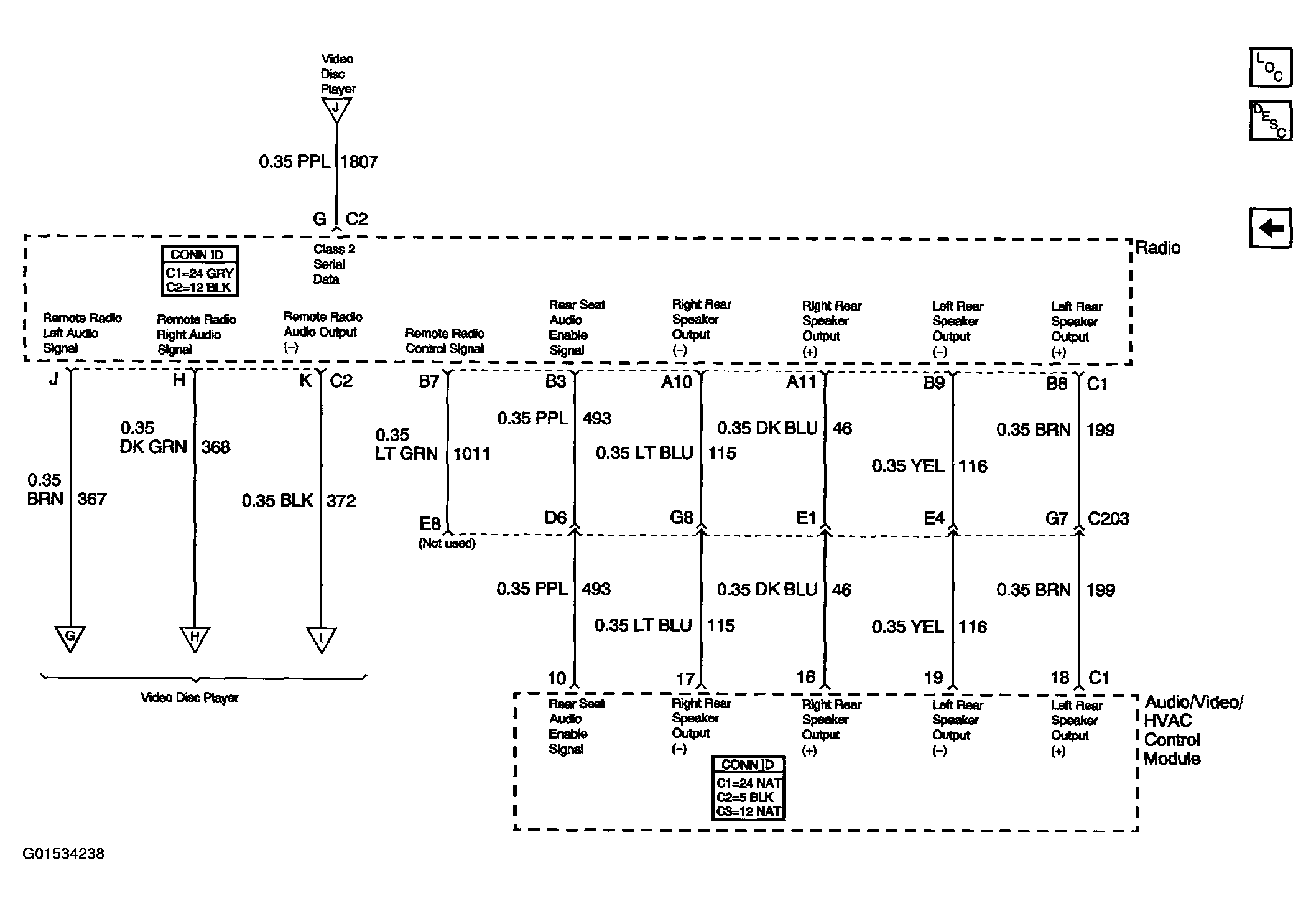

Fig 12: Video System Schematic (Radio (U32))

Courtesy of GENERAL MOTORS CORP.
