Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  in Body Rear End.
  2. Remove the rear radio speaker (1):
    1. Push on the top tab.
    2. Pull the speaker (1) from the liftgate (2).
  3. Disconnect the electrical connector from the rear radio speaker.

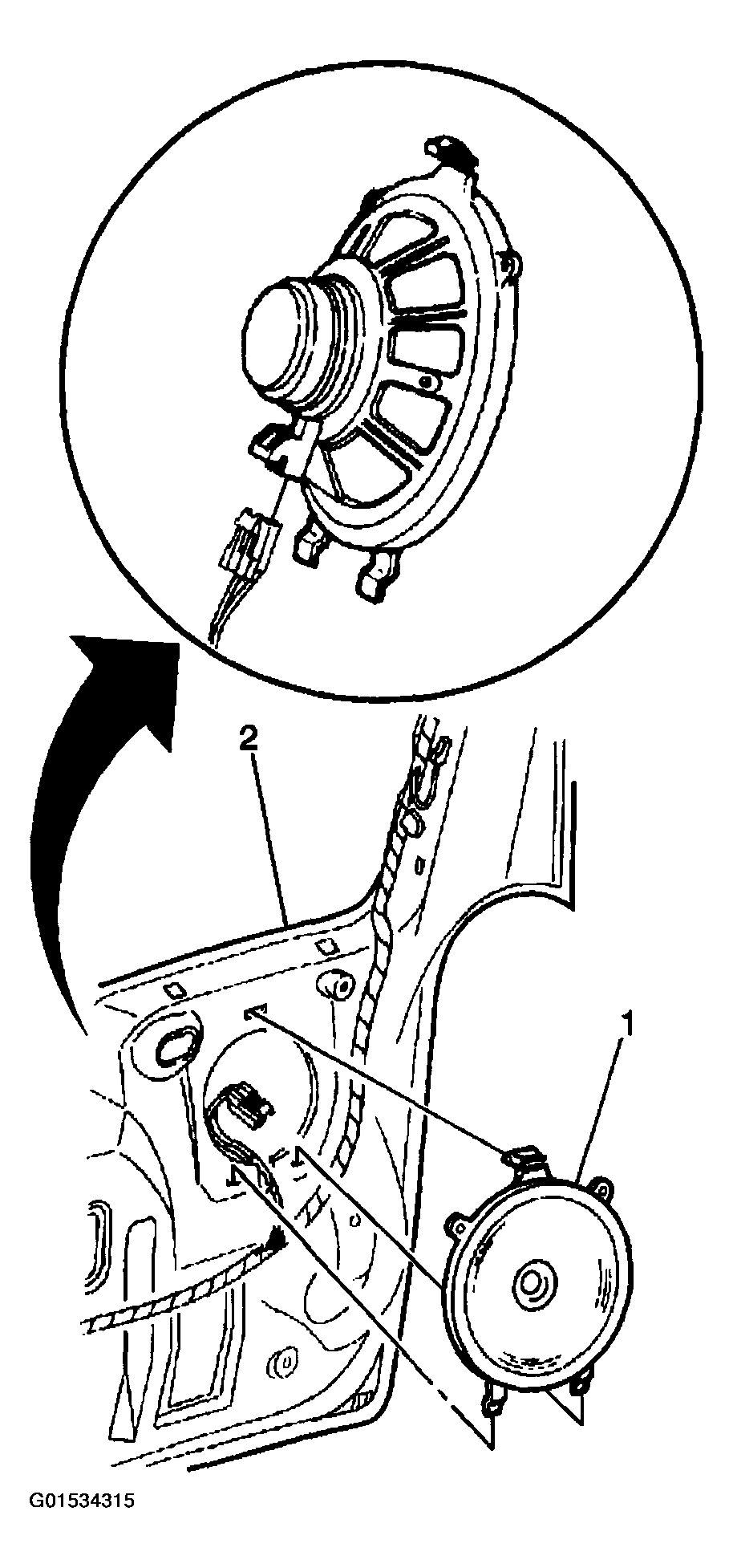

    Fig 1: Removing Rear Radio Speaker
    G01534315Courtesy of GENERAL MOTORS CORP.
