Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the rear radio speaker.
  2. Install the rear radio speaker (1):
    1. Insert the tabs into the lower slots.
    2. Push the upper tab into the slot on the liftgate (2).
  3. Install the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  in Body Rear End.

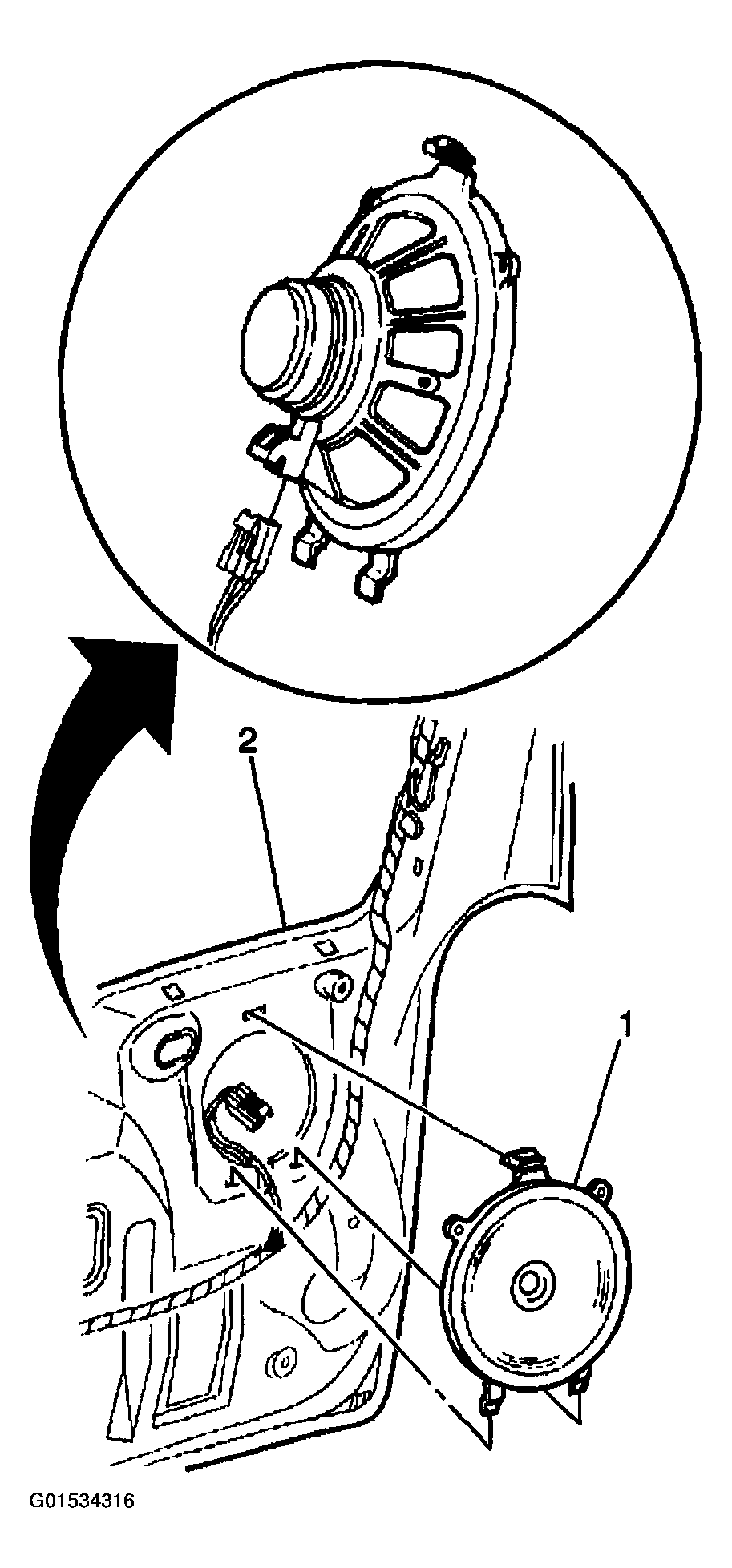

    Fig 1: Installing Rear Radio Speaker
    G01534316Courtesy of GENERAL MOTORS CORP.
