Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  in Doors.
  2. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  in Doors.
  3. Disconnect the electrical connector.
  4. Unsnap the speaker from the lock module.

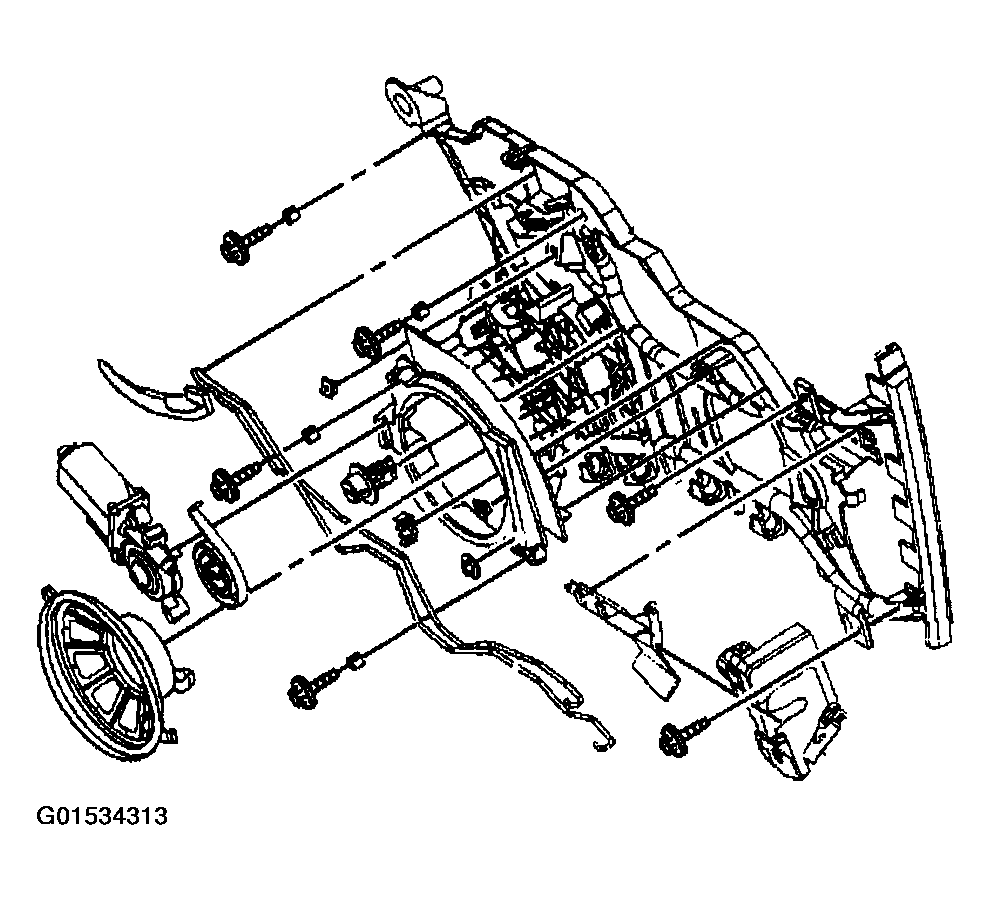

    Fig 1: Unsnapping Speaker From Lock Module
    G01534313Courtesy of GENERAL MOTORS CORP.
