Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important: Do not exchange digital radio receivers between vehicles. Exchanging digital receivers between vehicles will activate the digital radio theftlock. "XM theftlockU" will be displayed.

Remove the I/P insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages, and Console.

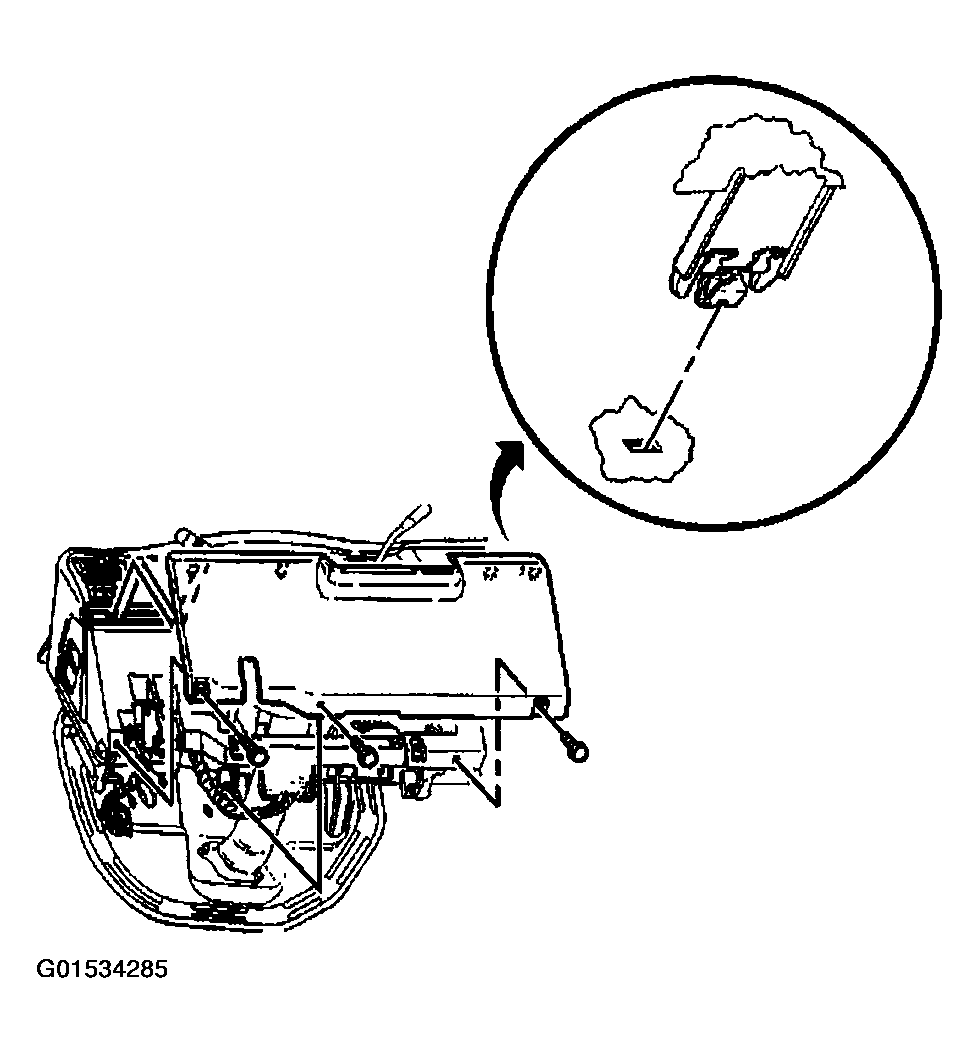

Fig 1: Removing I/P Insulator
Courtesy of GENERAL MOTORS CORP.
Remove the receiver bracket nuts.
Remove the receiver from the bracket.
Disengage the electrical connector and the antenna connectors from the XM radio receiver.

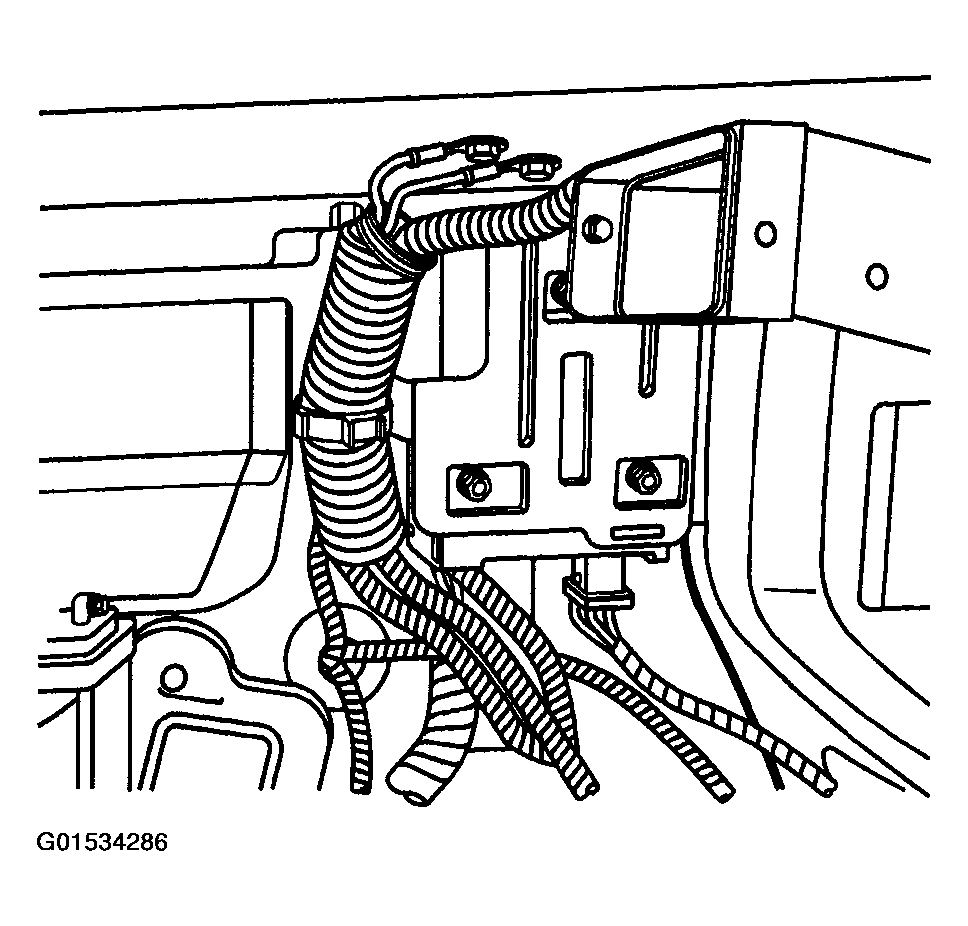

Fig 2: Disengaging Electrical Connector And Antenna Connectors From XM Radio Receiver
Courtesy of GENERAL MOTORS CORP.
Remove the XM digital radio receiver from the vehicle.

Fig 3: Removing XM Digital Radio Receiver From Vehicle
Courtesy of GENERAL MOTORS CORP.
