Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headliner. Refer to HEADLINER REPLACEMENT  in Interior Trim.
  2. Disconnect the antenna cable from the antenna base cable connector.
  3. Remove the antenna cable retainer clips.

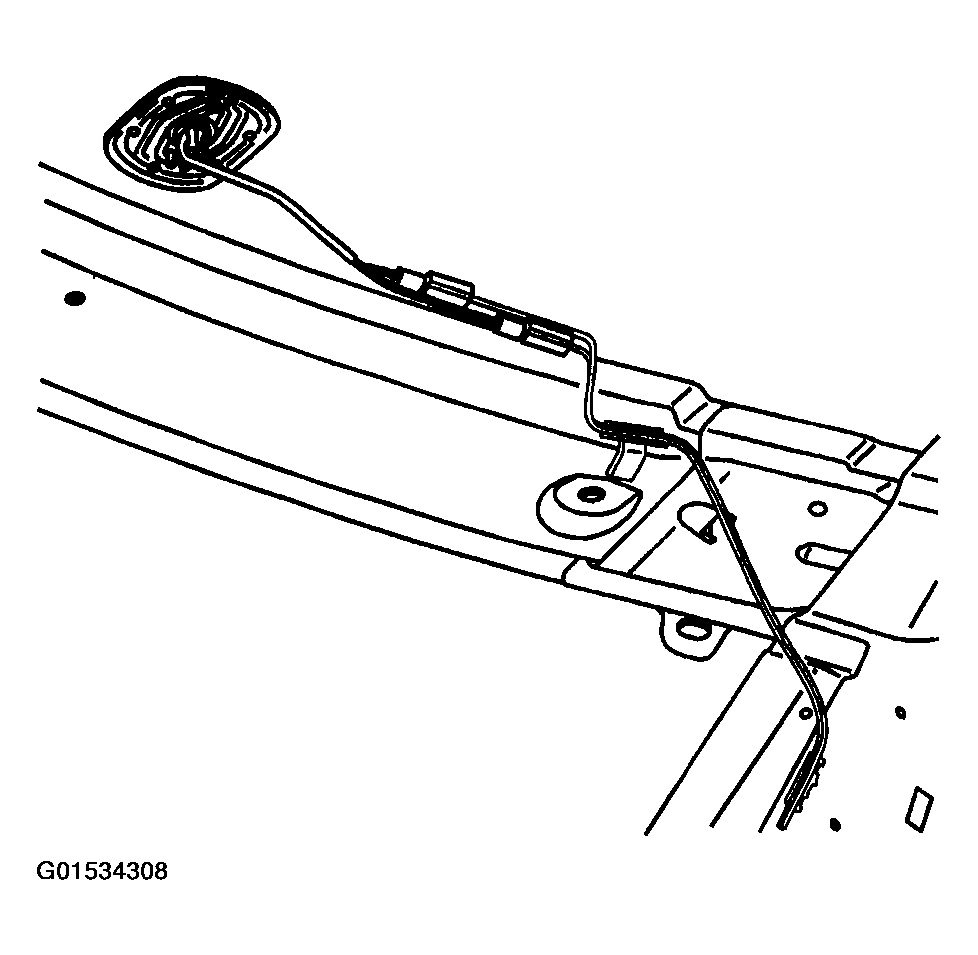

    Fig 1: Removing Antenna Cable Retainer Clips
    G01534308Courtesy of GENERAL MOTORS CORP.
  4. Open the right side end cap from the I/P to disconnect the cable connectors.
  5. Disconnect the antenna cable from the digital radio receiver.
  6. Remove the antenna cable retainers from the receiver bracket.
  7. Remove the antenna cable.

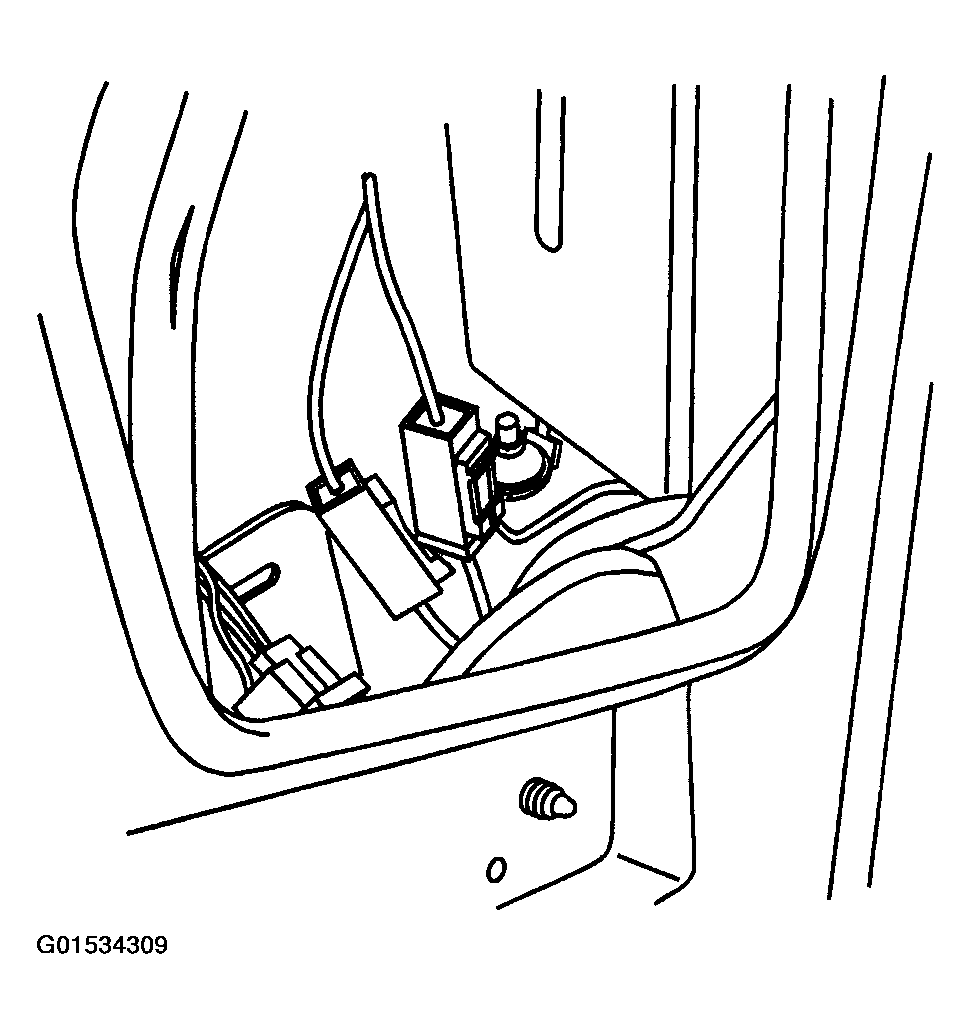

    Fig 2: Removing Antenna Cable
    G01534309Courtesy of GENERAL MOTORS CORP.
