Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the antenna cable retainers to the receiver bracket.
  2. Connect the antenna cable to the digital radio receiver.

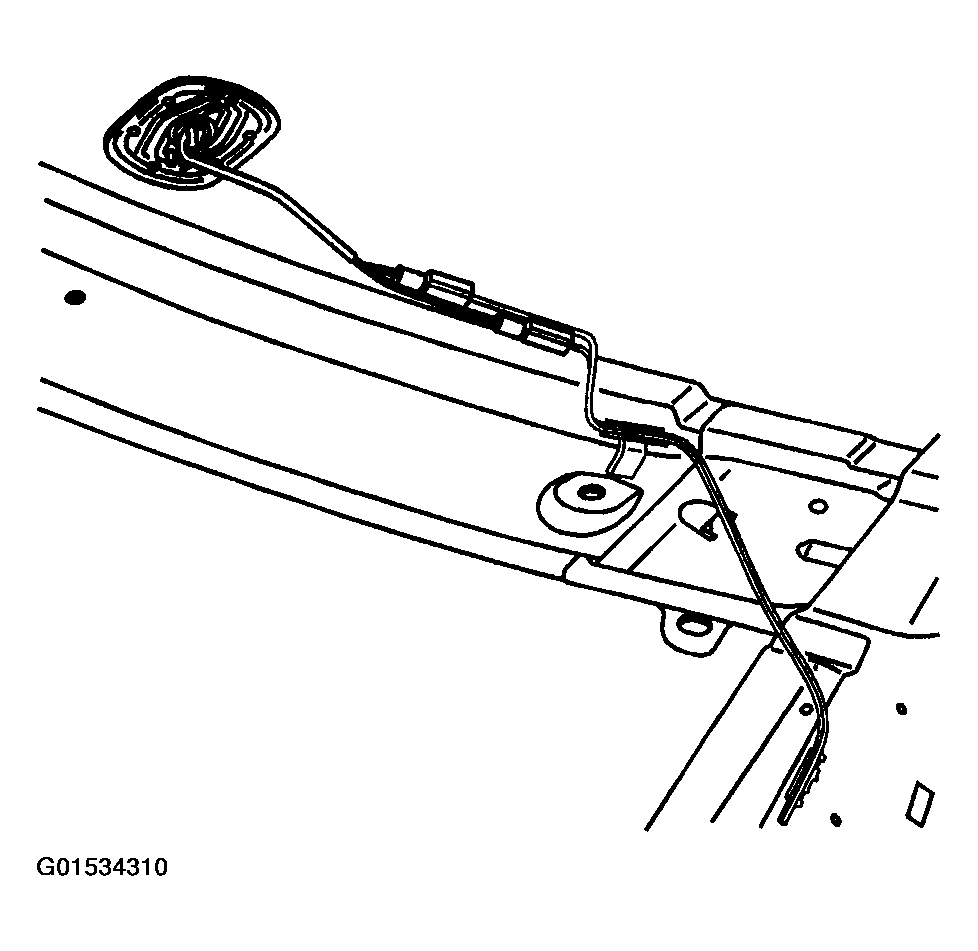

    Fig 1: Installing Antenna Cable Retainers To Receiver Bracket
    G01534310Courtesy of GENERAL MOTORS CORP.
  3. Install the cable connectors to the right side end cap on the I/P.
  4. Install the right rear compartment trim panel.

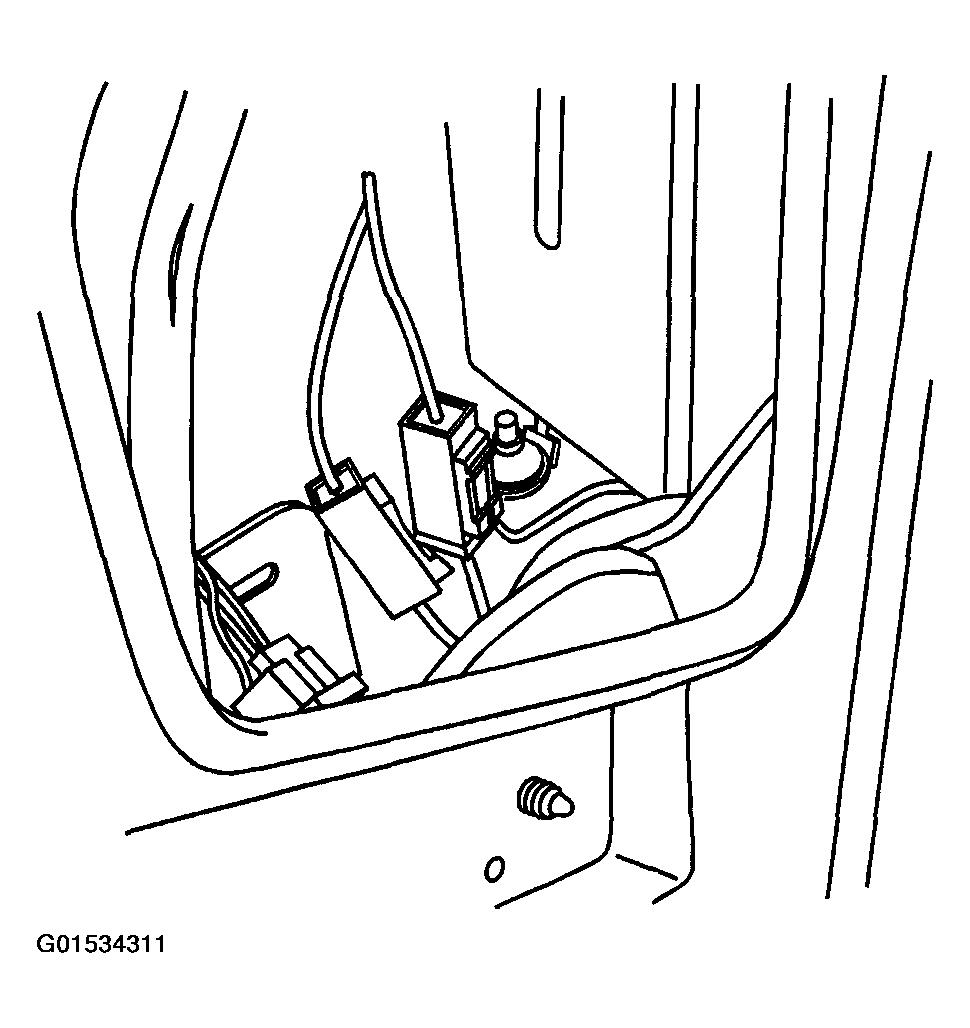

    Fig 2: Installing Cable Connectors To Right Side End Cap On I/P
    G01534311Courtesy of GENERAL MOTORS CORP.
  5. Install the antenna cable retainer clips.
  6. Connect the antenna cable to the antenna base cable connector.
  7. Install the headliner. Refer to HEADLINER REPLACEMENT  in Interior Trim.

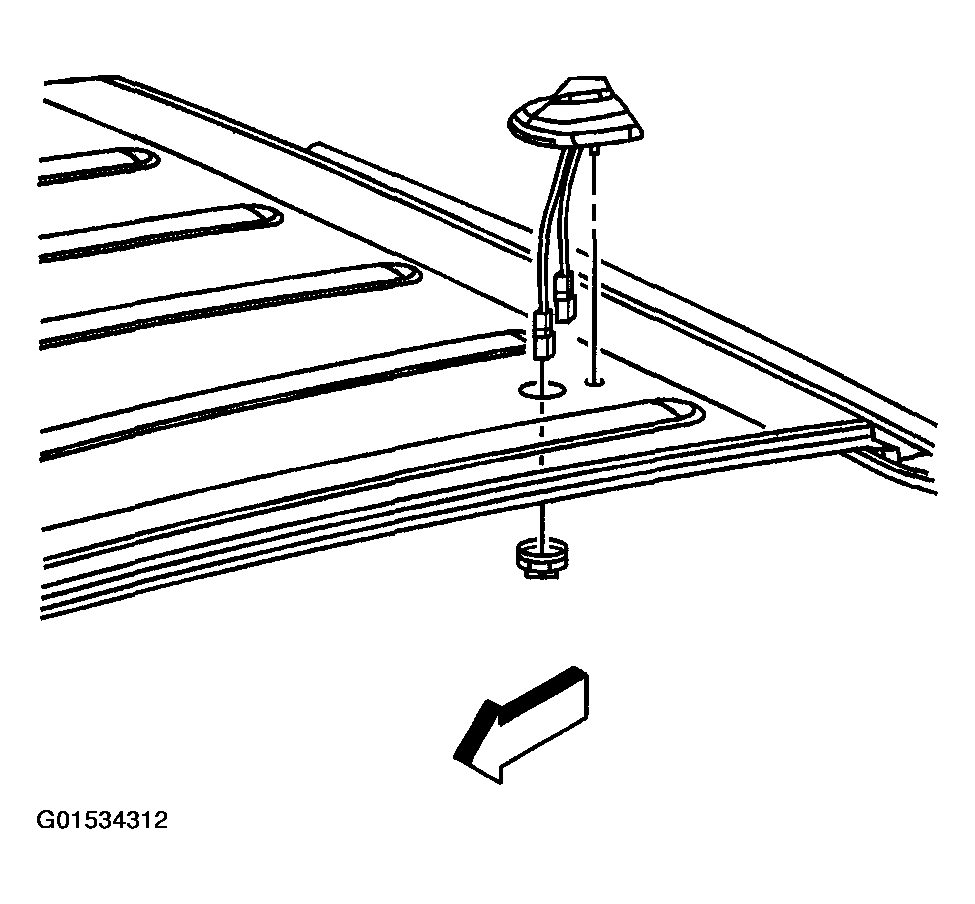

    Fig 3: Installing Antenna Cable Retainer Clips
    G01534312Courtesy of GENERAL MOTORS CORP.
