Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a small, flat-bladed tool in order to press on the locking tables and release the rear seat audio controls from the rear overhead console.
  2. Disconnect the electrical connectors.
  3. Remove the rear seat audio controls from the rear overhead console.

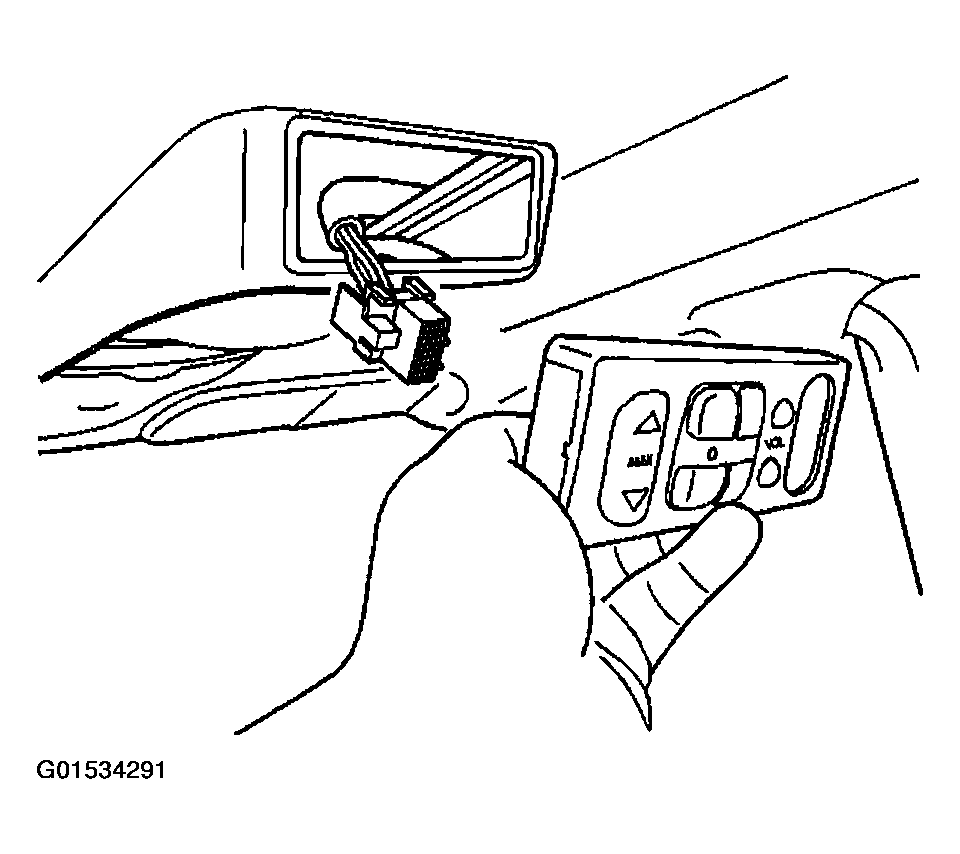

    Fig 1: Removing Rear Seat Audio Controls From Rear Overhead Console
    G01534291Courtesy of GENERAL MOTORS CORP.
