Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the rear seat audio controls.
  2. Align the rear seat audio controls to the rear overhead console.
  3. Press the rear seat audio controls into the rear overhead console until fully seated and locked in.

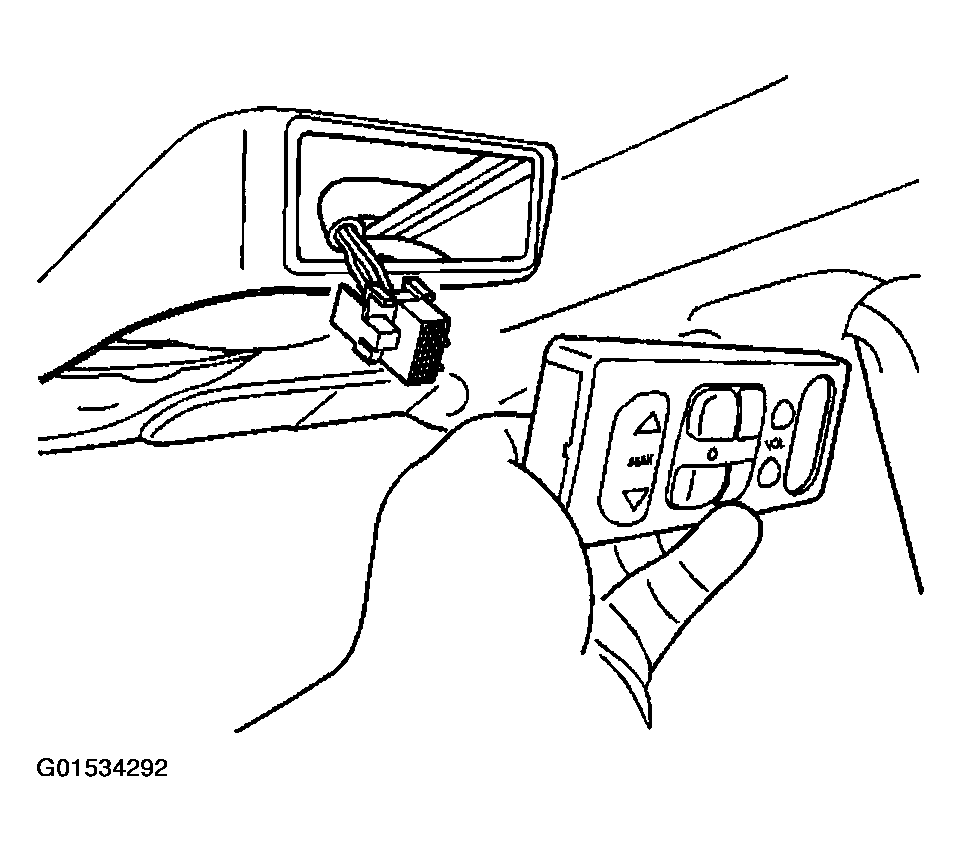

    Fig 1: Installing Rear Seat Audio Controls To Rear Overhead Console
    G01534292Courtesy of GENERAL MOTORS CORP.
