Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route the antenna base cables through the roof opening.
    Fig 1: Routing Antenna Base Cables Through Roof Opening
    G01534301Courtesy of GENERAL MOTORS CORP.
  2. Install the antenna base to the roof.

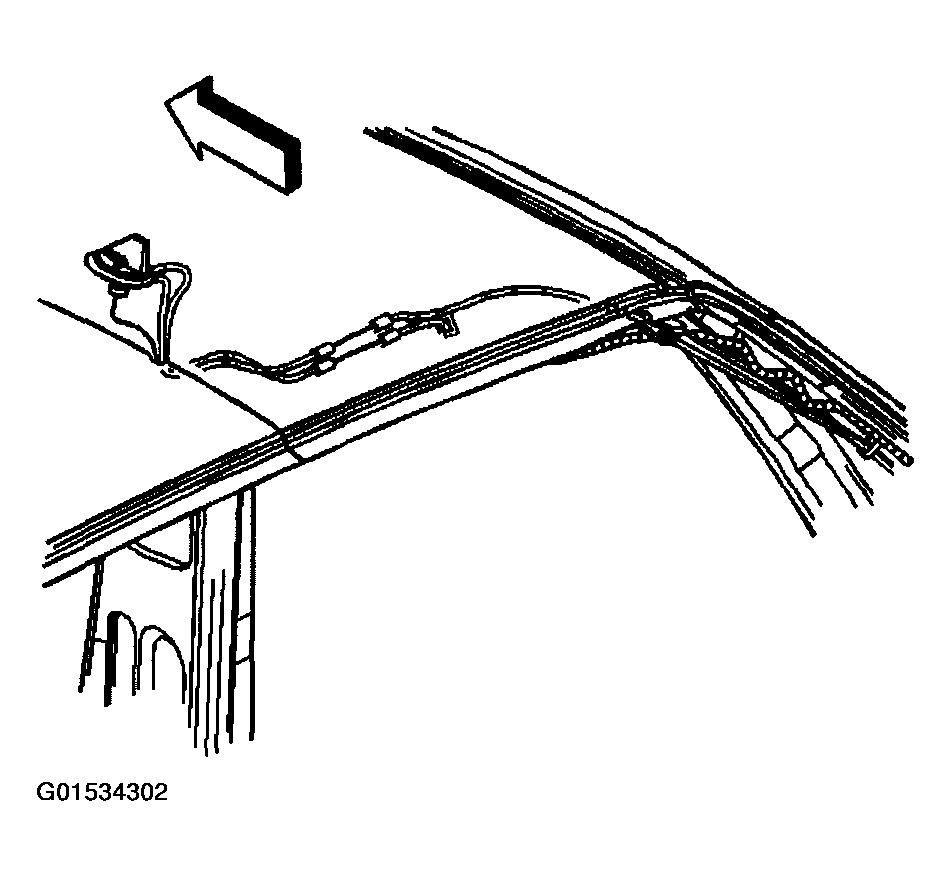

    Fig 2: Installing Antenna Base To Roof
    G01534302Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Secure the antenna base with the bolt.

    Tighten

    Tighten the bolt to 3 N.m (27 lb in).

  4. Connect the antenna cables to the antenna base cable connectors.
  5. Install the headliner. Refer to HEADLINER REPLACEMENT  in Interior Trim.

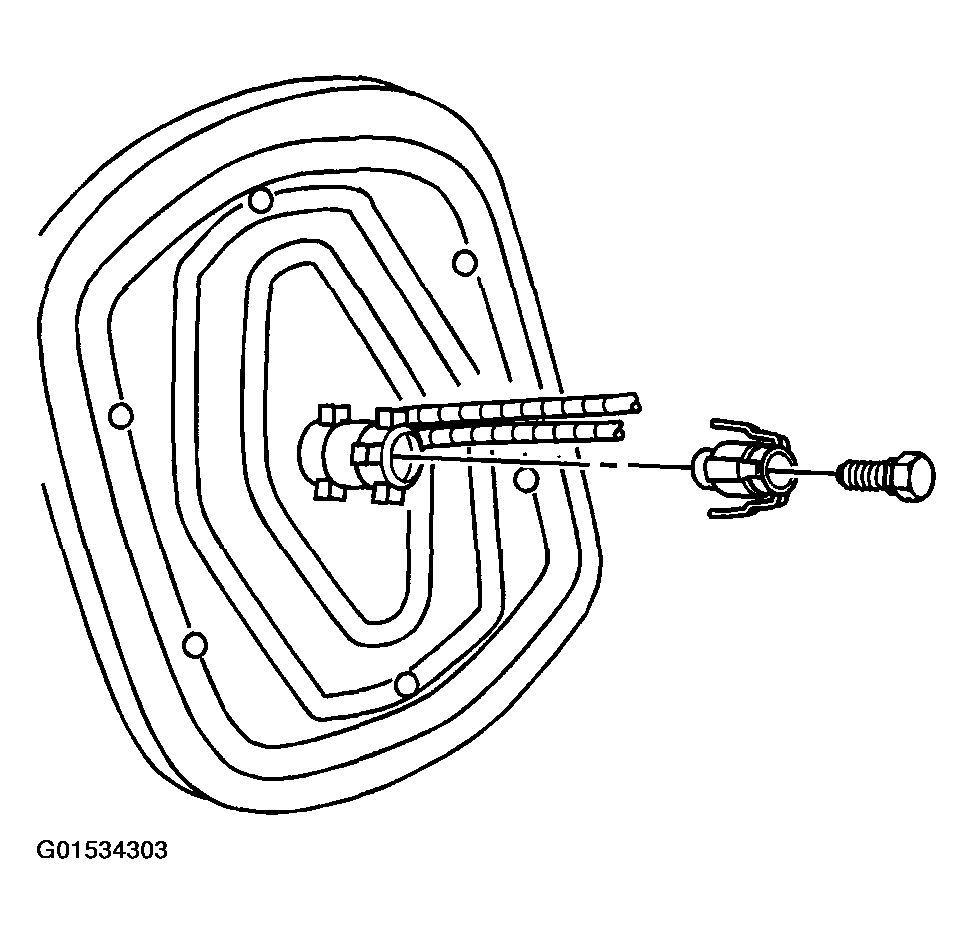

    Fig 3: Connecting Antenna Cables To Antenna Base Cable Connectors
    G01534303Courtesy of GENERAL MOTORS CORP.
