Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel assembly trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY  in Instrument Panel, Gages, and Console.
  2. Disconnect the extension cable from the radio.

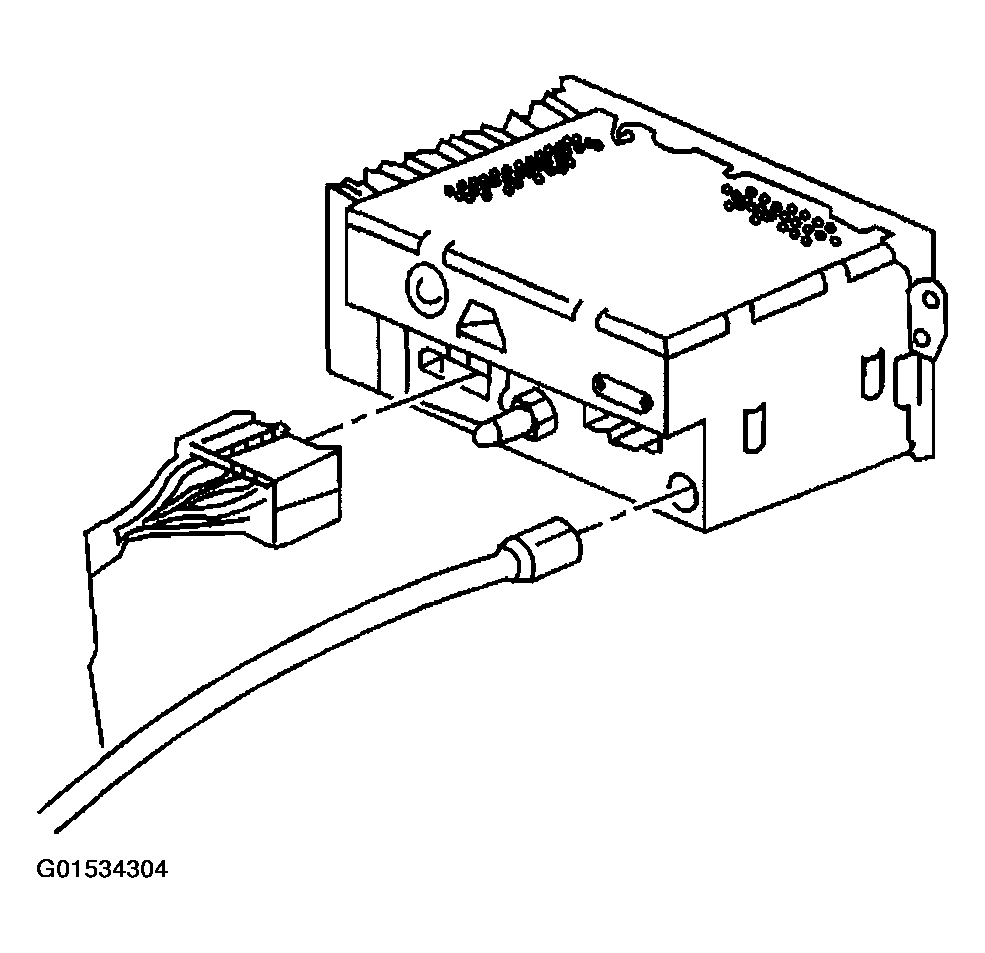

    Fig 1: Disconnecting Extension Cable From Radio
    G01534304Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the extension cable from the antenna.

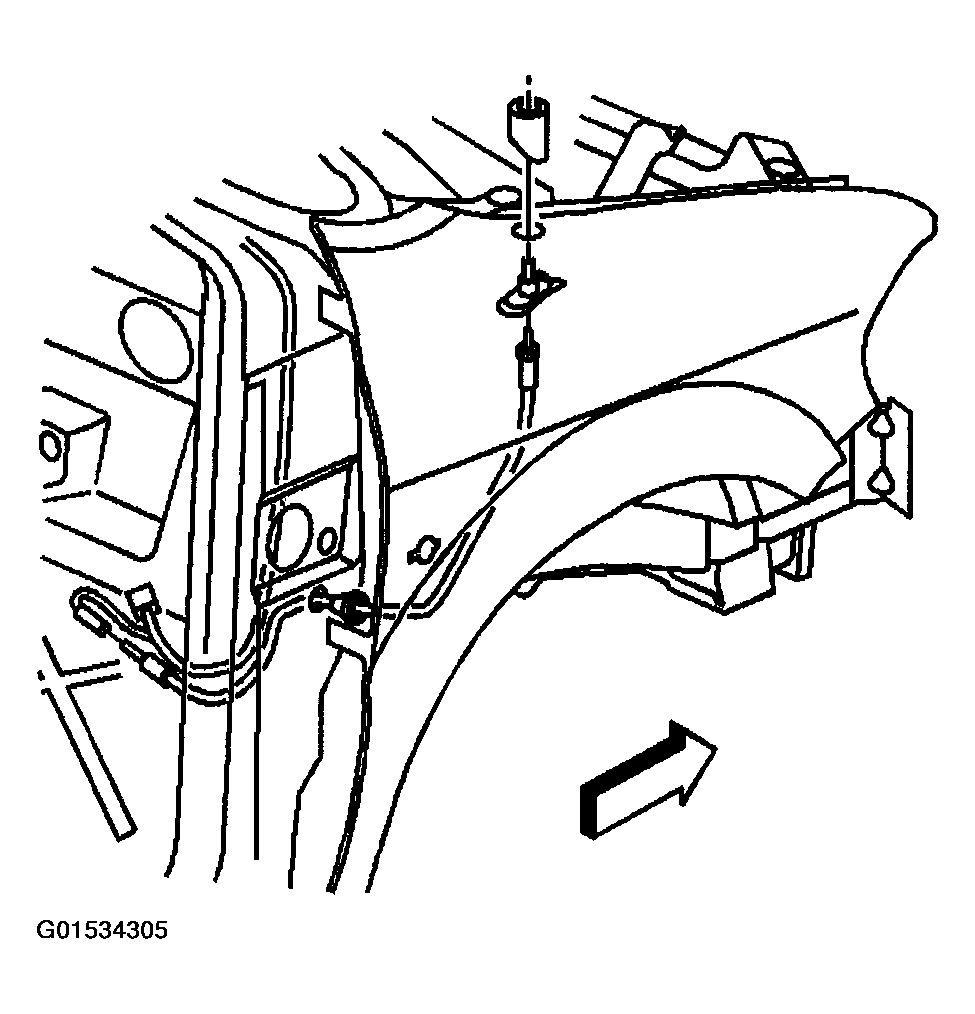

    Fig 2: Disconnecting Extension Cable From Antenna
    G01534305Courtesy of GENERAL MOTORS CORP.
