Infrared (IR) Transmitter and Receiver
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

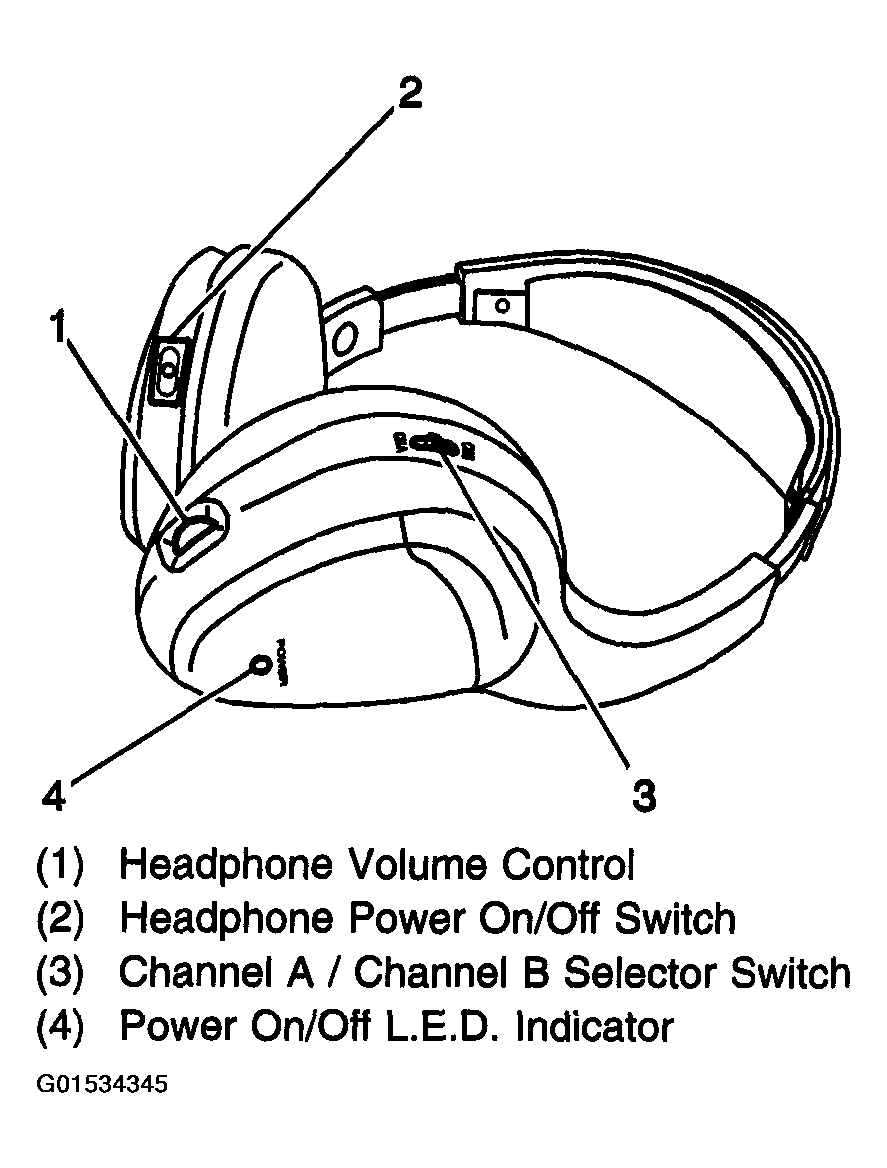

The IR receiver window receives input from the remote control. It is located under the overhead entertainment console display, between the right arrow button and the AM/FM button. The IR transmitter windows provide infrared output for wireless dual channel headphones. They are located on either side of the overhead entertainment console display. Both groups of four infra-red transmitting diodes should appear with relatively uniform intensity.
