Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper motor crank arm. Refer to WIPER MOTOR CRANK ARM REPLACEMENT   .
  2. Remove the front washer hose from around the wiper motor and position aside.
  3. Remove the wiper motor screws.
  4. Remove the wiper motor from the wiper drive system module.
  5. Disconnect the wiper motor electrical connector.
  6. Remove the wiper motor from the vehicle.

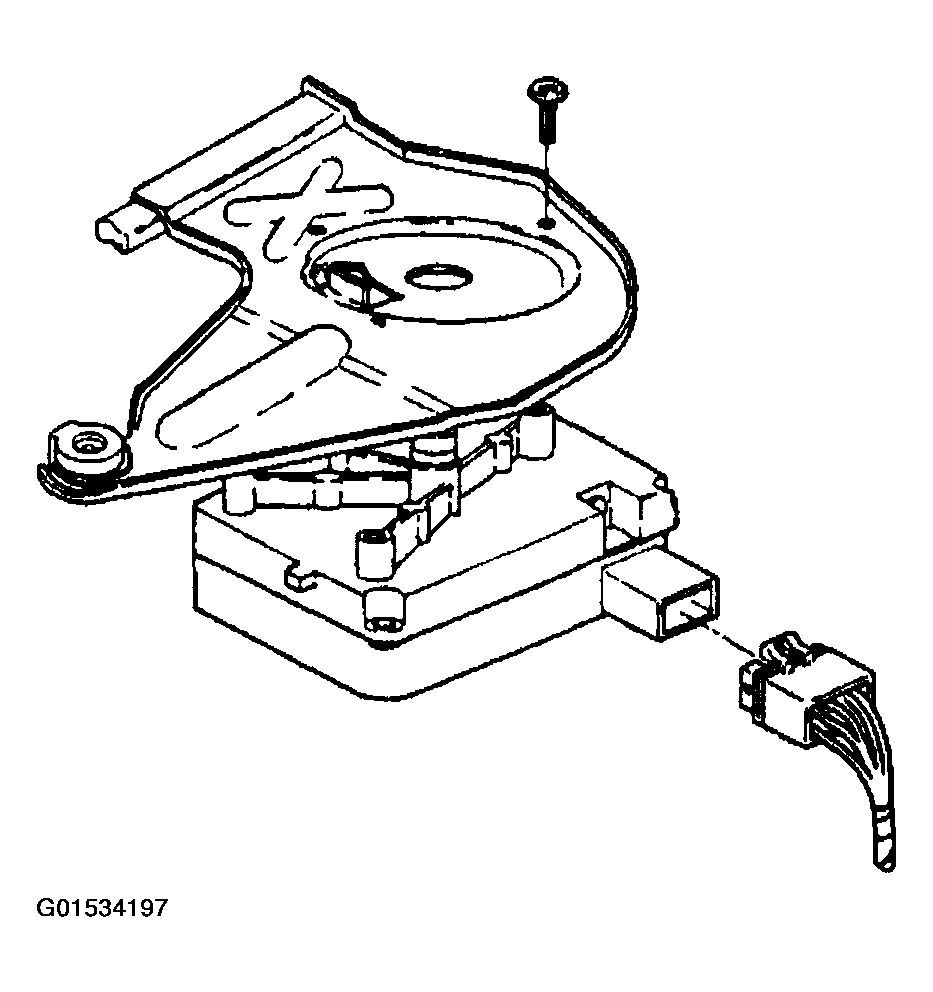

    Fig 1: Removing Wiper Motor From Vehicle
    G01534197Courtesy of GENERAL MOTORS CORP.
