Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear wiper arm. Refer to WIPER ARM REPLACEMENT - REAR   .
  2. Remove the rear wiper motor drive shaft nut.
  3. Remove the washer and seal from the wiper motor drive shaft.
  4. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  in Body Rear End.
  5. Remove the rear wiper motor screws.
  6. Remove the rear wiper motor from the liftgate.

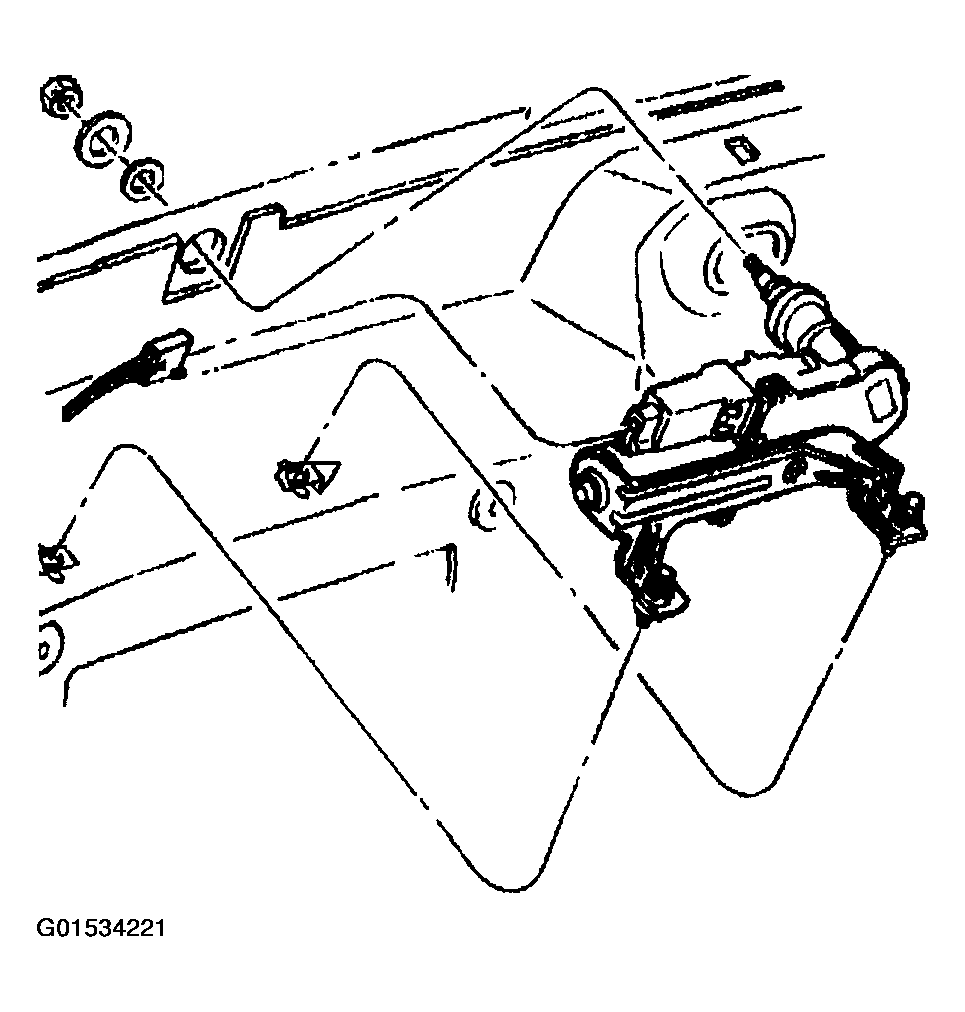

    Fig 1: Removing Rear Wiper Motor From Liftgate
    G01534221Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the rear wiper motor electrical connector.
  8. Remove the rear wiper motor from the vehicle.

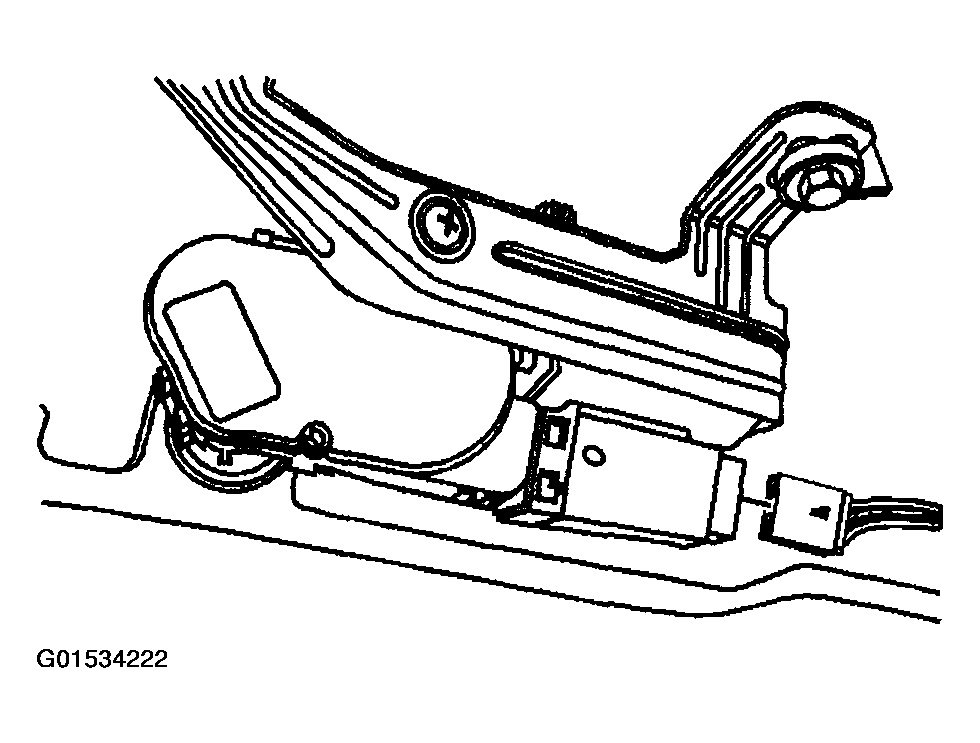

    Fig 2: Removing Rear Wiper Motor From Vehicle
    G01534222Courtesy of GENERAL MOTORS CORP.
