Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear wiper motor electrical connector.

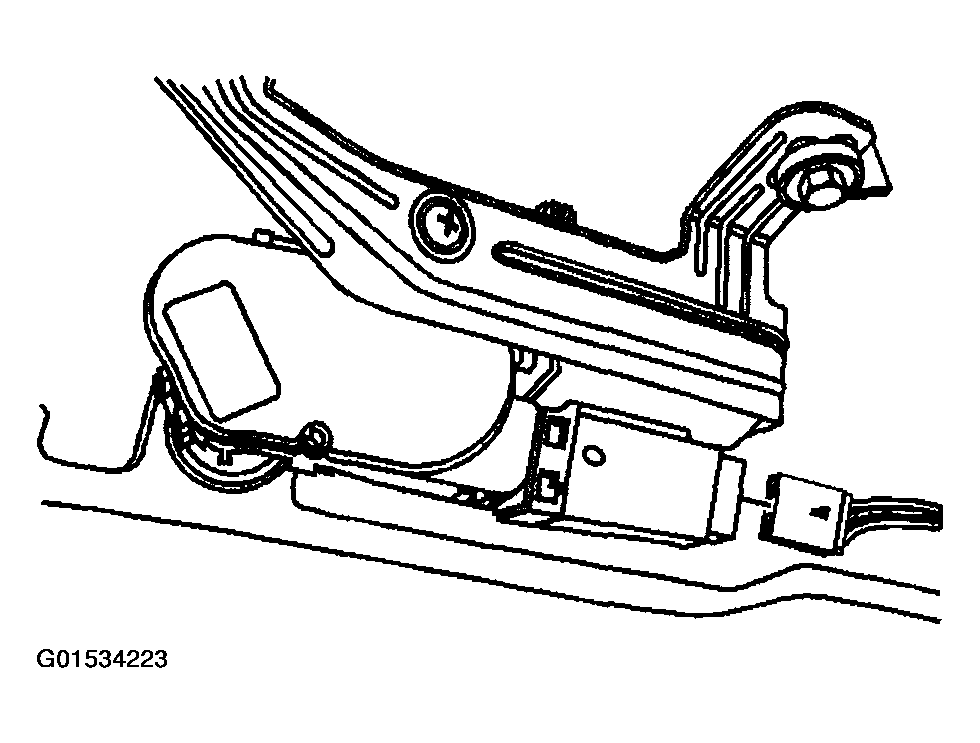

    Fig 1: Installing Rear Wiper Motor Electrical Connector
    G01534223Courtesy of GENERAL MOTORS CORP.
  2. Position the rear wiper motor to the liftgate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the rear wiper motor screws.

    Tighten

    Tighten the screws to 6 N.m (53 lb in).

  4. Install the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  in Body Rear End.
  5. Install the washer and seal onto the rear wiper motor drive shaft.
  6. Install the rear wiper motor drive shaft nut.

    Tighten

    Tighten the nut to 6 N.m (53 lb in).

  7. Install the rear wiper arm. Refer to WIPER ARM REPLACEMENT - REAR   .
  8. Inspect rear wiper for proper operation.

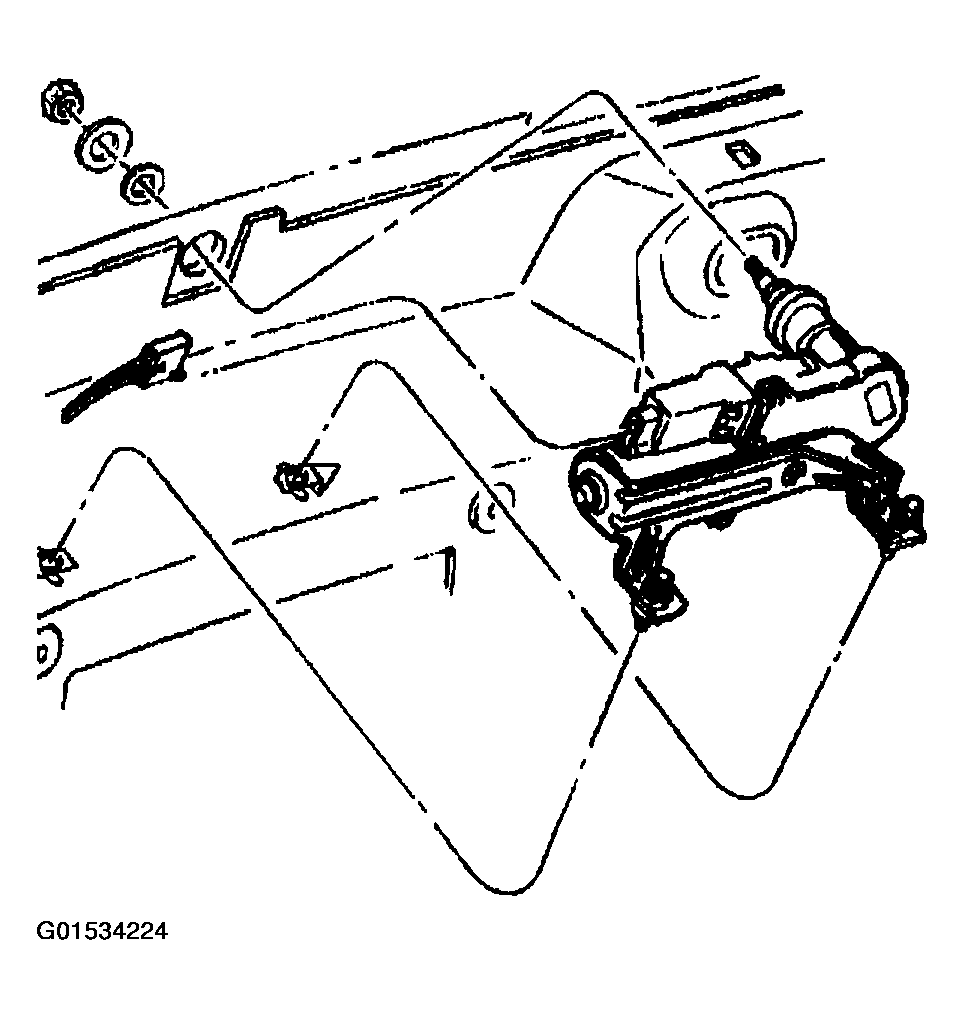

    Fig 2: Installing Rear Wiper Motor To Liftgate
    G01534224Courtesy of GENERAL MOTORS CORP.
