Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper system module cover. Refer to WIPER MODULE COVER REPLACEMENT   .
  2. Loosen the drive link screws.
  3. Remove the drive link from the wiper motor crank arm.
  4. Remove the wiper motor crank arm cover.
  5. Remove the wiper motor crank arm screw.
  6. Remove the wiper motor crank arm from the wiper motor.

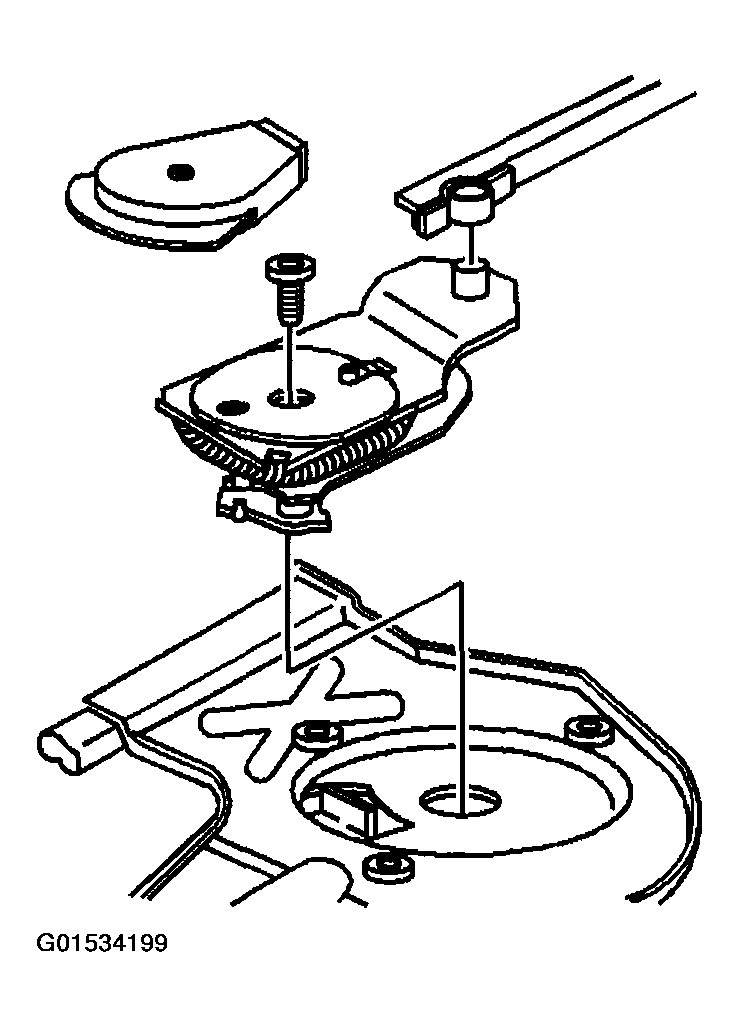

    Fig 1: Removing Wiper Motor Crank Arm From Wiper Motor
    G01534199Courtesy of GENERAL MOTORS CORP.
