Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  in Body Rear End.
  2. Disconnect the rear wiper motor module electrical connector.
  3. Using a small flat-bladed tool, remove the rear wiper motor module cover.

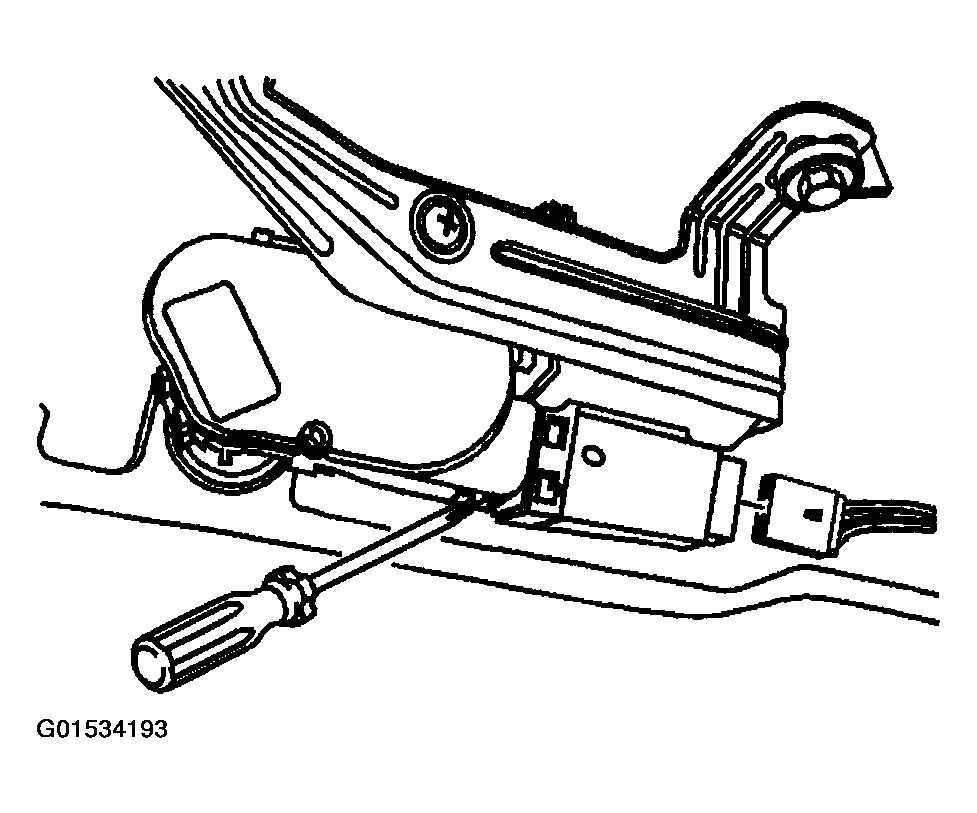

    Fig 1: Removing Rear Wiper Motor Module Cover
    G01534193Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear wiper motor module circuit board from the rear wiper motor.

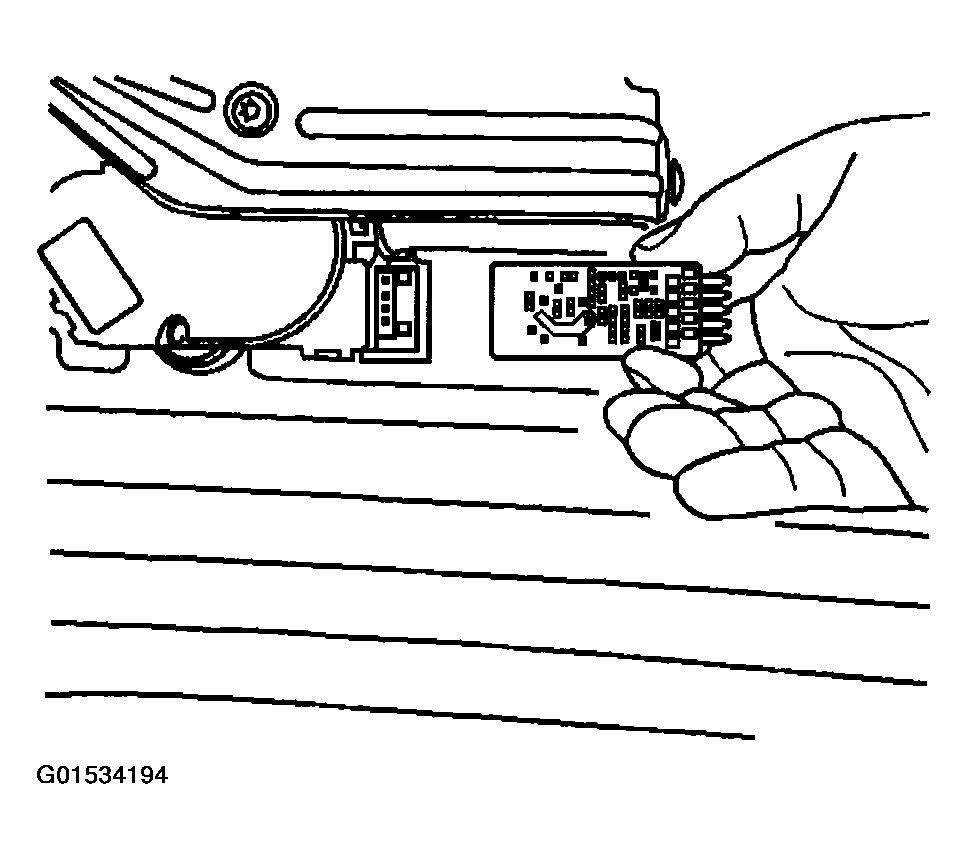

    Fig 2: Removing Rear Wiper Motor Module Circuit Board From Rear Wiper Motor
    G01534194Courtesy of GENERAL MOTORS CORP.
