Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear wiper motor module circuit board to the rear wiper motor, pressing in until fully seated.

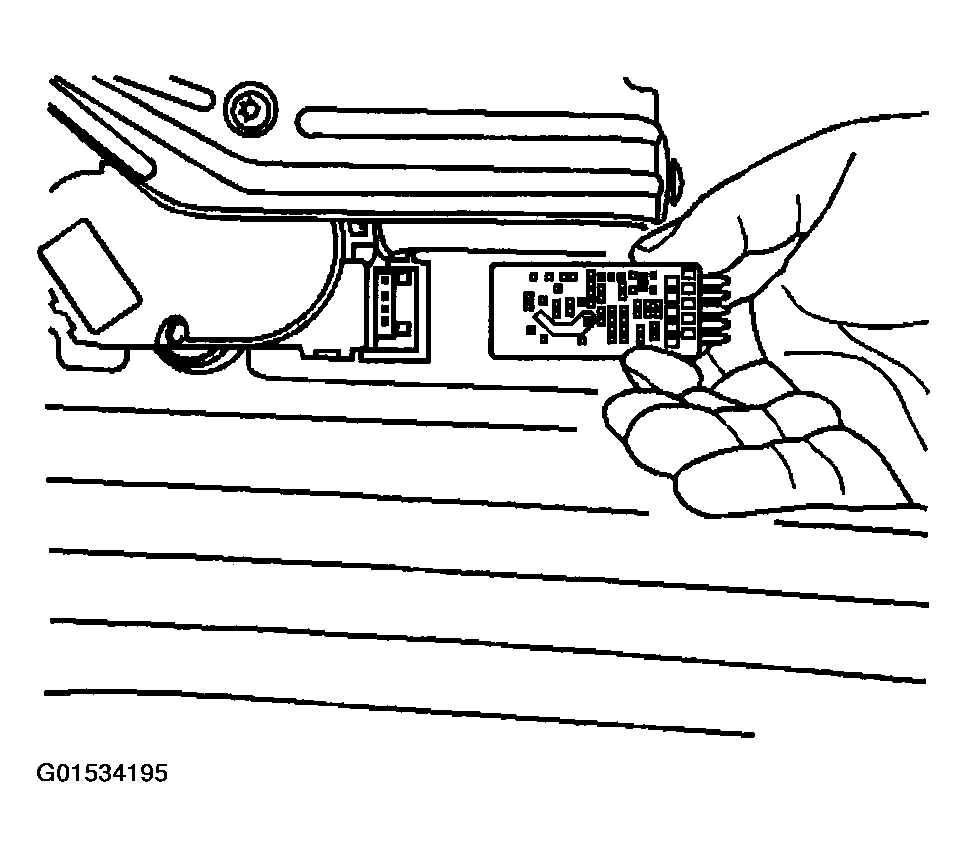

    Fig 1: Installing Rear Wiper Motor Module Circuit Board To Rear Wiper Motor
    G01534195Courtesy of GENERAL MOTORS CORP.
  2. Install the rear wiper motor module cover.
  3. Connect the rear wiper motor module electrical connector.
  4. Install the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  in Body Rear End.
  5. Inspect the rear wiper for proper operation.

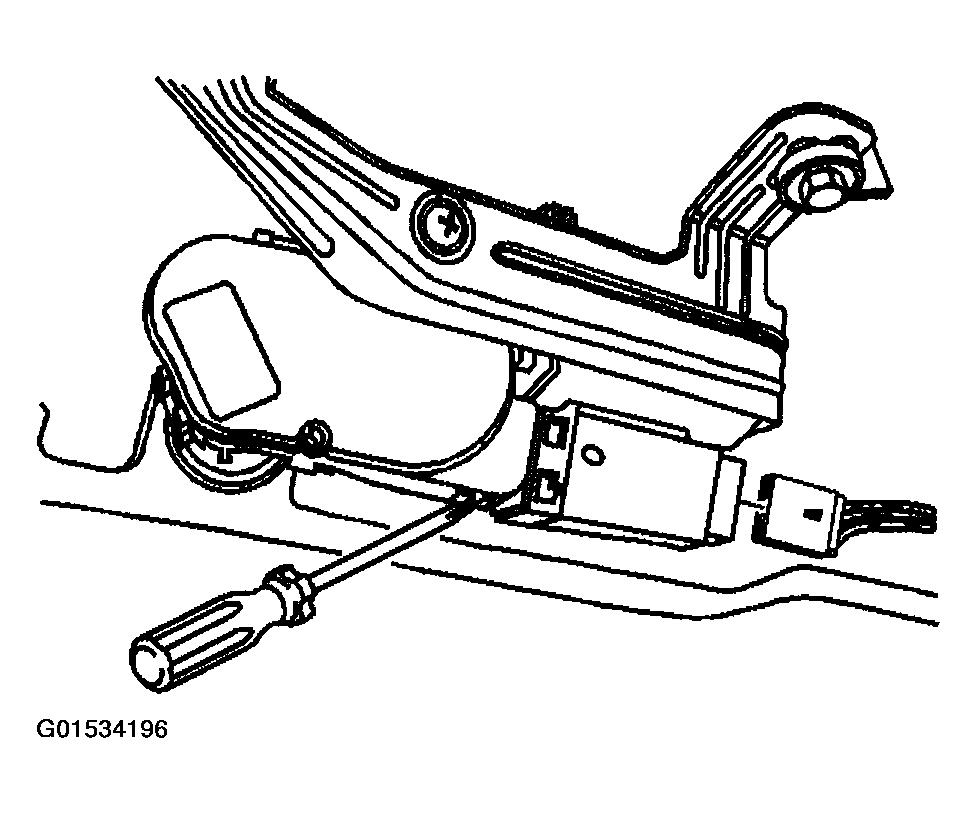

    Fig 2: Installing Rear Wiper Motor Module Cover
    G01534196Courtesy of GENERAL MOTORS CORP.
