Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper motor. Refer to WIPER MOTOR REPLACEMENT   .
  2. Remove the wiper motor cover screws.
  3. Remove the wiper motor cover from the wiper motor.

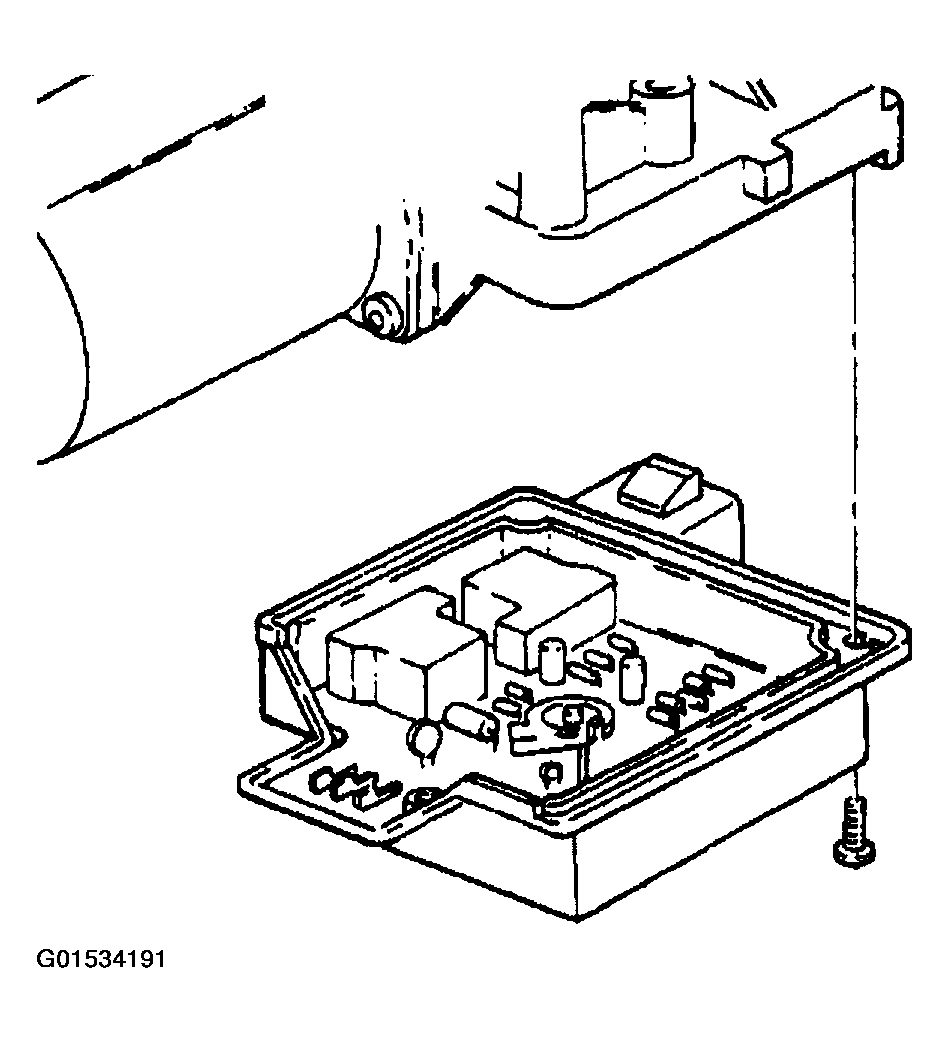

    Fig 1: Removing Wiper Motor Cover From Wiper Motor
    G01534191Courtesy of GENERAL MOTORS CORP.
