Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper motor cover to the wiper motor.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the wiper motor cover screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the wiper motor. Refer to WIPER MOTOR REPLACEMENT   .
  4. Inspect the wipers for proper operation.

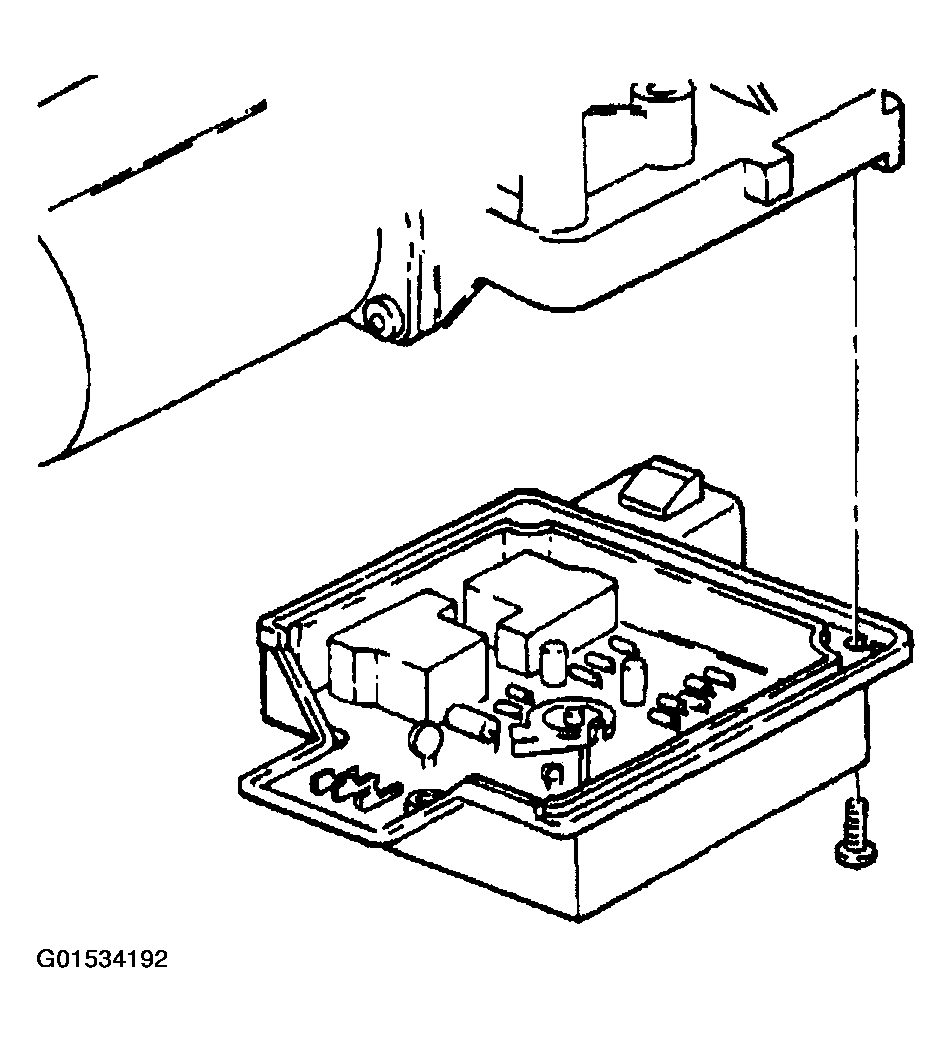

    Fig 1: Installing Wiper Motor Cover To Wiper Motor
    G01534192Courtesy of GENERAL MOTORS CORP.
