Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the washer solvent from the washer solvent container.
  2. Remove the battery. Refer to BATTERY REPLACEMENT  in Battery.
  3. Disconnect the wiper motor electrical harness from the washer solvent container and position aside.
  4. Disconnect the front washer pump electrical connector.
  5. Disconnect the rear washer pump electrical connector if equipped.
  6. Disconnect the front washer pump hose.
  7. Disconnect the rear washer pump hose if equipped.
  8. Remove the washer solvent container screws.
  9. Remove the washer solvent container from the right inner fender.

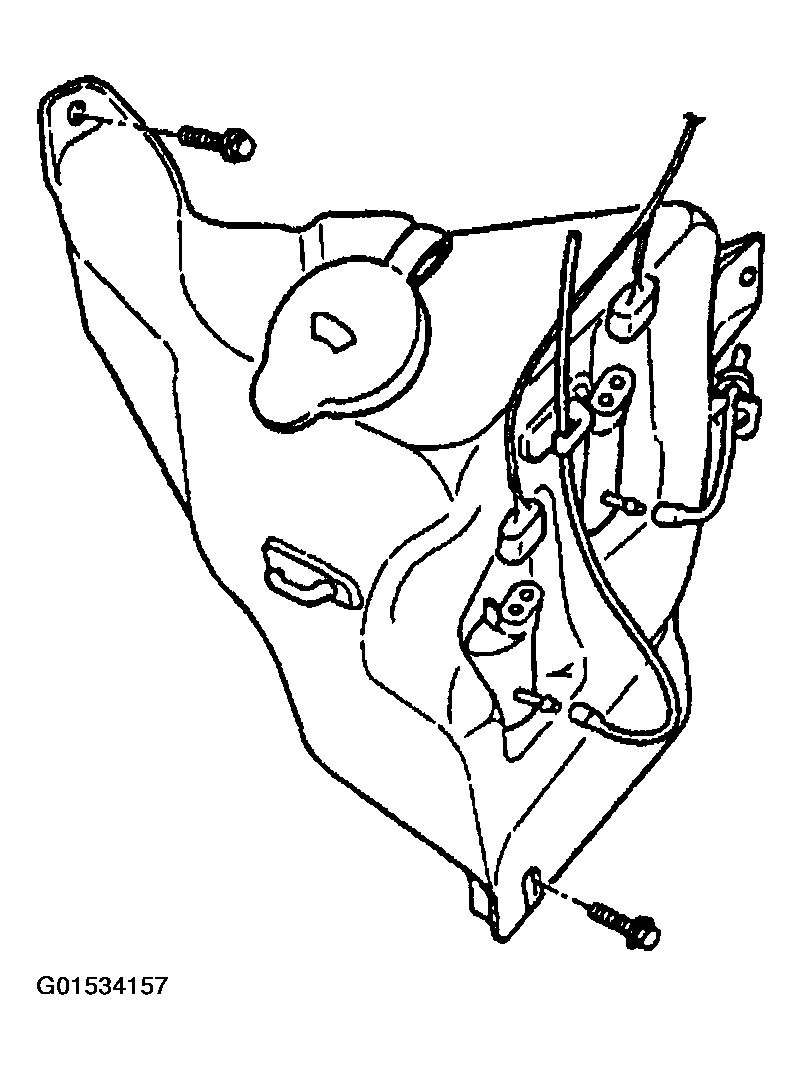

    Fig 1: Removing Washer Solvent Container From Right Inner Fender
    G01534157Courtesy of GENERAL MOTORS CORP.
