Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the washer solvent from the washer solvent container.
  2. Disconnect the front washer pump electrical connector.
  3. Disconnect the front washer pump hose.

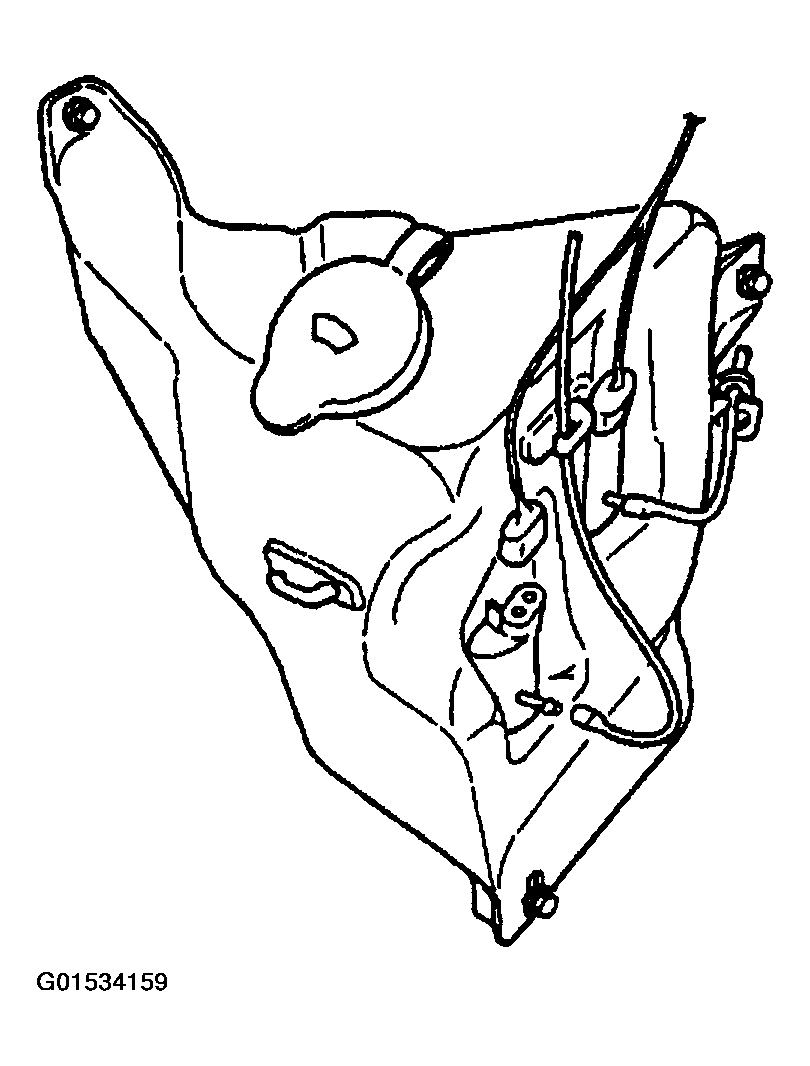

    Fig 1: Disconnecting Front Washer Pump Hose
    G01534159Courtesy of GENERAL MOTORS CORP.
  4. Using a small flat-bladed tool, remove the front washer pump from the washer solvent container.
  5. Using a small flat-bladed tool, remove the seal from the washer solvent container.
    Fig 2: Removing Seal From Washer Solvent Container
    G01534160Courtesy of GENERAL MOTORS CORP.
