Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the washer solvent from the washer solvent container.
  2. Disconnect the rear washer pump electrical connector.
  3. Disconnect the rear washer pump hose.

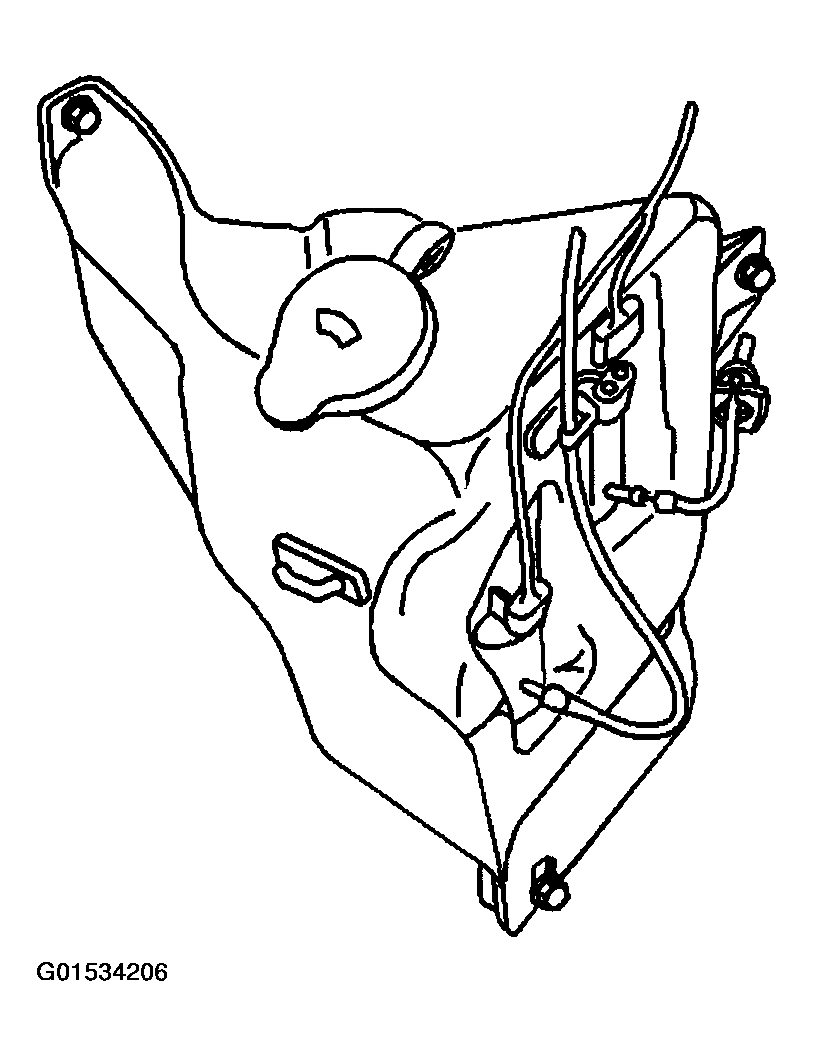

    Fig 1: Disconnecting Rear Washer Pump Hose
    G01534206Courtesy of GENERAL MOTORS CORP.
  4. Using a small flat-bladed tool, remove the rear washer pump from the washer solvent container.
  5. Using a small flat-bladed tool, remove the seal from the washer solvent container.

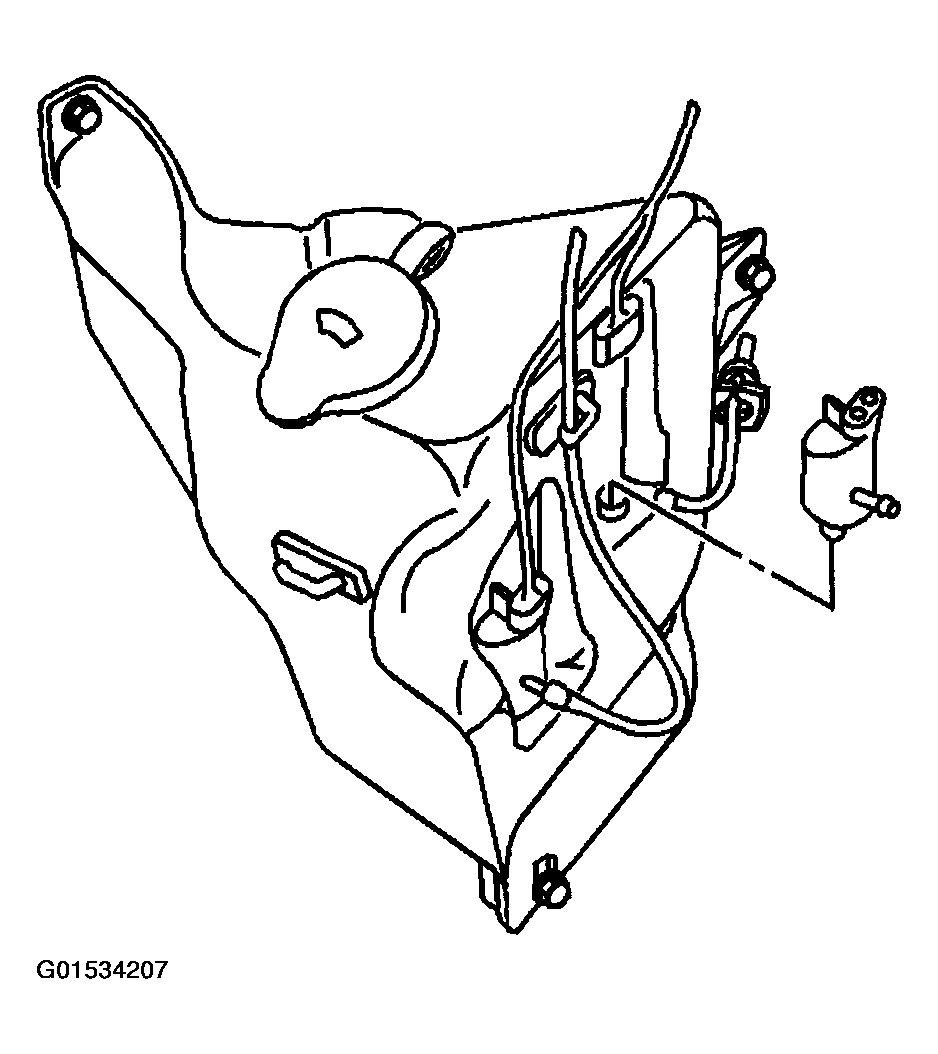

    Fig 2: Removing Seal From Washer Solvent Container
    G01534207Courtesy of GENERAL MOTORS CORP.
