Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seal to the washer solvent container, pressing in until fully seated.
  2. Position the rear washer pump to the washer solvent container, pressing in until fully seated.

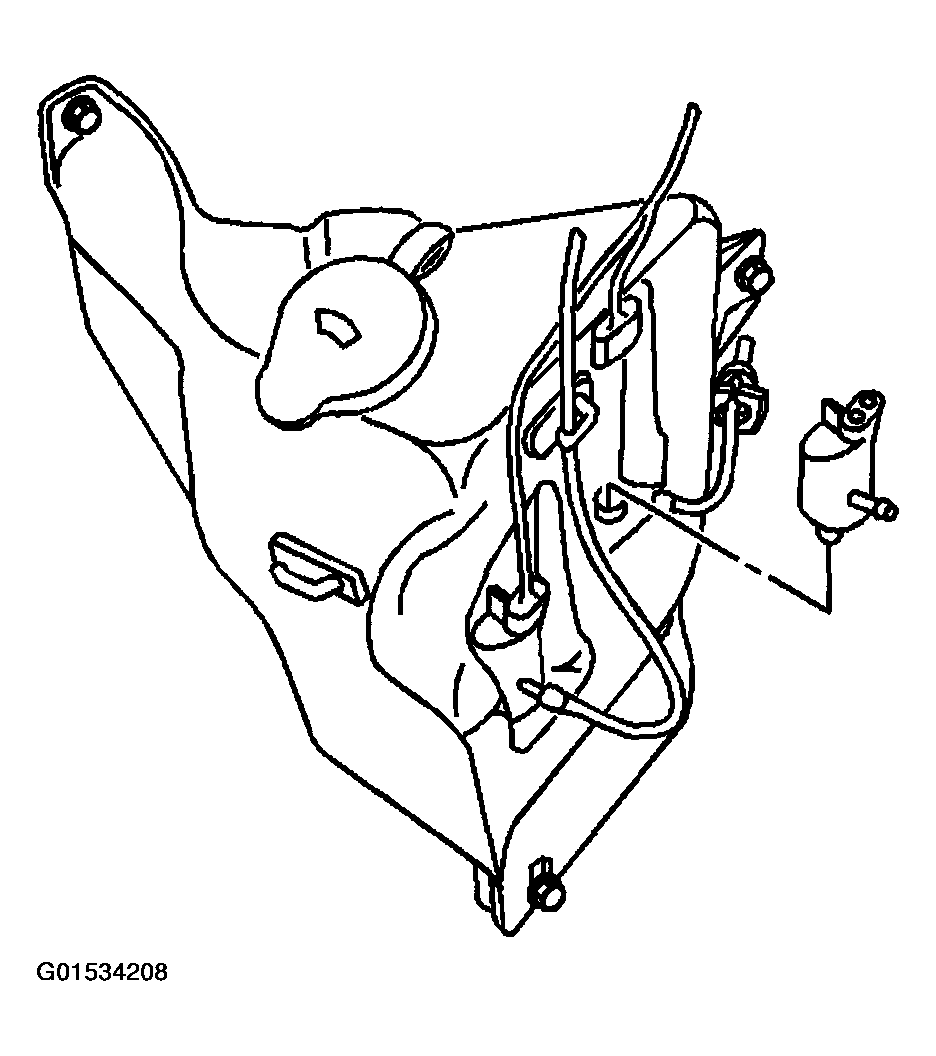

    Fig 1: Installing Seal To Washer Solvent Container
    G01534208Courtesy of GENERAL MOTORS CORP.
  3. Connect the rear washer pump hose.
  4. Connect the rear washer pump electrical connector.
  5. Fill the washer solvent container with washer solvent.

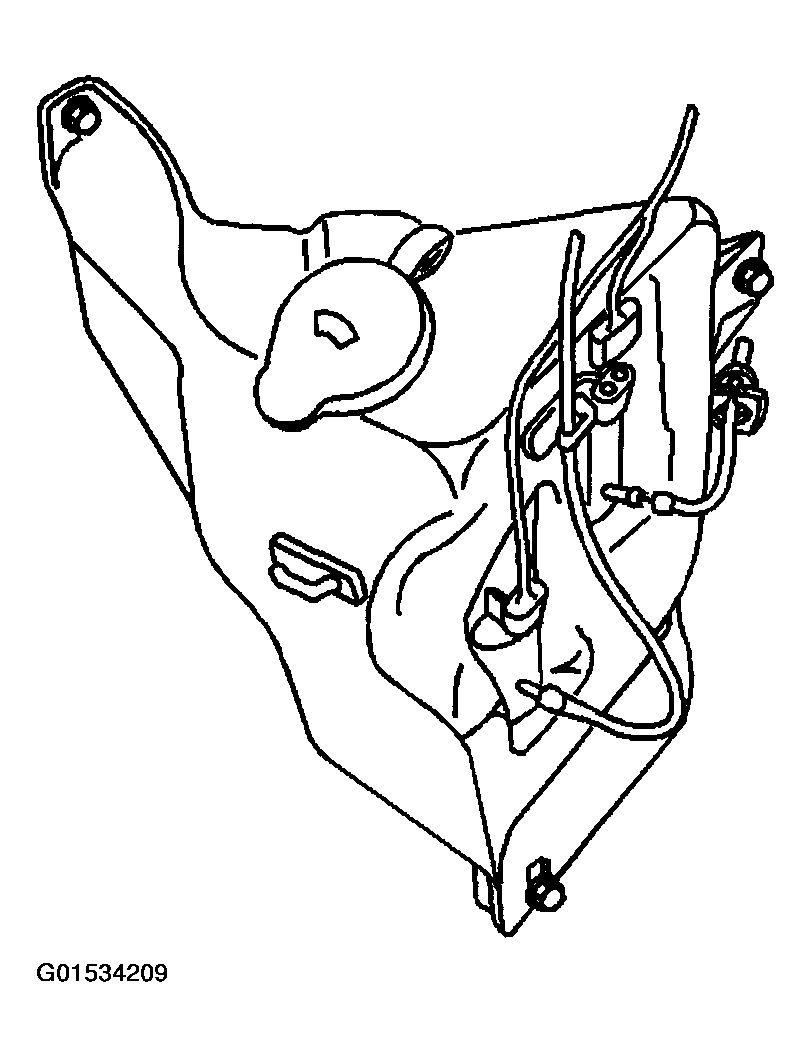

    Fig 2: Connecting Rear Washer Pump Hose
    G01534209Courtesy of GENERAL MOTORS CORP.
