Removal procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition switch to the ACCY position.
Set the wiper switch to the Delay position.
Turn the ignition switch off when the wipers are in the innerwipe position.
Using a small flat-bladed tool, remove the lower washer nozzle from the wiper arm.

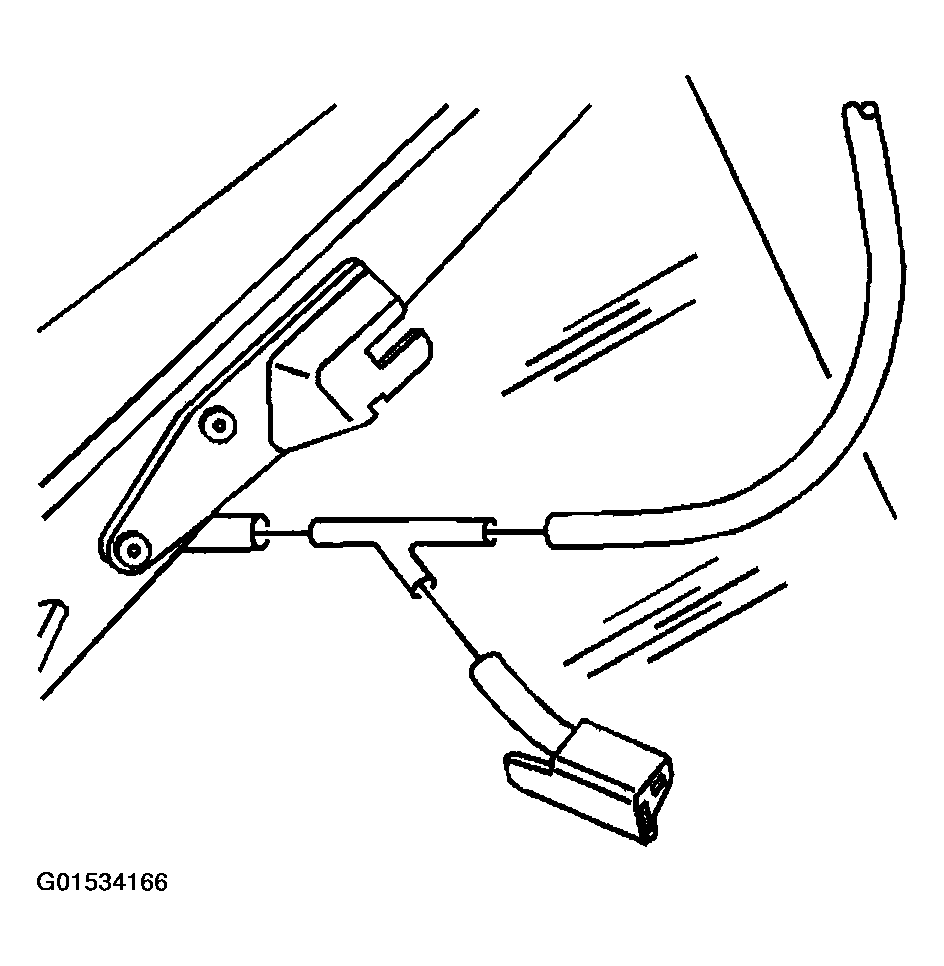

Fig 1: Removing Lower Washer Nozzle From Wiper Arm
Courtesy of GENERAL MOTORS CORP.
Using a small flat-bladed tool, remove the upper washer nozzle from the wiper arm.
Disconnect the upper washer nozzle from the upper washer nozzle hose.

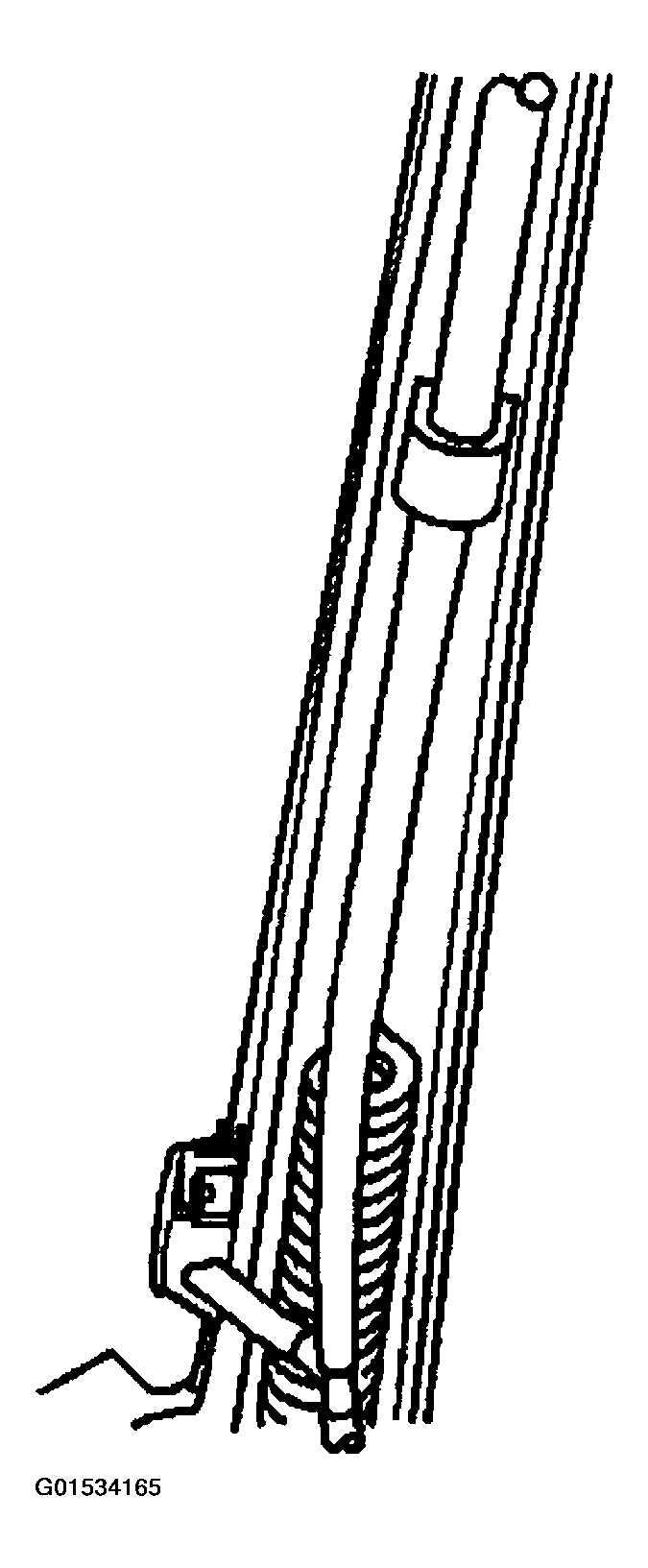

Fig 2: Disconnecting Upper Washer Nozzle From Upper Washer Nozzle Hose
Courtesy of GENERAL MOTORS CORP.
Remove the upper washer nozzle hose from the wiper arm.

Fig 3: Removing Upper Washer Nozzle Hose From Wiper Arm
Courtesy of GENERAL MOTORS CORP.
Disconnect the washer nozzle hose Y-fitting from the washer hose.
Remove the washer nozzle hose from the wiper arm.

Fig 4: Removing Washer Nozzle Hose From Wiper Arm
Courtesy of GENERAL MOTORS CORP.
