Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Position the washer nozzle hose to the wiper arm.
Connect the washer nozzle hose Y-fitting to the washer hose.

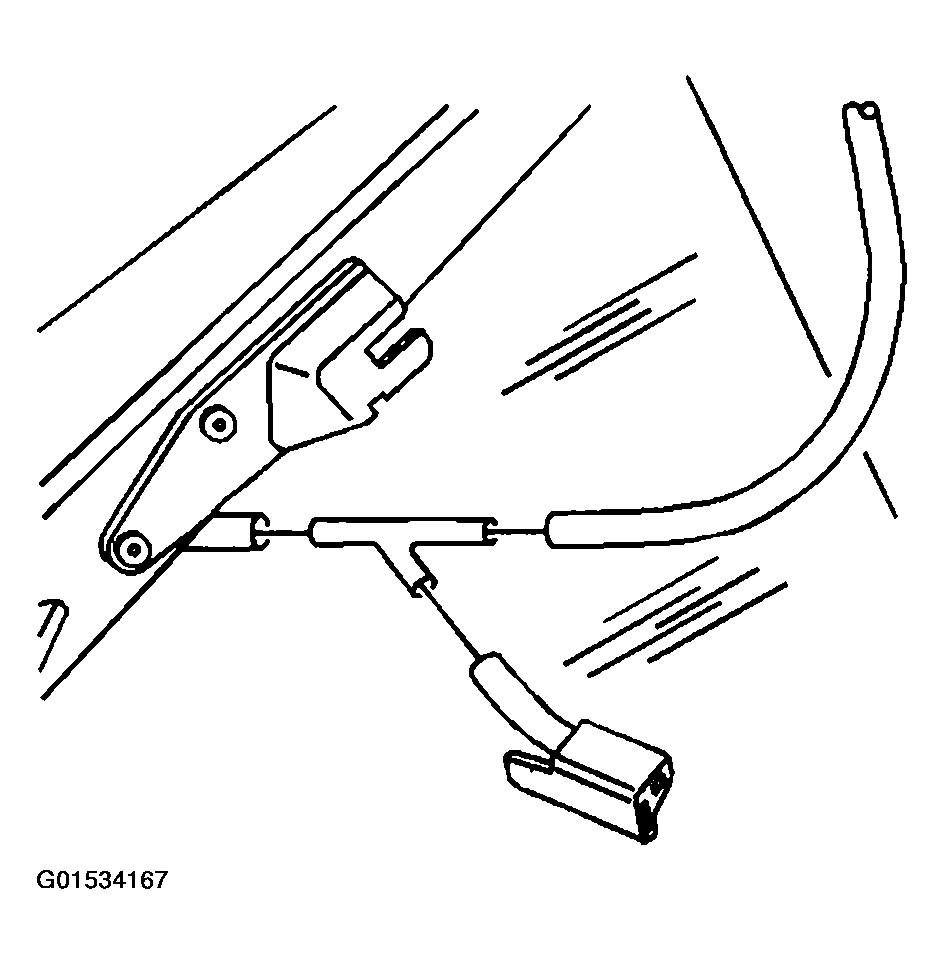

Fig 1: Installing Washer Nozzle Hose To Wiper Arm
Courtesy of GENERAL MOTORS CORP.
Install the upper washer nozzle hose to the wiper arm.

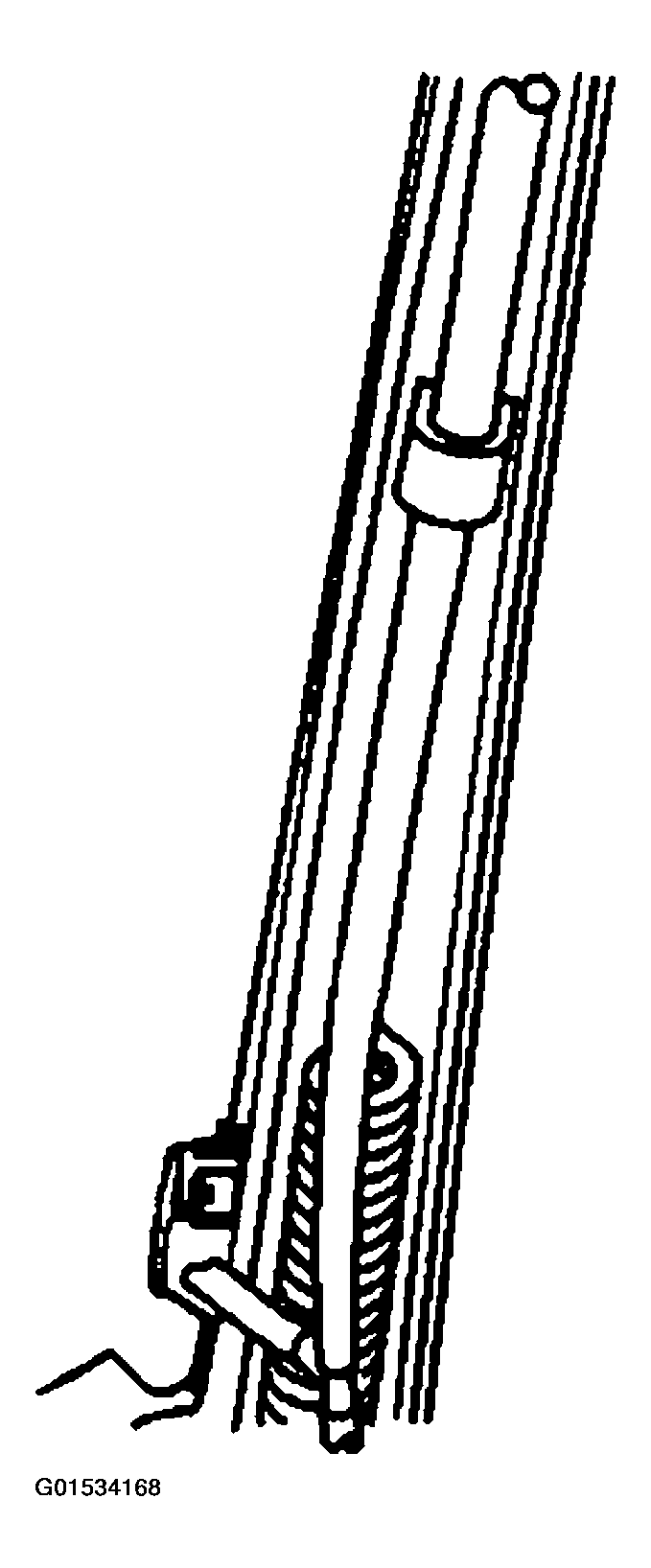

Fig 2: Installing Upper Washer Nozzle Hose To Wiper Arm
Courtesy of GENERAL MOTORS CORP.
Connect the upper washer nozzle to the upper washer nozzle hose.
Position the upper washer nozzle to the wiper arm, pressing in until fully seated.

Fig 3: Connecting Upper Washer Nozzle To Upper Washer Nozzle Hose
Courtesy of GENERAL MOTORS CORP.
Position the lower washer nozzle to the wiper arm, pressing in until fully seated.
Inspect the washers for proper operation.

Fig 4: Installing Lower Washer Nozzle To Wiper Arm
Courtesy of GENERAL MOTORS CORP.
