Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper module cover. Refer to WIPER MODULE COVER REPLACEMENT   .
  2. Disconnect the front washer hose from the wiper arms.
  3. Disconnect the front washer hose from the air inlet grille panel.
  4. Remove the front washer hose grommet from the grille panel pinch weld.
  5. Disconnect the front washer hose from the wiper motor bracket.
  6. Disconnect the front washer hose from the washer solvent container.

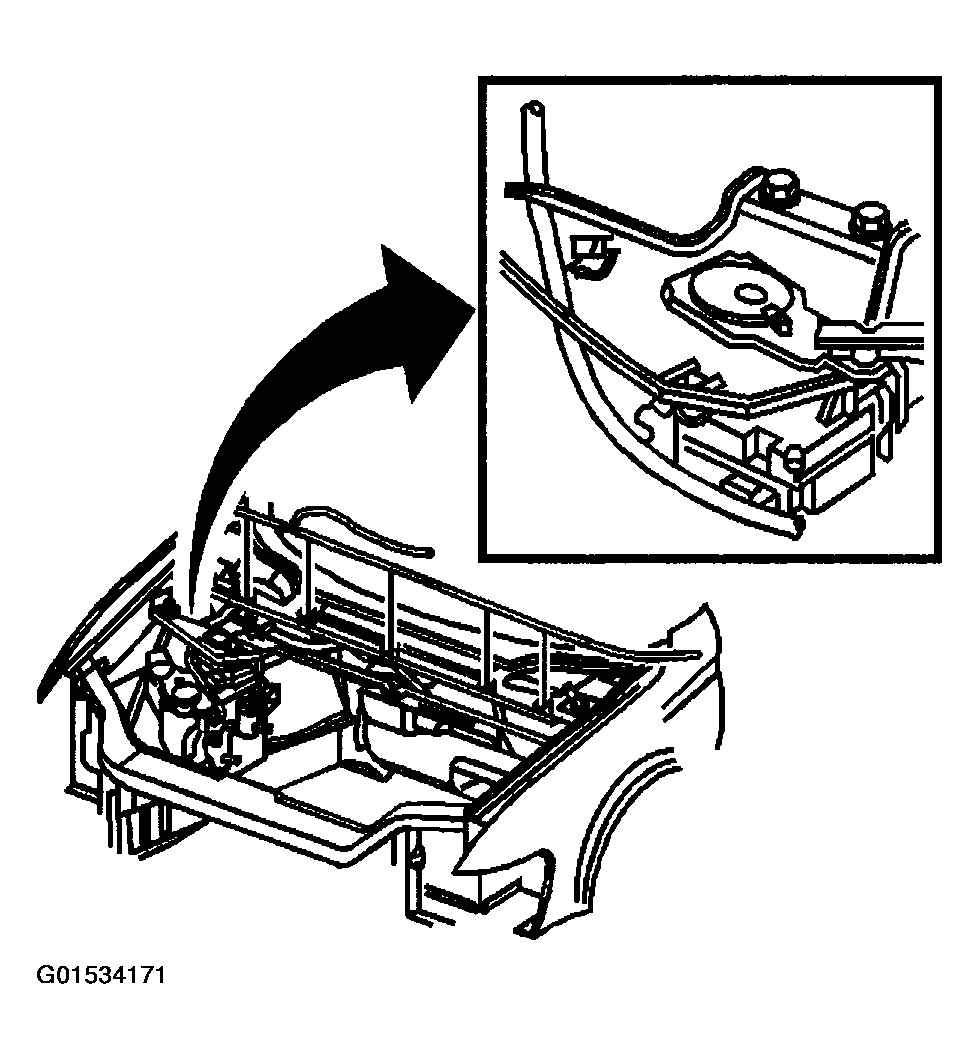

    Fig 1: Disconnecting Front Washer Hose From Washer Solvent Container
    G01534171Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the front washer hose from the front washer pump.
  8. Remove the front washer hose from the vehicle.

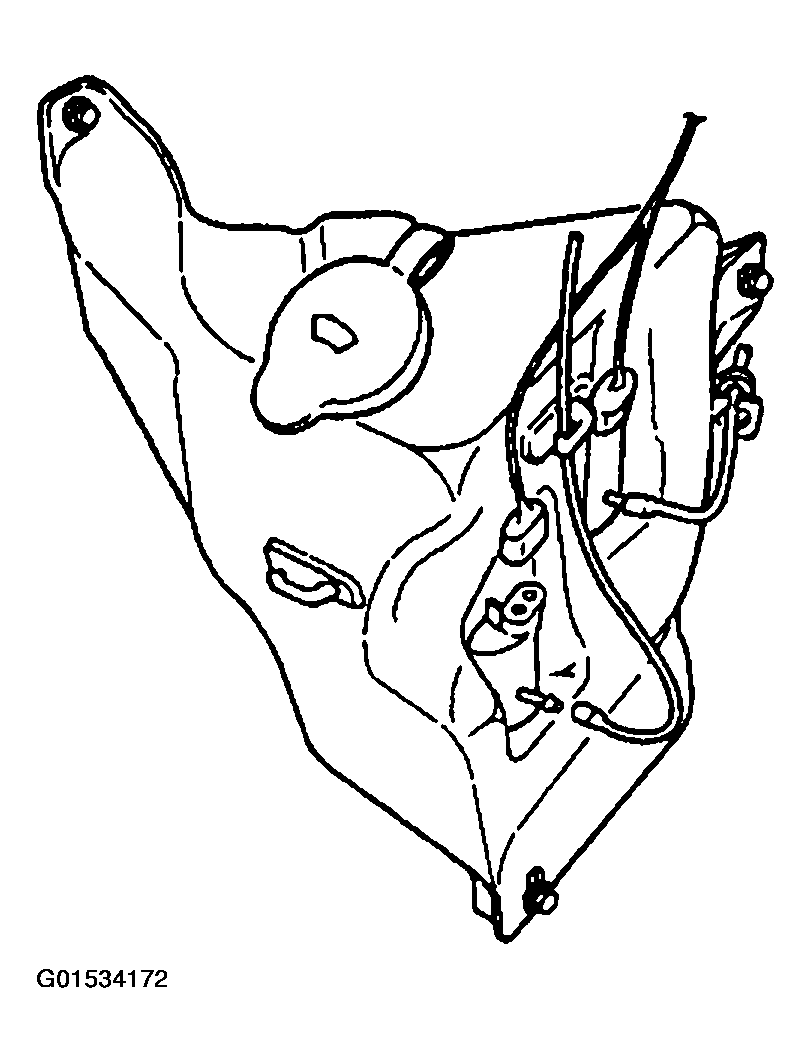

    Fig 2: Removing Front Washer Hose From Vehicle
    G01534172Courtesy of GENERAL MOTORS CORP.
