Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front washer hose to the vehicle.
  2. Install the front washer hose to the washer pump.
  3. Connect the front washer hose to the washer solvent container.

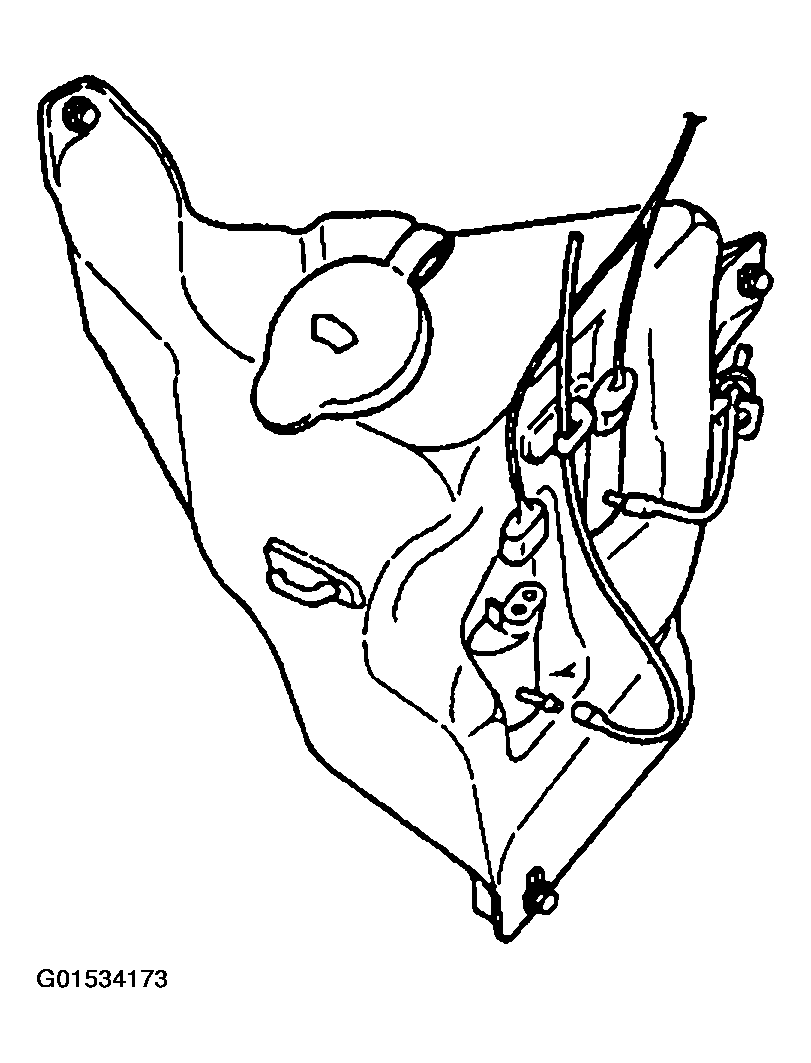

    Fig 1: Installing Front Washer Hose To Vehicle
    G01534173Courtesy of GENERAL MOTORS CORP.
  4. Connect the front washer hose to the wiper motor bracket.
  5. Install the front washer hose grommet into the grille panel pinch weld.
  6. Connect the front washer hose to the air inlet grille panel.
  7. Connect the front washer hose to the wiper arms.
  8. Install the wiper module cover. Refer to WIPER MODULE COVER REPLACEMENT   .

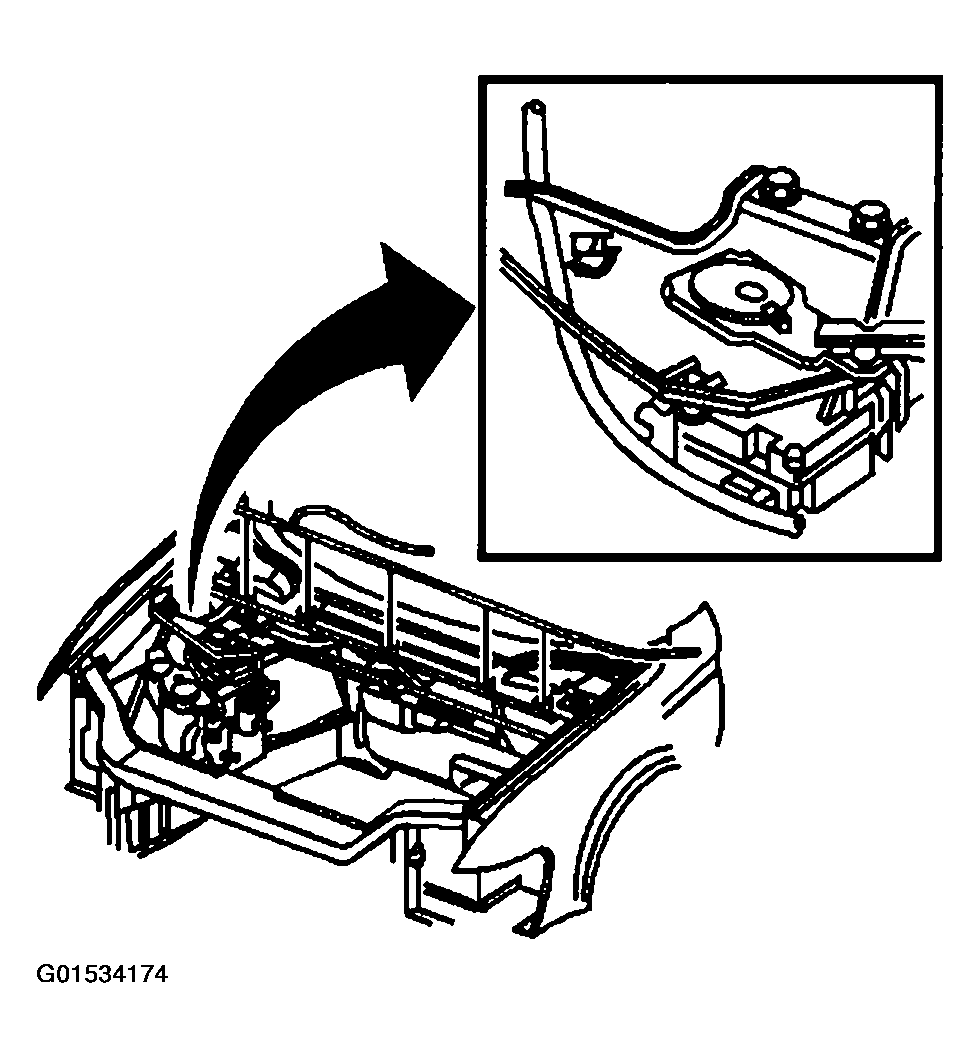

    Fig 2: Connecting Front Washer Hose To Wiper Motor Bracket
    G01534174Courtesy of GENERAL MOTORS CORP.
