Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right cowl trim panel. Refer to TRIM PANEL REPLACEMENT - COWL SIDE  in Interior Trim.
  2. Remove the right lower pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LOWER PILLAR  in Interior Trim.
  3. Remove the right rear lower quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER  in Interior Trim.
  4. Remove the liftgate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  in Body Rear End.
  5. Remove the wiper module cover. Refer to WIPER MODULE COVER REPLACEMENT   .
  6. Disconnect the rear washer hose from the rear washer pump.
  7. Disconnect the rear washer hose from the washer solvent container.

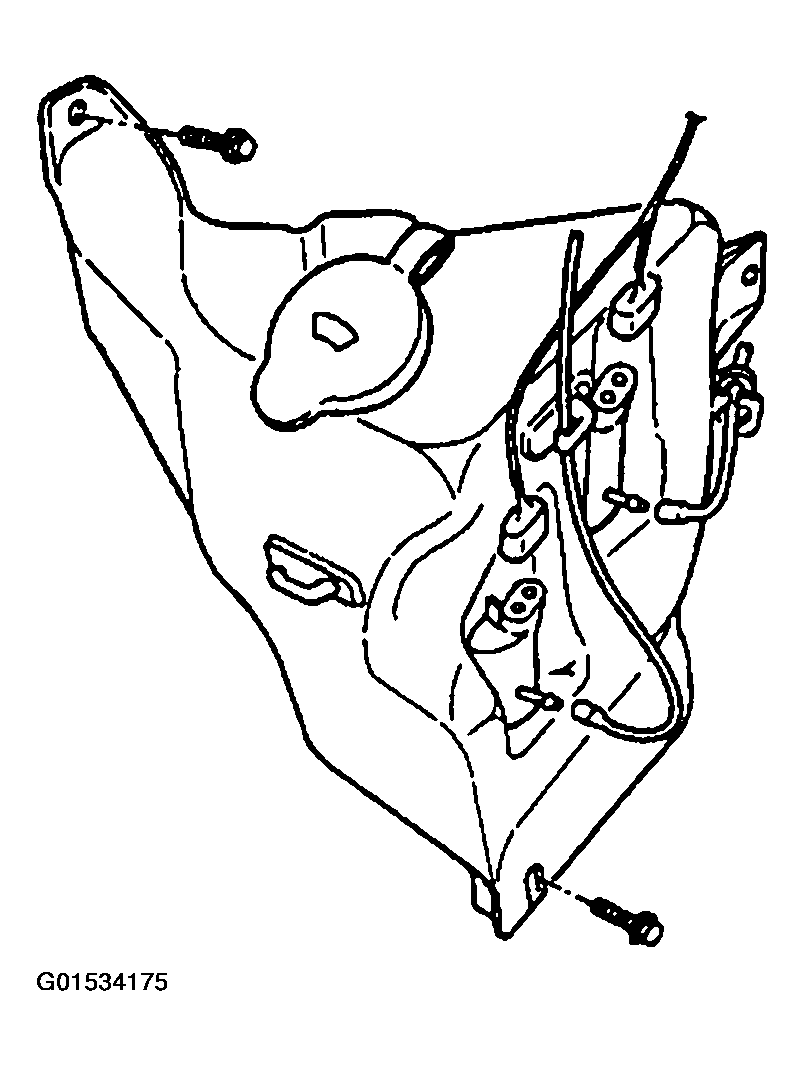

    Fig 1: Disconnecting Rear Washer Hose From Washer Solvent Container
    G01534175Courtesy of GENERAL MOTORS CORP.
  8. Using a small flat-bladed tool, remove the rear washer nozzle (2).
  9. Disconnect the rear washer hose (1) from the rear washer nozzle (2).
  10. Pull the rear washer hose end out through the rear liftgate conduit.

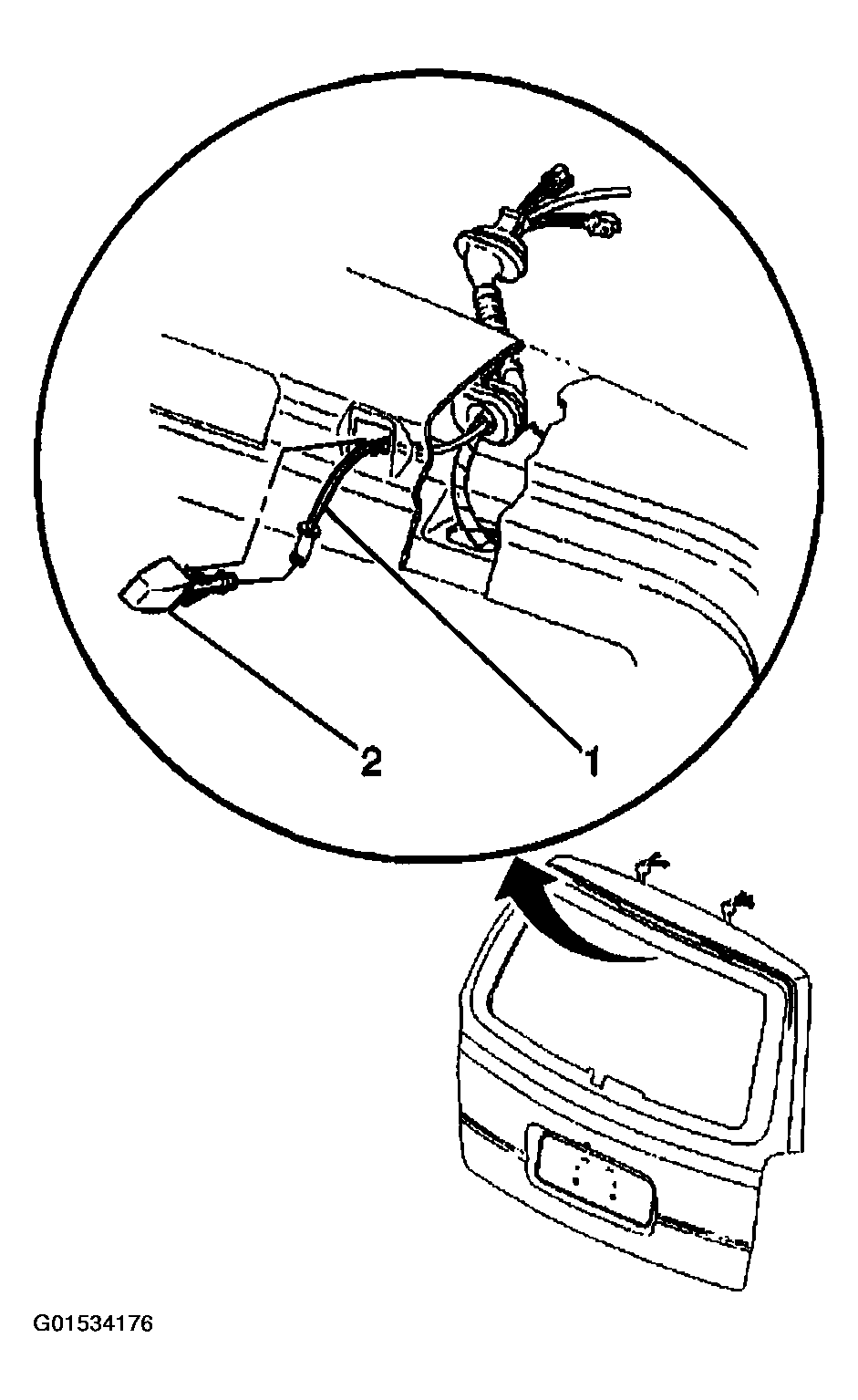

    Fig 2: Pulling Rear Washer Hose End Out Through Rear Liftgate Conduit
    G01534176Courtesy of GENERAL MOTORS CORP.
  11. Pull the rear washer hose end out through the opening in the dash panel.
  12. Remove the rear washer hose from the right side of the vehicle.

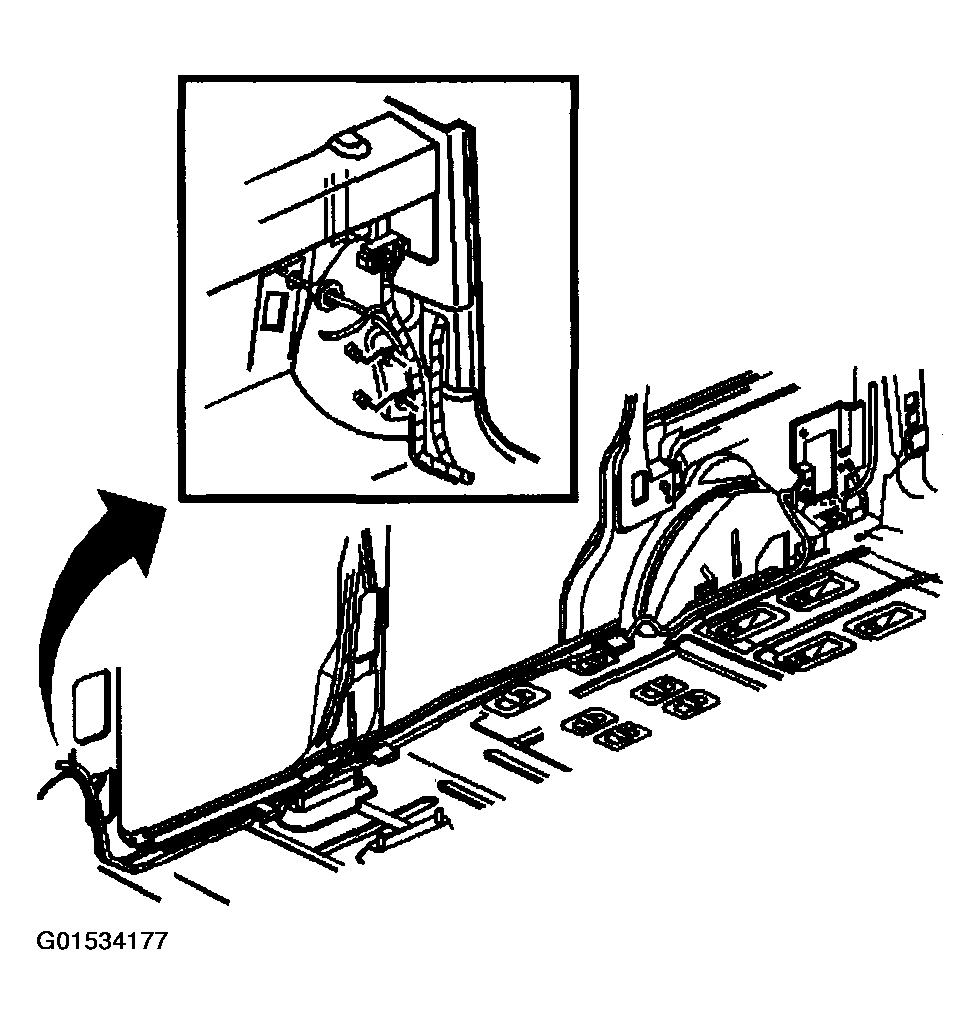

    Fig 3: Removing Rear Washer Hose From Right Side Of Vehicle
    G01534177Courtesy of GENERAL MOTORS CORP.
