Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper blade from the wiper arm. Refer to WIPER ARM BLADE REPLACEMENT - REAR   .
  2. Remove the rubber wiper element from the element vertebra.

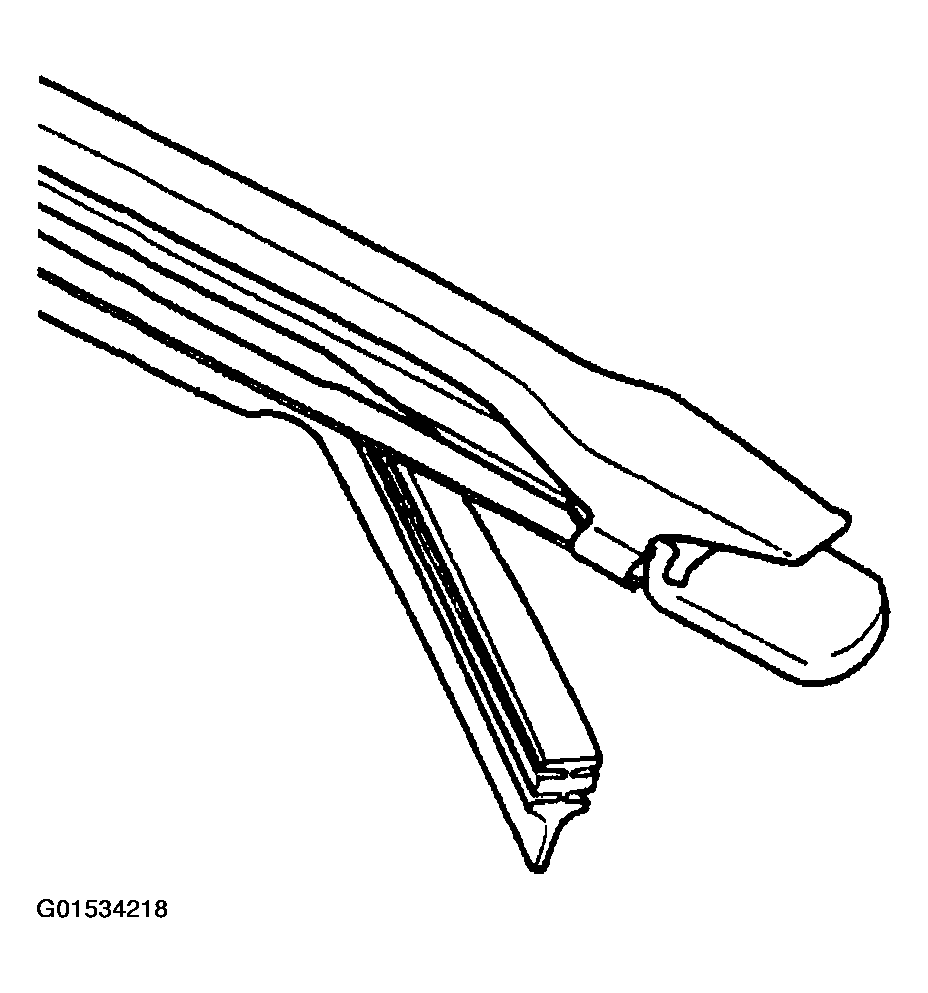

    Fig 1: Removing Rubber Wiper Element From Element Vertebra
    G01534218Courtesy of GENERAL MOTORS CORP.
  3. Remove the element vertebra and end cap from the wiper blade.
    Fig 2: Removing Element Vertebra And End Cap From Wiper Blade
    G01534219Courtesy of GENERAL MOTORS CORP.
