Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Remove the screws from the tail lamp.
  3. Pull the tail lamp from the body.
  4. Disconnect the electrical connector from the tail lamp.

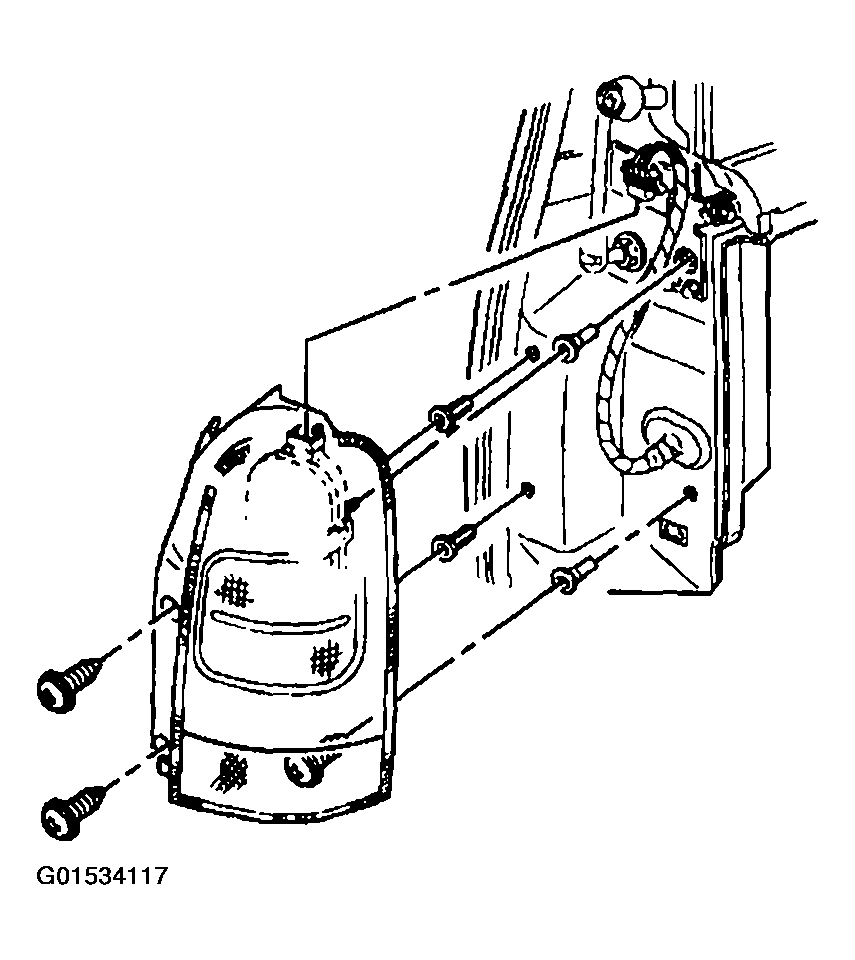

    Fig 1: Removing Tail Lamp From Body
    G01534117Courtesy of GENERAL MOTORS CORP.
  5. Press the tabs to release the circuit board from the tail lamp.

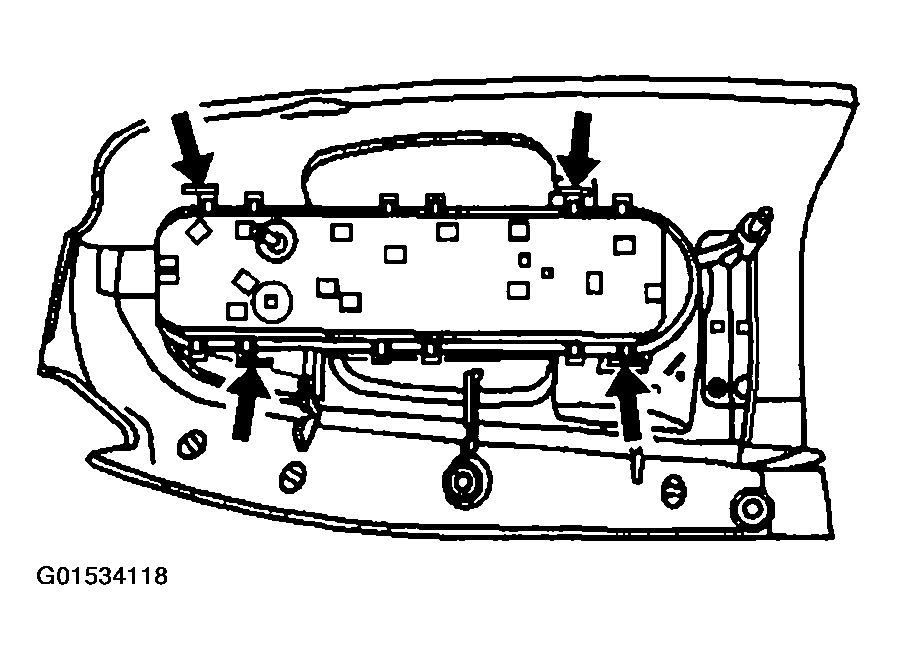

    Fig 2: Pressing Tabs To Release Circuit Board From Tail Lamp
    G01534118Courtesy of GENERAL MOTORS CORP.
  6. Remove the circuit board from the tail lamp.
  7. Remove the required bulbs from the sockets.

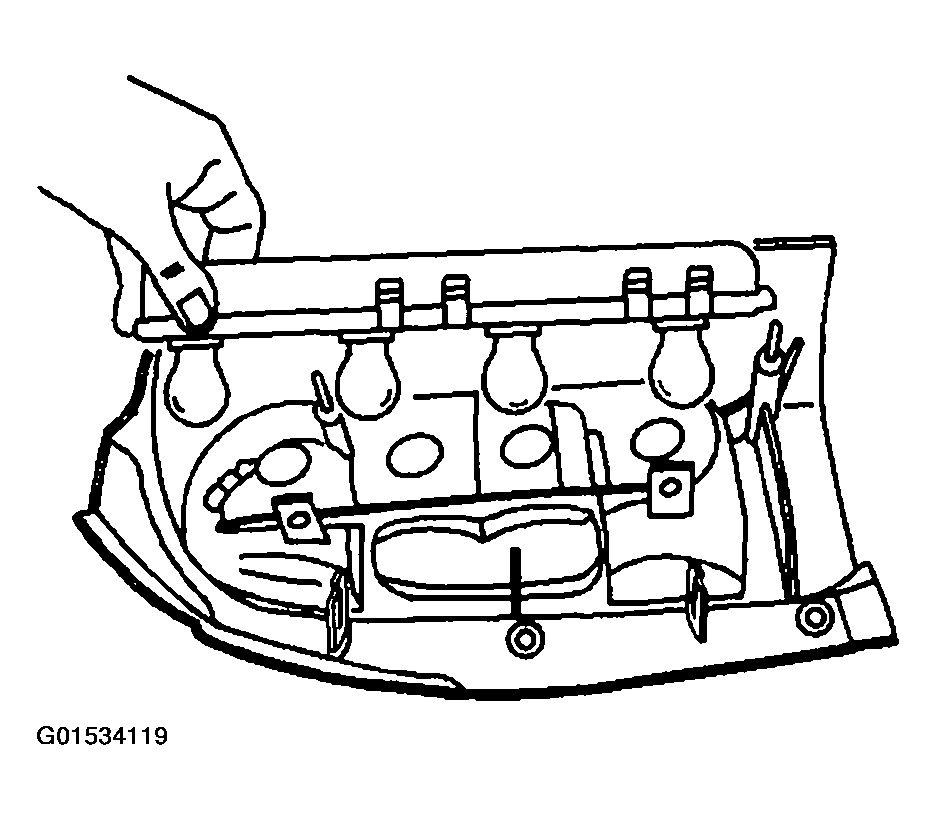

    Fig 3: Removing Tail Lamp Bulbs From Sockets
    G01534119Courtesy of GENERAL MOTORS CORP.
