Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a small, flat-bladed tool between the switch block/reading lamp housing and the overhead console.
  2. Press inward and down in order to release the switch block/reading lamp housing from the overhead console.

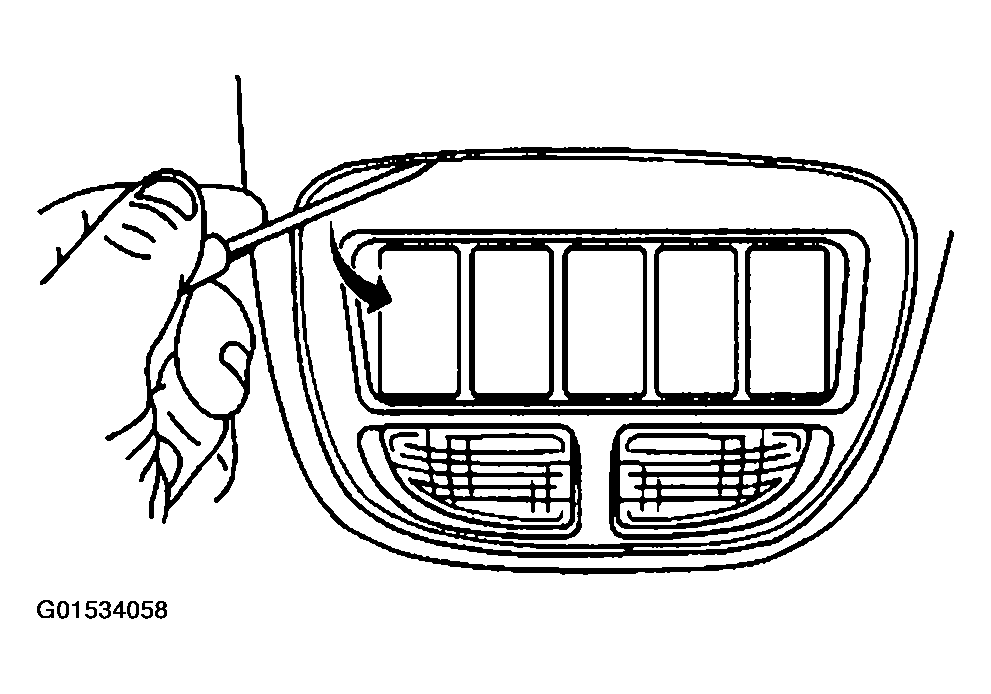

    Fig 1: Inserting Flat-Bladed Tool Between Switch Block/Reading Lamp Housing And Overhead Console
    G01534058Courtesy of GENERAL MOTORS CORP.
  3. Use a small, flat-bladed tool to push one of the tabs on the reading lamp socket to release the socket from the housing.

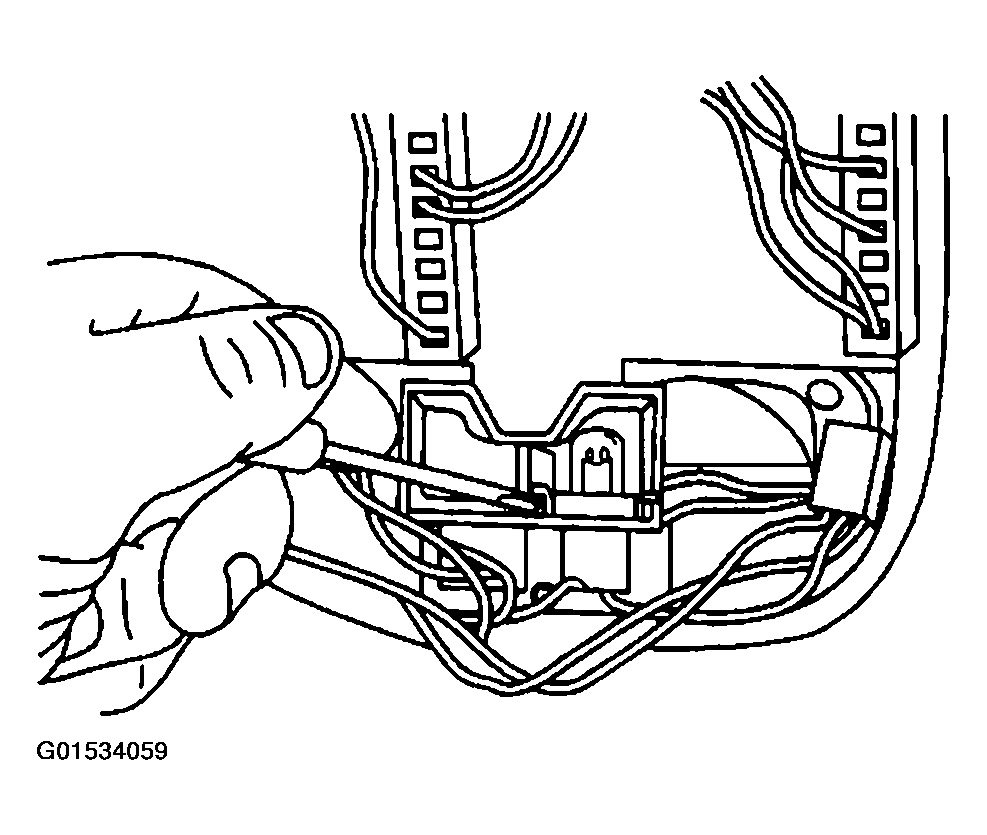

    Fig 2: Pressing Reading Lamp Socket Tab
    G01534059Courtesy of GENERAL MOTORS CORP.
  4. Remove the reading lamp socket from the housing.

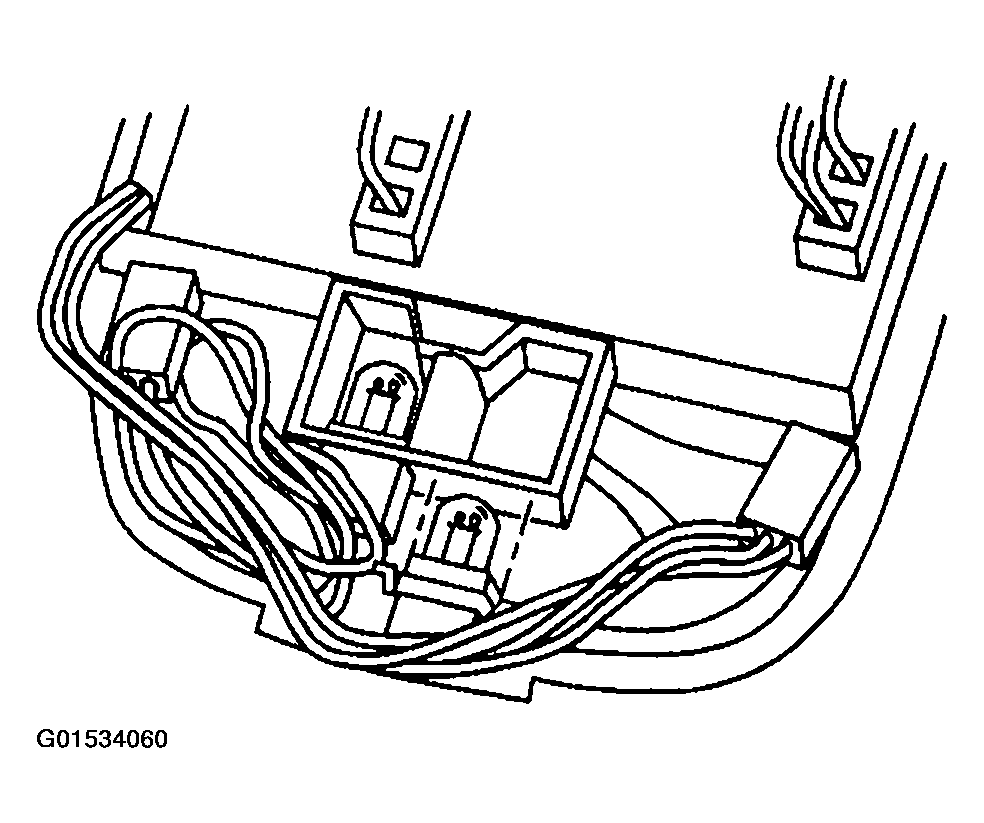

    Fig 3: Removing Reading Lamp Socket From Housing
    G01534060Courtesy of GENERAL MOTORS CORP.
  5. Pull the bulb from the socket.

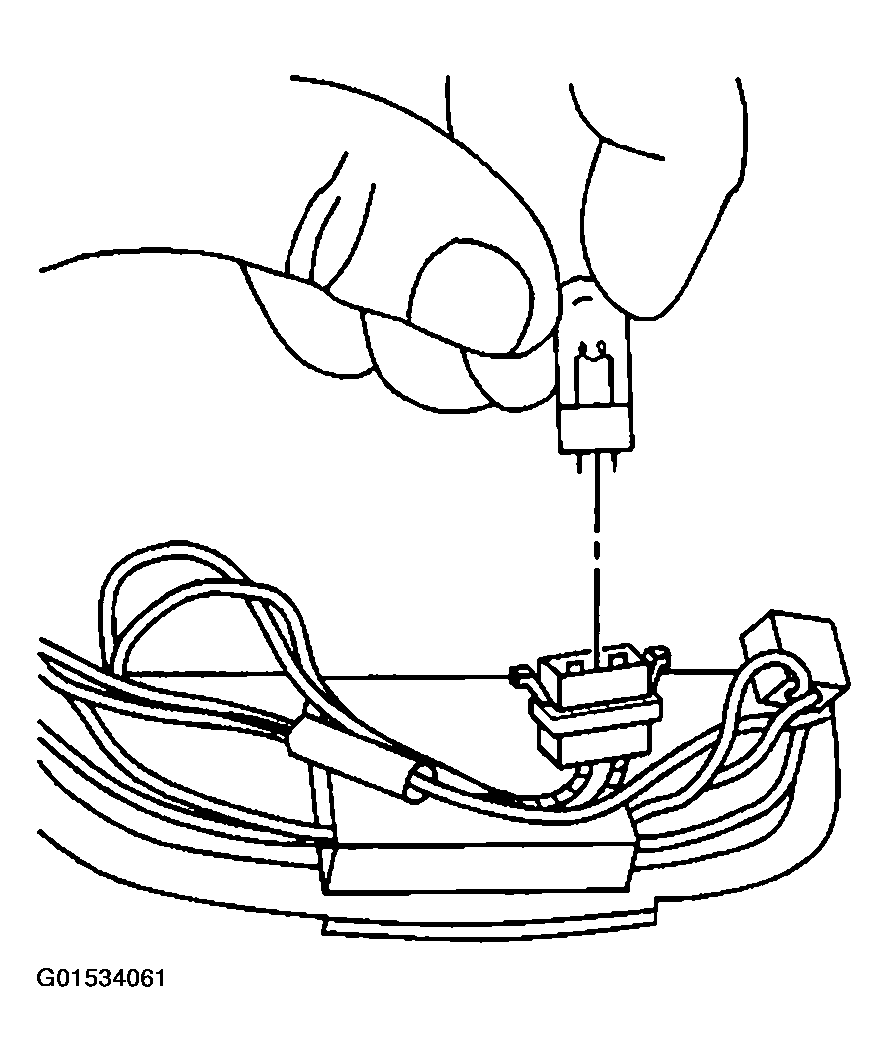

    Fig 4: Removing Bulb From Socket
    G01534061Courtesy of GENERAL MOTORS CORP.
